Application of the boundary element method for numerical modelling of the seismic hazard at Bambanani gold mine in South Africa





J. Gerberi^{I, III}; N. de Koker^I; Y Jooste^II

^IStellenbosch University, South Africa
^IIHarmony Gold Mine, South Africa
^IIIInstitute of Mine Seismology, South Africa

Correspondence





---

ABSTRACT

This paper presents a novel application of the boundary element method for numerical modelling of the seismic activity and hazard that is associated with the shaft pillar extraction at Bambanani mine in South Africa. In the numerical model, the tabular mining excavations are represented by displacement discontinuity elements, and to accommodate crush, shear, and fault slip seismic events, the numerical model is populated with additional displacement discontinuity elements that represent modelled crush- and shear-type failures in the rockmass. Crush-type failures are evaluated by applying the limit equilibrium method and a Hoek-Brown strength criterion, and shear-type failures are evaluated by applying a Coulomb-friction strength criteria to Ortlepp-shear and geological features. In this paper, the modelling results are presented as time history analyses of modelled potency from 1 January 2010 to 30 June 2022 and normalised exceedance rates for different mining periods using an upper-truncated power law. The normalised exceedance rates of seismic events that have moment magnitude Mw > 1.0 are lowest for the initial mining period (26 events per year) and highest for the final mining period (218 events per year). The relative errors of the modelled potency and normalised exceedance rates are typically less than 10% or 15%, which suggests that the modelling methodology is appropriate for medium- and longer-term forecasting of seismic activity and hazard, as presented in this paper. Shorter-term forecasting is not considered in this paper.

Keywords: mine seismology, numerical modelling, boundary element method, seismic hazard

---





Introduction

Seismic activity at underground mines is typically associated with fault slip seismic events that occur on geological features and are similar to crustal earthquakes; shear events that occur on stress-induced shear fractures or shear ruptures, e.g., Ortlepp-shear features at the deep gold mines in South Africa (Van Aswegen, 2008), and crush events that occur as stress fracturing or strain bursting in the rockmass that surrounds the mining excavations (Malovichko, 2020; Van Aswegen, 2021a,b; Malovichko, 2022). From 1 January 2020 to 31 December 2024, the underground seismic systems monitored by the Institute of Mine Seismology (IMS) recorded approximately 1.8 million seismic events that have moment magnitude -1.0 < Mw < 4.0 at fourteen gold mines in the Witwatersrand Basin (Hanks, Kanamori, 1979; Handley, 2004; Tucker et al., 2016; Frimmel, 2019), including 180,834 events that have Mw > 0.0, 19,011 events that have Mw > 1.0, 1,017 events that have Mw > 2.0 and 17 events that have Mw > 3.0. The largest seismic event has moment magnitude Mw = 3.4 and occurred on 16 March 2020 in the Carletonville gold field and the second and third largest events have Mw = 3.3 and occurred on 10 February 2020 and 6 February 2022 in the Carletonville and Klerksdorp gold fields, respectively. Generally, the deep gold mines that extract the tabular orebodies in the Witwatersrand Basin are considered to have significantly higher seismic hazard and therefore higher risk of injuries and fatalities from seismic events than the shallower mines in other regions and countries that have comparably lower seismic hazard and risk. From 1 January 2020 to 31 December 2024, 3,119 injuries and 102 fatalities occurred in the South African gold mining industry (Mthenjane, 2025).

In crustal seismology, prediction of earthquakes is typically described as "extremely difficult" and "effectively impossible" (Kagan, 1997; Geller, 1997) and in mine seismology, short-term forecasting of seismic events using time history analyses is similarly described as "not sufficient" or "not viable" for mitigating the above-mentioned risk of injuries and fatalities Van Aswegen, 2003, 2005; Spottiswoode, 2009, 2010). Until seismic monitoring is considered to have predictive power (Kagan, 1999), numerical modelling applications are probably the primary defenses against the devastations of rockbursts, and therefore Salamon proposed the development of a modelling methodology that accommodates "realistic approximations of the source mechanisms" and facilitates "assessment of the relative hazardousness of various geological environments" (Salamon, 1993; Linkov, 1997, 2002, 2006, 2013; Linkov et al., 2015, 2016). This paper summarises the development of an appropriate and novel modelling methodology for mediumand longer-term forecasting of seismic activity and hazard and presents an application at a South African tabular orebody mine, i.e., the shaft pillar extraction at Bambanani mine in the Welkom gold field (Motsepe et al., 2021; Jooste, 2025). Figure 1 shows a schematic diagram of the Witwatersrand Basin (left) and photographs of underground damage at Bambanani mine (right). The gold fields in the Witwatersrand Basin are shown as yellow regions and the Carletonville, Klerksdorp, and Welkom gold fields are indicated by blue, green, and red dots, respectively (Jolley et al., 2007). The underground photographs correspond to a crush seismic event that has moment magnitude Mw = 1.6 and occurred on 11 October 2021 (Van der Wath et al., 2022).



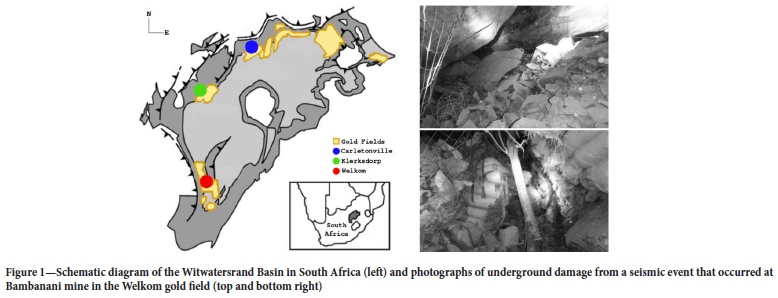

Seismic monitoring

Source time and location

For a seismic event in this paper, the source time and location are calculated by minimising the travel time residual for the primary and secondary body waves (hereinafter referred to as P- and S-waves, respectively) recorded by a collection of seismic sensors (Salamon, Weibols, 1972; Gibowicz, Kijko, 1994b; Mendecki, Sciocatti, 1997; Mendecki et al., 1999b; Andersen et al., 2002):

where t₀ is the source time of the seismic event, w₀ = {w₀,x,w₀,y,w₀,_z)) is the source location vector, Ψ(to, w₀) is the travel time residual, Ngs is the number of seismic sensors, t_P,n is the arrival time of the P-wave recorded by the sensor with index n < Ngs, ts,n is the arrival time of the S-wave, (t_B,n - t₀ ), and (ts,n - to) is the travel time of the P- and S-wave respectively, V_P,n and Vs,n are the corresponding P- and S-wave velocities, and D( w₀) is the distance from the source location to the sensor. The IMS seismic system at Bambanani mine consists of ten geophone sensors (Bredenkamp et al., 2013), and the average P- and S-wave velocities are approximately V_P = 5300 m / s and Vs = 3550 m/s, respectively.



Source size and scalar potency

In crustal seismology, the source size of a fault slip seismic event is typically expressed using scalar potency or moment, which are calculated by integrating the fault deformation over the slip surface, expressed in Equation 2 (Kanamori, 1977; King, 1978; Ben-Menahem, Singh, 1981; Ben-Zion, Zhu, 2002):

where P is the scalar potency of the fault slip event, u(x,y) is the fault deformation on the slip surface, A₀ is the source area, M is the corresponding scalar moment, L is the average source length, γ is Young's Modulus, ν is Poisson's Ratio, and Δ σ is the average stress drop (Eshelby, 1957). For the Bambanani mine, Young's Modulus is γ = 70GPa, Poisson's Ratio is υ = 0.20, and the average stress drop is Δ σ =1MPa. Figure 2 shows a schematic diagram of a fault slip event. The fault deformation on slip surface is indicated by black arrows, the positive and negative subsurfaces are shown as red and blue regions, respectively, and the source area of the event is shown as a grey region.





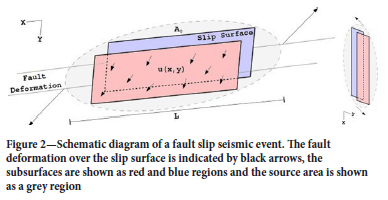

In this paper, scalar potency is calculated by constructing the displacement spectra of the P- and S-waves recorded by the IMS seismic system at Bambanani mine (Aki, Richards, 1980; Gibowicz, Kijko, 1994a; Mendecki, Niewiadomski, 1997; Mendecki et al., 1999a):

where V_P and V_s are the average P- and S-wave velocities, respectively, R_p = 0.55, and R_s = 0.63 are the corresponding radiation pattern factors, Ω_P and Ω_s are evaluated by fitting

to the displacement spectra of the P- and S-waves, Ω is the spectral amplitude, f is the spectral frequency, f₀ is the corner frequency, and γ and η are the spectral shape parameters (Brune, 1970; Boatwright, 1980).



Local magnitude and radiated energy

In mine seismology, the combined intensity of a seismic event is sometimes expressed using local magnitude, which is calculated by combining the logarithm of scalar potency as an indicator of the source size and the logarithm of radiated energy as an indicator of the body wave amplitudes (Butler, 1992; Burrows, Ebrahim-Trollope, 2004; Stankiewicz, Essrich, 2004; Mendecki, 2013):

where mL is the local magnitude of the seismic event, logP is the logarithm of scalar potency, logE is the logarithm of radiated energy, and mp, mE and m0 are the local magnitude parameters. The local magnitude parameters for Bambanani mine are mp = 0.516, mE = 0.344, and m0 = -1.144 (Butler, Van Aswegen, 1993; Stankiewicz, Essrich, 2004; Ebrahim-Trollope et al., 2013). For a seismic event in this paper, radiated energy and local magnitude are calculated by assuming a simple relationship between the logarithms of scalar potency and radiated energy (logE = EplogP + E0):

where E is the radiated energy of the seismic event, and Ep and E0 are the radiated energy parameters. The radiated energy parameters for Bambanani mine are Ep = 1.0, and E0 = 5.5. Table 1 summarises the relationship between the logarithms of scalar potency and radiated energy, average source length, moment magnitude (Mw = 0.667logp + 0.95), and local magnitude (mp = 0.860logp + 0.748).



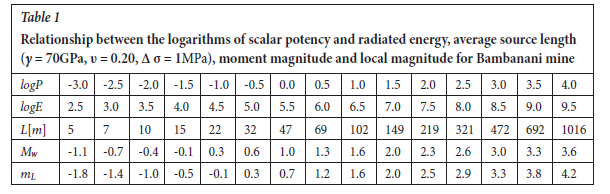

Seismic activity and hazard

Seismic activity

In this paper, seismic events supplied by Harmony Gold Mining Company (Jooste, 2023) are considered for different mining periods that are associated with the shaft pillar extraction at Bambanani mine (hereinafter referred to as BAM_10-13, BAM_14-16, BAM_17-19, BAM_20-22, and BAM_ALL). BAM_10-13 spans 1,461 days or 4 years from 1 January 2010 to 31 December 2013 and contains 6207 seismic events that have scalar potency logP > -2.0 and local magnitude mL > -1.0; BAM_14-16 spans 1,096 days or 3 years from 1 January 2014 to 31 December 2016 and contains 13290 seismic events; BAM_17-19 similarly spans 1,095 days from 1 January 2017 to 31 December 2019 and contains 13,714 seismic events; BAM_20-22 spans 943 days or 2.6 years from 1 January 2020 to 30 June 2022 and contains 12,368 seismic events; and BAM_ALL spans 4,595 days or 12.6 years from 1 January 2010 to 30 June 2022.

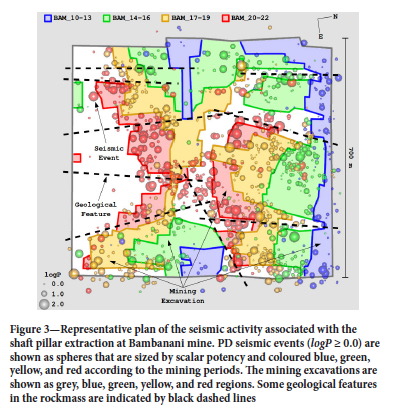

Figure 3 shows a representative plan of the seismic activity that is associated with the shaft pillar extraction at Bambanani mine. Potentially damaging (PD) seismic events that have scalar potency logP > 0.0 and local magnitude mL > 0.7 are indicated by spheres that are sized by scalar potency and coloured according to the different mining periods such that the blue, green, yellow, and red spheres correspond to BAM_10-13, BAM_14-16, BAM_17-19, and BAM_20-22, respectively. The initial mining excavations of the shaft pillar extraction are shown as grey regions, and the final mining excavations are shown as blue, green, yellow, and red regions that similarly correspond to the mining periods. Some geological features in the rockmass are indicated by black dashed lines.

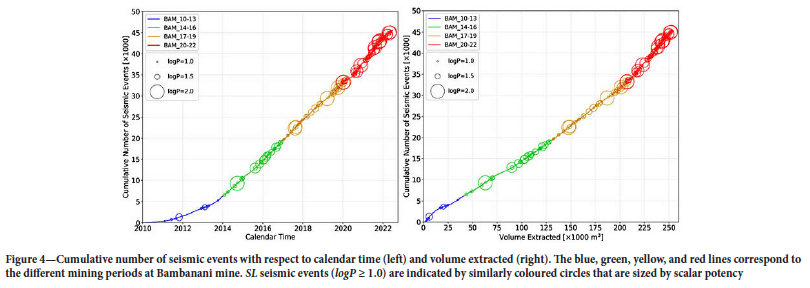

Figure 4 shows the cumulative number of seismic events recorded by the IMS seismic system at Bambanani mine with respect to calendar time (left) and volume extracted (right) such that the blue, green, yellow, and red lines correspond to BAM_10-13, BAM_14-16, BAM_17-19, and BAM_20-22 respectively. Significantly large (SL) seismic events that have scalar potency logP > 1.0 and local magnitude mL > 1.6 are indicated by circles that are sized by scalar potency and similarly coloured according to the different mining periods of the shaft pillar extraction. BAM_10-13 contains 14 SL and 132 PD seismic events; BAM_14-16 contains 39 SL and 326 PD events including the largest event that has logP = 2.3 and mL = 2.7 and occurred on 19 September 2014; BAM_17-19 contains 60 SL and 379 PD events; and BAM_20-22 contains 97 SL and 392 PD events including the second and third largest events that have logP = 2.2 and mL = 2.6 and occurred on 22 October 2021 and 22 November 2020, respectively.



Seismic hazard

In mine seismology, seismic hazard is typically expressed as an exceedance probability (Pr), which is calculated by assuming that the source times of seismic events are Poissonian (Kijko, Funk, 1994; Du Toit, Mendecki, 2007) and the source sizes are represented by an upper-truncated power law (Gutenberg, Richter, 1944; Gibowicz, Kijko, 1994c; Burroughs, Tebbens, 2001, 2002; Christensen et al., 2002; Kagan, 2010; Kwiatek et al., 2010; Mendecki, 2012, 2016b):

where Pr (> logQ) is the exceedance probability of a seismic event that has scalar potency, logP > logQ, logQ is the logarithm of scalar potency that corresponds to the exceedance threshold, Ne is the expected number of events that is evaluated by fitting an upper-truncated power law Ne (> logQ) = a[10^-βlogQ - 10^-βlogPmax] to the recorded number of events, Pmax is the maximum scalar potency of the next record-breaking (RB) seismic event, and α and β are the power-law parameters. In this paper, the maximum scalar potency is estimated using the trend of previous RB seismic events (Chandler, 1952; Robson, Whitlock, 1964; Cooke, 1979; Mendecki, 2016a), and for Bambanani mine, the maximum scalar potency is logP_max = 2.5. The power-law parameters are loga = 3.15 and β = 0.765.

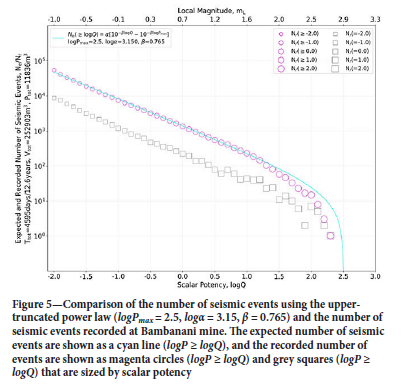

Figure 5 shows a comparison of the expected number of seismic events using the upper-truncated power law for BAM_ALL and the number of events recorded by the IMS seismic system at Bambanani mine. The expected number of seismic events that have scalar potency logP > logQ is shown as a cyan line, and the recorded number of events that have logP > logQ and logP = logQ are, respectively, shown as magenta circles and grey squares that are sized by scalar potency. The number of SL and PD seismic events are appropriately represented by the upper-truncated power law, e.g., the expected number of events are N_e (> 1.0) = 225 and Ne (> 0.0) = 1395, respectively, the recorded number of events are N_r (> 1.0) = 230 and Nr (> 0.0) = 1357, respectively, and therefore the corresponding relative errors are |Ne (> 1.0) - Nr (> 1.0)|N_r (> 1.0) = 0.03 and |Ne (> 0.0) - Nr (>0.0)|/ Nr (>0.0) = 0.02, respectively.





In this paper, seismic hazard is expressed as a simple exceedance rate (Er), which is calculated by scaling the expected number of seismic events using the scalar potency for the different mining periods that are associated with the shaft pillar extraction, i.e., BAM_10-13, BAM_14-16, BAM_17-19, BAM_20-22, and BAM_ ALL, and normalising the time span and volume extracted to some reference period:

where Er (> logQ) is the exceedance rate of a seismic event that has scalar potency logP > logQ, T_mp and T_ref is the time span for the mining period and reference period, respectively, V_mp and V_ref are the corresponding volume extracted, Np (> logP) is the scaled number of seismic events using scalar potency, P_mp is the scalar potency for the mining period, and P_tot is the total scalar potency of seismic events recorded by the IMS seismic system at Bambanani mine. In this paper, the time span and volume extracted for the reference period is T_ref = 60 days and V_ref = 3300m3, respectively, and the total scalar potency for BAM_ALL is P_tot = 11836m³. Table 2 summarises the scalar potency of seismic events, time span and volume extracted for the mining periods of the shaft pillar extraction at Bambanani Mine.

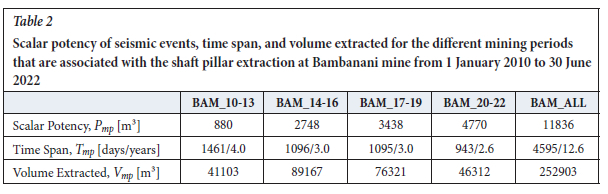

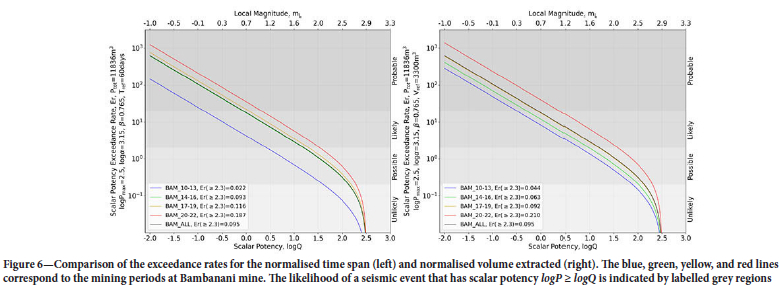

Figure 6 shows a comparison of the exceedance rates for the normalised time span (left) and normalised volume extracted (right) such that the blue, green, yellow, red, and black lines correspond to BAM_10-13, BAM_14-16, BAM_17-19, BAM_20-22, and BAM_ALL, respectively. The likelihood of a seismic event that has scalar potency logP > logQ (similar to exceedance probability, Pr = 1 - exp [-Er]) is indicated by labelled grey regions and described as "unlikely", "possible", "likely", or "probable", i.e., ErT /Erv (> logQ)<0.2 is described as "unlikely", 0.2 < ErT /Erv (> logQ)<2.0 is described as "possible", 2.0 < ErT /Erv (> logQ)<10.0 is described as "likely", and ErT /Erv (> logQ)>10.0 is described as "probable". The exceedance rates of PD and SL seismic events for the normalised volume extracted are lowest for BAM_10-13 and BAM_14-16, i.e., 8.3 < Erv (>0.0) < 12.0 and 1.3 < Erv (>1.0)<1.9, respectively; the exceedance rates are highest for BAM_20-22, i.e., Erv (>0.0) = 40.1 and Erv (>1.0) = 6.5, respectively; and the exceedance rates for BAM_17-19 are higher than those for BAM_10-13 and BAM_14-16 and lower than those for BAM_20-22, i.e., Erv (>0.0) = 17.5 and Erv (>1.0) = 2.8, respectively. The exceedance rates for the mining periods of the shaft pillar extraction suggest an increasing trend in the seismic hazard at Bambanani mine, particularly with respect to RB seismic events that have scalar potency logP > 2.3 and local magnitude mL > 2.7 and are described as "unlikely" for the initial mining period and "possible" for the final mining period. The exceedance rates for the normalised time span suggest a similar increasing trend in the seismic hazard.



Numerical modelling

Boundary element method

In the South African gold mining industry, numerical modelling of underground mining excavations is typically performed by applying the Boundary Element Method (BEM) and solving the elasticity equations that correspond to displacement discontinuity (DD) or fictitious force (FF) elements (Salamon, 1964; Starfield, Crouch, 1973; Crouch, 1976a, 1976b; Banerjee, Butterfield, 1981; Crouch, Starfield, 1983; Brebbia, 1984; Napier, Stephansen, 1987; Ryder et al., 1999; Ryder, Malan, 2002). In this paper, the tabular mining excavations at Bambanani mine are approximated using planar surfaces and therefore represented by DD elements in the corresponding BEM model (hereinafter referred to as the DD-BEM model, non-tabular mining excavations are typically represented by FF elements). Figure 7 shows a schematic diagram of a DD element and DD vector u = (u_x,u_y,u_z) that represent planar deformation in the local co-ordinate system of the DD surface, i.e., u_x and u_y correspond to shear-type deformation in the XY plane (left and middle, sometimes referred to as ride in the X and Y direction, respectively, similar to fault deformation of a fault slip seismic event), and u_z corresponds to normal-type deformation along the Z axis (right, sometimes referred to as convergence). The planar deformation on the DD surface is indicated by black arrows and the positive and negative subsurfaces with respect to the orientation of the XY plane and Z axis are shown as yellow and green regions, respectively.

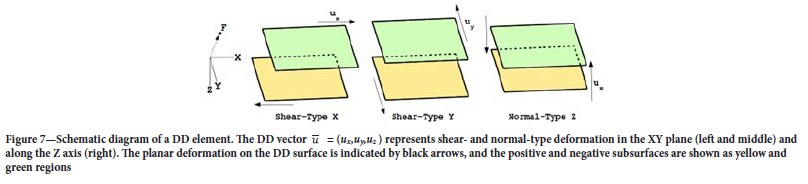

In the DD-BEM model for Bambanani mine, the DD vectors are evaluated by solving the elasticity equations that correspond to a collection of DD elements and satisfy the virgin stress boundary conditions, and the combined stress field is constructed by calculating the induced stress kernels for a collection of points in the rockmass (hereinafter referred to as field points) and combining the induced stress field from the DD elements that represent the mining excavations and the virgin stress field:

where Nde is the number of DD elements, Nfp is the number of field points, S_i^k_j is the combined stress tensor for the field point with index k < N_FP in the global co-ordinate system, and are the induced stress kernels for the DD element with index h < Nde, uh = (u_h,x,U_h,y,U_h,z) is the corresponding DD vector that satisfies the virgin stress boundary condition b_h = -P^h_z v_ijn_h,P^h_z and n_h are the depth and unit normal vector of the DD element, respectively V_ij is the virgin stress tensor per unit depth and p^k_z is the depth of the field point. For Bambanani mine, the average depth is pz = 2050m and the virgin stress tensor is Vzz = pg = 0.026988 MPa/m and Vxx = V_yy = vzz / 2=0.013494 MPa / m, where ρ = 2750fc g/m³ is the density of the rockmass and g = 9.81 is gravitational acceleration. The normal- and shear-type stress for a field point that is associated with a planar surface in the DD-BEM model is calculated by transforming the combined stress tensor to a traction vector:

where S^k_nt and S^k_st is the normal- and shear-type stress, respectively S^k_ct = S^k_ijn_k is the combined traction vector for the field point with index k < Nfp, and n_k is the unit normal vector for the planar surface.



Modelled crush- and shear-type failures

Modelled crush-type failures

To accommodate crush seismic events at Bambanani mine, the DD-BEM model is populated with field points and additional DD elements that are constructed from the tabular orebody that surrounds the mining excavations and represent modelled crush-type failures in the rockmass. In this paper, the tabular orebody is approximated using planar surfaces (similar to tabular mining excavations) and the corresponding crush-type field points are evaluated using an excess normal stress (ENS) threshold, which is calculated by applying the limit equilibrium method (LEM) and a peak Hoek-Brown strength criterion (Hoek, Brown, 1980; Barron, 1984; Barron, Pen, 1992; Hoek, Marinos, 2007; Napier, Malan, 2007, 2011, 2012; Ilchev, 2013a, 2013b; Napier, Malan, 2014, 2018, 2021):

where τ_n0 is the peak normal-type strength, S^k_nt is the normal-type stress for the crush-type field point and additional DD element with index k < Nfp, τ_c0 is the peak uniaxial compressive strength of the rockmass, r₀ and q₀ are the peak Hoek-Brown strength parameters, and S_le is the transverse-type stress from the LEM. For a crush-type field point that exceeds the ENS threshold and therefore has ENS > 0, the boundary condition of the additional DD element is modified to accommodate the residual strength of the modelled crush-type failure and the corresponding crush-type deformation in the DD-BEM model for Bambanani mine (similar to convergence of mining excavations):

where τ_n1 is the residual normal-type strength, τ_c1 is the residual uniaxial compressive strength, and r₁ and are the residual Hoek-Brown strength parameters. The DD vectors of the additional DD elements are iteratively evaluated by solving the elasticity equations that satisfy the residual strength boundary conditions until all crush-type field points have ENS < 0. For the crush-type field points in the paper, the peak and residual uniaxial compressive strength of the rockmass is τ_c0 = 200MPa and τ_c1 = 20MPa, respectively, the peak Hoek-Brown strength parameters are r₀ = 4.0 and q₀ = 0.02, and the residual Hoek-Brown strength parameters r₁ = 1.5 and = 0.02 (Ryder, Jager, 2002).



Modelled shear-type failures

To accommodate shear and fault slip seismic events, the DD-BEM model for Bambanani mine is similarly populated with field points and additional DD elements that represent modelled shear-type failures in the rockmass and are evaluated using excess shear stress (ESS) thresholds, which are calculated by applying a simple Coulomb-friction strength criteria (Ryder, 1987; Napier, 1987; Spottiswoode, 1988; Ryder, 1988; Jager, Ryder, 1999a; Ryder et al., 2002):

where τ_s0 is the peak shear-type strength for the peak ESS threshold, τ_s1 is the residual shear-type strength for the residual ESS threshold, s^k_st is the shear-type stress for the shear-type field point and additional DD element with index k <Nfp, S^k_nt. is the corresponding normal-type stress, and Co are the peak friction angle and peak cohesion, respectively, and φ₁ and C₁ are the residual friction angle and residual cohesion, respectively. In this paper, the shear-type field points are constructed from the planar surfaces of Ortlepp-shear features that surround the mining excavations and correspond to the orientation of maximum ESS (Gay, Ortlepp, 1979; Ortlepp et al., 1997; Ortlepp, 2000; Ortlepp et al., 2005; Van Aswegen, Stander, 2012; Van Aswegen, 2013) and geological features that are approximated using additional planar surfaces that correspond to the digitised faults supplied by Harmony Gold Mining Company. For Ortlepp-shear features in this paper, the peak and residual friction angle is φ₀ = φ₁ = 30° and the peak and residual cohesion is C_0c = 20MPa and C₁ = 0MPa, respectively, and for geological features in the rockmass, the peak friction angle is φ₀ = 25°, the residual friction angle is φ1 = 20°, and the peak and residual cohesion is C₀ = 10MPa and C1 = 0MPa, respectively (Bieniawski, 1967; Byerlee, 1978; Jager, Ryder, 1999b; Ryder, 2002 James et al., 2007; Hofmann, Scheepers, 2011; Hofmann et al., 2013; Van Aswegen, 2020; Hofmann, 2024).

For a shear-type field point or modelled shear-type failure that exceeds the ESS thresholds in the DD-BEM model and therefore has peak ESS > 0 or residual ESS > 0, the DD vector of the additional DD element is iteratively modified to accommodate the corresponding shear-type deformation (similar to ride of mining excavations) until all shear-type field points have peak ESS < 0 and all shear-type failures have residual ESS < 0. Figure 8 shows the modelled shear-type failures that are associated with the different mining periods of the shaft pillar extraction at Bambanani mine, i.e., BAM_10-13, BAM_14-16, BAM_17-19, and BAM_20-22 (from top left to bottom right). The black-to-white contours indicate the cumulative shear-type deformation on the DD surfaces of the additional DD elements that represent the Ortlepp-shear and geological features in the DD-BEM model. The initial mining excavations are shown as grey regions and the final mining excavations are shown as blue, green, yellow, and red regions that correspond to BAM_10-13, BAM_14-16, BAM_17-19, and BAM_20-22, respectively.



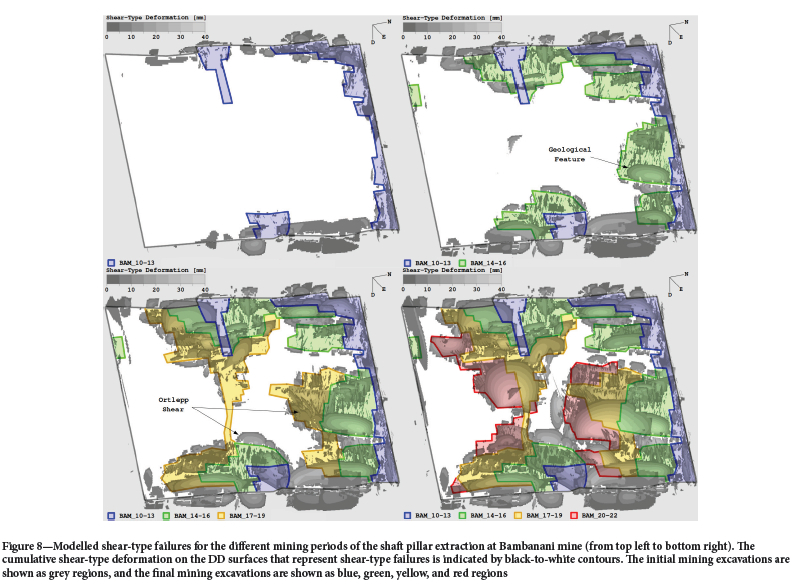

Modelled potency and hazard

In the DD-BEM model for Bambanani mine, the planar size of a modelled crush- or shear-type failure is expressed using modelled potency, which is calculated by integrating the planar deformation over the DD surface of the additional DD element (similar to scalar potency of a fault slip seismic event):

where P'_k is the modelled potency of the additional DD element with index k < Nfp that represents a modelled crush- or shear-type failure in the DD-BEM model, u_k(x,y) = u_k = (u_k,x, u_k,y, u_k,z) is the corresponding DD vector, n_k is the unit normal vector, and A_k is the planar area of the DD surface.

In this paper, the modelled hazard is expressed as an exceedance rate (Er'), which is calculated by scaling the expected number of seismic events using the modelled potency of the crush- and shear-type failures that exceed the ENS and ESS thresholds in the DD-BEM model for Bambanani mine and normalising the time span and volume extracted for the different mining periods of the shaft pillar extraction to some reference period (similar to the seismic hazard using scalar potency):

where Er (> logQ) is the exceedance rate of a seismic event that has scalar potency logP > logQ, T_mp is the time span for the mining period, T_ref = 60 days is the time span for the reference period, V_mp and V_ref = 3300m³ are the corresponding volume extracted for the mining period and reference period, respectively, N'_P(> logQ) is the scaled number of seismic events using the modelled potency of the crush- and shear-type failures, N_e(> logQ) =a[10^-βlogQ - 10^-βlogPmax] is the expected number of seismic events using the upper-truncated power law, P_tot = 11836 is the total scalar potency, P_max = 2.5 is the maximum scalar potency of the next RB seismic event, loga = 3.15 and β = 0.765 are the power-law parameters, P'_mp is the modelled potency for the mining period, Nfp is the number of field points, P'_k+ is the final modelled potency of a crush- or shear-type failure that corresponds to the additional DD element with index k < Nfp, and P'_k- is the initial modelled potency.



Modelling results

In the DD-BEM model for Bambanani mine, the tabular mining excavations are subdivided according to a collection of digitised mining steps supplied by Harmony Gold Mining Company (Van Der Wath, 2023); the modelled potency of the crush- and shear-type failures is calculated for the corresponding mining steps; and the modelled hazard is calculated for the different mining periods that are associated with the shaft pillar extraction, i.e., BAM_10-13, BAM_14-16, BAM_17-19, BAM_20-22, and BAM_ALL. The DD-BEM model has 150 subdivided mining steps that correspond to the calendar months from 1 January 2010 to 30 June 2022, i.e., BAM_10-13 contains 48 mining steps that correspond to the calendar months from 1 January 2010 to 31 December 2013; BAM_14-16 and BAM_16-19 contain 36 mining steps from 1 January 2014 to 31 December 2016 and from 1 January 2017 to 31 December 2019, respectively; and BAM_19-22 contains 30 mining steps from 1 January 2020 to 30 June 2022. The tabular mining excavations at Bambanani mine typically strike northwards, dip eastwards at approximately 20° and are represented by 250 thousand DD elements that have 1 x 1 m, 2 x 2 m, 4 x 4 m, and 8 m χ 8 m dimensions. To accommodate modelled crush-type failures, the tabular orebody that surrounds the mining excavations is represented by an additional 150 thousand DD elements that have 2 m x 2 m dimensions, and to accommodate modelled shear-type failures, the Ortlepp-shear and geological features are represented by an additional 400,000 DD elements that have 4 m χ 4 m dimensions. The faults at Bambanani mine typically strike southwards and dip westwards at approximately 70°.

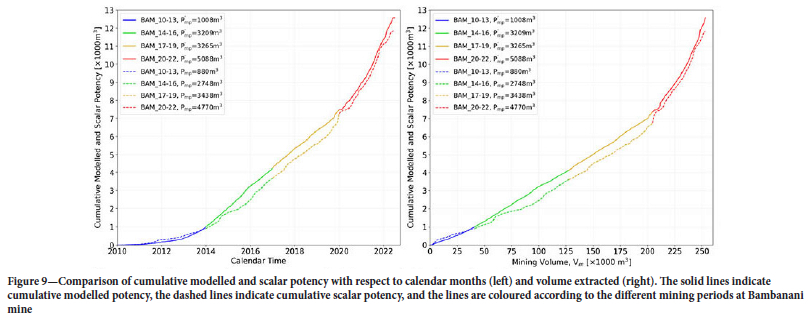

Figure 9 shows a comparison of the cumulative modelled potency and cumulative scalar potency with respect to calendar time (left) and volume extracted (right) such that the blue, green, yellow, and red lines correspond to BAM_10-13, BAM_14-16, BAM_17-19, and BAM_20-22, respectively. The solid lines indicate the cumulative modelled potency of the additional DD elements that represent modelled crush- and shear-type failures in the DD-BEM model, and the dashed lines indicate the cumulative scalar potency of seismic events recorded by the IMS seismic system at Bambanani mine. Table 3 summarises the modelled potency, scalar potency, time span, and volume extracted for the mining periods that are associated with the shaft pillar extraction. Figure 10 shows a comparison of the modelled potency and scalar potency exceedance rates for the normalised time span (left) and normalised volume extracted (right) such that the blue, green, yellow, red, and black lines correspond to BAM_10-13, BAM_14-16, BAM_17-19, BAM_20-22, and BAM_ALL, respectively. The solid lines indicate the exceedance rates using the modelled potency of the crush- and shear-type failures that exceed the ENS and ESS thresholds in the DD-BEM model for Bambanani mine, and the dashed lines indicate the corresponding exceedance rates using the scalar potency of seismic events. The likelihood of a seismic event that has scalar potency logP > logQ, is indicated by labelled grey regions and described as "unlikely", "possible", "likely" or "probable", e.g., 0.2 < Er'_T/Er'_v (> logQ) < 2.0 is described as "possible", and Er'_T/Er'v, (> logQ) > 10.0 is described as "probable".

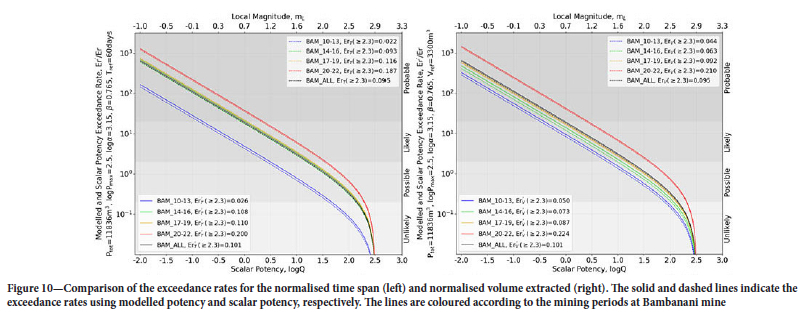

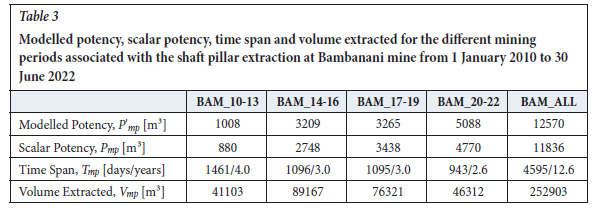

The modelled hazard is a reasonably accurate estimation of the seismic hazard for the different mining periods of the shaft pillar extraction at Bamabanani mine. The modelled potency of the crush- and shear-type failures overestimates the scalar potency of seismic events for BAM-10-13, BAM_14-16, and BAM_20-22, i.e., the modelled potency is P'mp = 1008m', 3209m', and 5088m', respectively; the scalar potency is P'mp = 880m', 2748m', and 4770m', respectively; and the relative error is [P'mp- Pmp]lP'mp= 0.12, 0.14, and 0.06, respectively. The modelled potency underestimates the scalar potency for BAM_17-19, i.e., the modelled potency is P'mp = 3265m', the scalar potency is P'mp = 3438m³, and the relative error [P'mp -Pmp ]/P'mp = -0.05. The modelled potency exceedance rates similarly overestimate and underestimate the scalar potency exceedance rates. The modelled potency exceedance rates of PD and SL seismic events are lowest for BAM_10-13, i.e., Er'v (>0.0) = 9.5 and Er'v (>1.0) = 1.5, respectively; the exceedance rates are highest for BAM_20-22, i.e., Er'v (>0.0) = 42.8 and Er'v, (>1.0) = 6.9, respectively; and the exceedance rates for BAM_14-16 and BAM_17-19 are higher than those for BAM_10-13 and lower than those for BAM_20-22, i.e., 14.0 < Er'v (>0.0) <16.6 and 2.3 < Er'v (>1.0)<2.7, respectively.

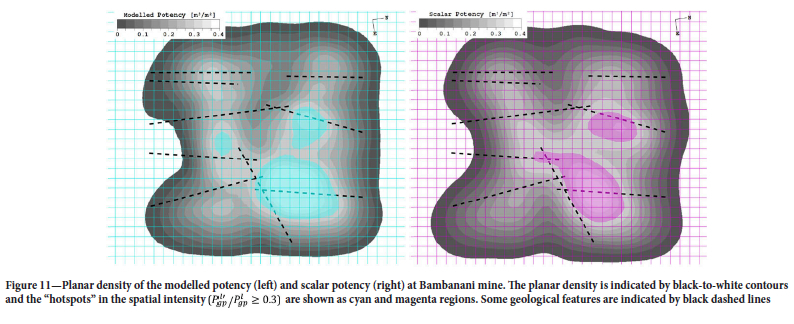

In the DD-BEM model for Bambanani mine, the spatial intensity of the modelled potency is expressed as a planar density, which is calculated by radially filtering the modelled crush- and shear-type failures that exceed the ENS and ESS thresholds according to a collection of grid points:

where N_gp is the number of grid points, p^l'_gp is the planar density of the modelled potency for the grid point with index l < N_gp, N_fp is the number of field points, P'_k+ is the final modelled potency of the additional DD element with index k < N_fp that represents a modelled crush- or shear-type failure in the DD-BEM model, P'_k- is the initial modelled potency, w_k = (w_k,x, w_k,y, w_k,z) is the corresponding DD location vector, x(w_k) is the gridding factor, D(w_k) is the distance from the additional DD element to the grid point, and R = 100 m is the gridding radius. The spatial intensity of the scalar potency is similarly calculated by radially filtering seismic events recorded by the IMS seismic system at Bambanani Mine:

where P^l_gp is the planar density of the scalar potency, N_se is the number of seismic events, P_n is the scalar potency of the seismic event with index η < N_se and = {w_n,x,W_n,y,w_n,z) is the corresponding source location vector. Figure 11 shows the planar density of the modelled potency (left) and scalar potency (right) at Bambanani mine. The black-to-white contours indicate the planar density, and the "hotspots" in the spatial intensity that have planar density (p^l'_gp /p^l'_gp > 0.3] are shown as cyan and magenta regions. Some geological features are indicated by black dashed lines.



Comments

In this paper, the modelled potency and modelled hazard are presented for medium- and longer-term mining periods that are associated with the shaft pillar extraction at Bambanani mine, i.e., BAM_10-13, BAM_14-16, BAM_17-19, BAM_20-22, and BAM_ALL, and the modelling results suggest an increasing trend in the modelled hazard that is a reasonably accurate estimation of the seismic hazard. The modelled potency exceedance rates of RB seismic events for BAM_10-13, BAM_14-16, BAM_17-19, BAM_20-22, and BAM_ALL are Er'v (>2.3) = 0.050,0.073,0.087, 0.224, and 0.101, respectively, and the scalar potency exceedance rates are Er'v, (>2.3) = 0.044,0.063,0.092,0.210, and 0.095, respectively. The relative error is typically lower than 10% or 15%, e.g., [Er'v - Erv]/Er'v = 0.12,0.14, -0.05,0.06 and 0.06, respectively The relative errors for shorter term mining periods are probably higher and not considered in this paper. The "hotspots" in the spatial intensity of the modelled potency are similar to those of the scalar potency. Generally, the modelling results suggest that the modelling methodology is appropriate for medium- and longer term forecasting of seismic activity and hazard, particularly for the comparison of different mining periods as presented in this paper. The modelling methodology is probably not appropriate for shorter term forecasting or prediction of seismic events.
