Modelling unsaturated dual-phase flow through crushed ores for heap leaching





S.W. Robertson^I; J. Petersen^II

^IMintek, Randburg, South Africa
^IIDepartment of Chemical Engineering, University of Cape Town, South Africa. ORCiD: http://orcid.org/0000-0003-2976-308X

Correspondence





---

ABSTRACT

Heap leaching is used extensively for the processing of low-grade copper, gold, and uranium ores. The hydrodynamics is often the most important factor that limits the rate of metal recovery. Over the past decades the author has performed physical and hydraulic testing of a large number of ore samples considered for heap leaching. The data were reviewed to investigate the effect of physical properties such as particle size distribution (PSD) and bulk density on the hydrology. The unsaturated flow through the bed is traditionally modelled with soil science models such as Brooks-Corey (BC) and Van Genuchten-Mualem (VGM), which relate the hydraulic conductivity to the degree of saturation, also known as the hydraulic conductivity function (HCF). However, most authors found a disconnect between the saturated hydraulic conductivity (Ks) and the rest of the HCF, which is explained as resulting from a transition from capillary-to gravity-controlled flow. However, the author found no such transition, and found the flow to be governed by capillary flow throughout. Traditional BC or VGM fits were found to be appropriate, however it was necessary to modify the model to include a point of inflection, above which the hydraulic conductivity remains constant while the moisture content keeps on increasing. It was proposed that this is the result of unconnected or poorly connected pores, which fill with solution but do not create additional flow channels. The point of discontinuity was also found to correspond with the air entry point, measured independently from the air conductivity curves. On average, the air entry point corresponds to the experiential rule that the void saturation should remain below 65% for aerated heaps.

Keywords: heap leaching, modelling, solution flow, air conductivity

---





Introduction

Heap leaching accounts for approximately 17% of global gold production and 21% of global copper production (Marsden et al., 2017; Basov, 2015). Heap hydraulics are often the limiting factor, which determine the rate of metal dissolution. Poor solution permeability may limit the rate at which valuable metals can be flushed from the heap, whereas poor solution contact may result in uneven wetting and incomplete extraction. Over the years a number of operations have experienced problems with solution permeability, e.g., Benkala (Whiterow, 2013), Cerro Verde (Galdos et al., 2013), and Chuquicamata (Ramírez et al., 2019). Prior to heap leach design it is therefore necessary to perform physical and hydraulic testing of the crushed ores and agglomerates. This typically include compression tests to determine the bulk density profiles during compaction, as well as hydrodynamic column tests (Cherkaev, 2019; Pyper et al., 2015; Guzman et al., 2013; Milczarek et al., 2013; Robertson et al., 2013; Ilankoon and Neethling, 2012; Lupo, 2011; Afewu, 2009; Guzman et al., 2008). A number of benchmarks have been established by experience, for example, the bulk density should not exceed 1.9 t/m³ (equivalent to 30% porosity) (Robertson et al., 2013; Guzman et al., 2013). Higher compactions will result in insufficient voidage available for solution flow, resulting in ponding or channeling. Furthermore, it was established that the degree of void saturation during percolation should not exceed 65% for aerated heaps, above which the heaps will not conduct air. For non-aerated heaps, the degree of saturation should not exceed 85% to maintain slope stability (Robertson et al., 2013; Milczarek et al., 2012). The saturated hydraulic conductivity (K_s) should be at least 100 x the target 'unsaturated' application rate (Pyper et al., 2015; Milczarek et al., 2013; Robertson et al., 2013).

The water retention curve (WRC) and the hydraulic conductivity function (HCF), which are rooted in pore-scale capillary and viscous flows, often form part of analytical and numerical models for flow and transport in unsaturated porous media. The WRC describes the relationship between soil matric potential (capillary head), h (m), and the soil water content, θ (m³/m³). The soil water content is typically represented as dimensionless effective saturation, Se (Equation [1]), where θs and θr are the soil saturated and residual volumetric contents, respectively (Assouline and Or, 2013). The HCF is often expressed in terms of the relative hydraulic conductivity (K_r), which is scaled by dividing the hydraulic conductivity (K_w) of the solution by the saturated hydraulic conductivity, K_s (Equation [2]).

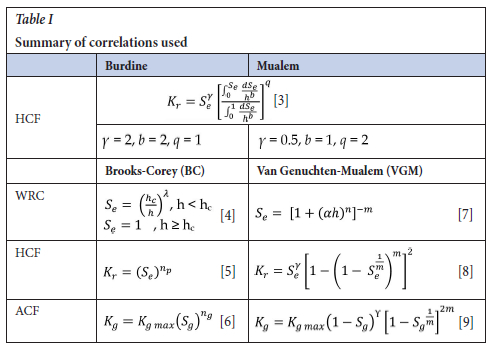

Hydraulic properties of unsaturated soils have been modelled by authors such as Burdine (1953) and Mualem (1976), who attribute to the soil a single unimodal pore size distribution governed by capillary action. Burdine's model (1953) defines the relative solution conductivity (Kr) in terms of the ratio between the square of the mean hydraulic radius (r_H) of the unsaturated soil at effective saturation (S_e) to the square of the mean hydraulic radius of the soil at full saturation (S_e = 1). Applying the capillary law (r_H = C / h), Burdine derived Equation [3] (Table I), where h is the capillary pressure, y is the pore-size interaction term, and b and q are constants. For the Burdine model, y = 2, b = 2 and q = 1. Mualem (1976) replaced the pore configuration with a pair of capillary elements whose lengths are proportional to their respective radii, and, by comparison of 45 soils, he found y = 0.5 to provide the best fit when using measured K_s values as matching point. The Mualem model, also described by Equation [3], has y = 0.5, b = 1 and q = 2.





Brooks and Corey (BC) (1964) observed that for a large number of experimental data sets, the WRC can be represented by Equation [4] (Table I), where λ is referred to as the pore-size distribution index and is usually in the range of 0.3 to 10 (Kosugi et al., 2002). The BC function is discontinuous, and has a distinct air-entry head, h_c, above which the soil is assumed to be saturated. Substituting the BC (Equation [4]) into Mualem's formula (Equation [3]) yields the HCF (Equation [5]), where np is a fitting parameter (np = (2 + 3λ) / λ)

A continuous WRC function (Equation [7]) was also proposed by Van Genuchten (1980), where m and n are fitting parameters, and a corresponds approximately to the inverse of the air entry value. Van Genuchten (1980) further proposed the relationship of m = 1 - 1 / n (n > 1, 0 < m < 1) and substituted Equation [7] into Mualem's formula (Equation [3]) to derive the Van Genuchten-Mualem (VGM) HCF (Equation [8]). The VGM model has found widespread application and has been applied to heap leaching. However, in most cases authors have only measured the WRC and Ks, and calculated the HCF from Equation [8]. Several authors have found a discontinuity between the HCF and the measured Ks value, which is attributed to a transition between capillary- and gravity-controlled flow regimes (Afewu, 2009; Mohanty et al., 1997; Luckner et al., 1989; Guzman et al., 2008, and Gerke and Van Genuchten, 1993).

The VGM model was further adapted by Parker et al. (1987) to describe the air conductivity function (ACF) (Equation [9]), where K_g is the air conductivity, and K_g max is the air conductivity when only residual moisture is present (corresponding to S_g = 0). S_g is the relative degree of gaseous saturation, as defined by Equation [10], and 9aep is the air entry point, or the maximum solution moisture content (corresponding to S_g = 1) at which the air conductivity drops off completely as the bed becomes saturated.





Experimental

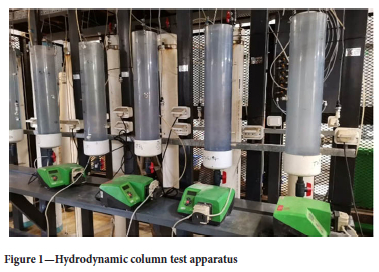

Hydrodynamic column tests (HCT) are performed in a 15 or 20 cm diameter column (75 cm tall), loaded with agglomerates at a uniform target bulk density and irrigated at incremental solution application rates (Figure 1). From the solution balance tracked throughout the duration of the test follows the hydraulic conductivity, moisture content and degree of saturation. Also obtained from the HCT test are the air conductivity, the drain-down curve, and the total, micro- and macro-porosity. Once ponding occurs, the column is allowed to saturate, and the saturated hydraulic conductivity is measured by passing solution upwards through the column from a constant-head reservoir. Finally, the column is allowed to drain for 2 to 3 days to generate a drain-down curve. The air permeability is determined according to the method described by Milczarek et al. (2013) by measuring the pressure drop as a function of flux at each moisture content. Experience shows that for copper oxide leaching the maximum liquid saturation should be kept below 85% for geotechnical stability. For aerated heaps the bed should have an air permeability of at least 100 darcys and the degree of void saturation during percolation should not exceed 60% to 65% (Robertson et al., 2013).





Results and discussion

The unsaturated flow in the bed, measured in the hydrodynamic column tests, is modelled with traditional soil capillary models such as the Van Genuchten-Mualem (VGM) and Brooks Corey (BC), in order to derive the hydraulic conductivity function (HCF), which represents the relative hydraulic conductivity (K_r) against the dimensionless effective saturation (S_e), and the air conductivity function (ACF) (Equations [5], [8] and [9], and Table I). The hydraulic conductivity functions generated for the hydrodynamic column tests are mostly S-shaped curves if the measured K_s data point is included in the data set. This type of curve cannot be modelled by the conventional BC or VGM functions, except if K_g is made a fitting parameter (Mohanty et al., 1997; Luckner et al., 1989). However, instead of modelling the data as a continuous S- or J-curve, the author proposes a discontinuous J-curve to be the most realistic. The J-curve includes an inflection point, (S_{e max}), above which K_r remains equal to 1 (Equations [11] and [12]). Two examples of this approach are plotted in Figure 2. Also plotted in Figure 3 are the air conductivity curves. The modified VGM model (Equation [9]) was used to fit the air conductivity function (ACF), where K_{g max} (air conductivity when only residual moisture is present) and θa_ep (the air entry point) are derived from the data. The fact that the moisture content keeps increasing above the point of discontinuity was ascribed to the presence of 'dead voids' or poorly connected pores, which fill up but do then generate additional flow channels.

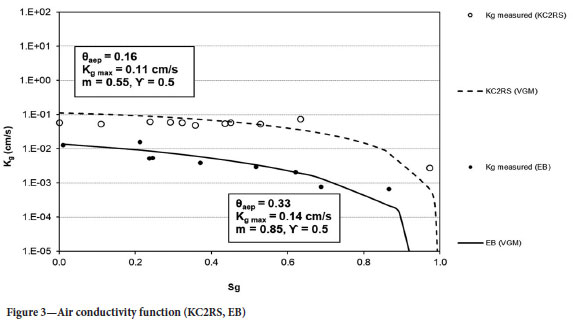

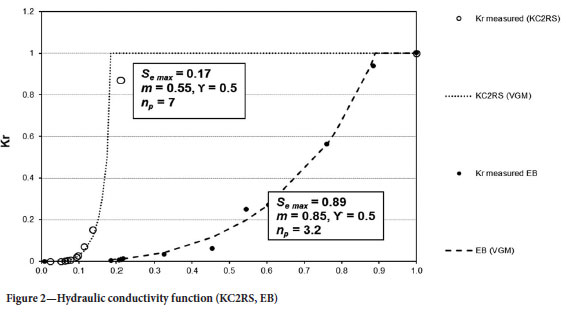

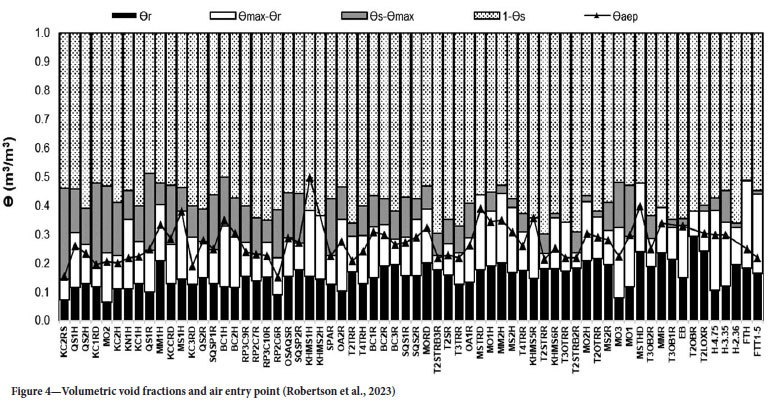

Figures 4 and 5 are plotted in order of increasing fines (-4.75 mm) content over the x-axis. The distribution of volumetric void fractions in the ore bed is plotted on the y-axis in Figure 4. The bed volume is divided into residual moisture (θr), the mobile moisture (defined as the increased moisture over and above the residual moisture) during irrigation governed by BC or VGM capillary flow (θ_max - θ_r), the volume fraction comprising 'dead voids' (θs - θ_max), and the volume fraction occupied by solids (1 - θs).

Also plotted on the y-axis is the air entry point (θ_aep) derived from the gas conductivity curves (Equation [9]). The close agreement between 9aep and θmax suggests that the air entry point occurs close to the point of discontinuity in the HCF. This may be explained by the fact that no new solution flow channels are expected to form once all the air flow channels are filled up with solution (one would expect air flow channels to be converted into solution flow channels as the moisture content increases).

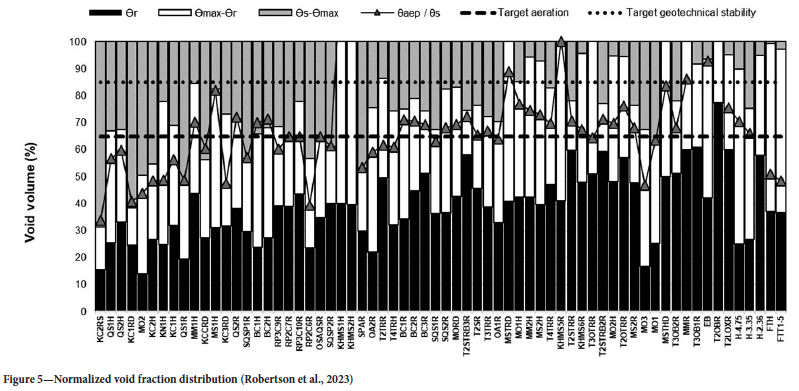

The normalized void fractions (i.e., excluding the volume fraction occupied by solids) are plotted in Figure 5, as this allows visual comparison with some of the design targets used in geomechanical (hydrology and physical) testing, which are also plotted on the same graph. The design targets include the requirement that 65% void saturation (S < 0.65) should not be exceeded in order to achieve proper aeration, and 85% void saturation (S < 0.85) should not be exceeded in order to maintain geotechnical stability (Robertson et al., 2013; Milczarek et al., 2012). The 65% saturation rule appears to provide a good design target for heap aeration, as it agrees visually with the air entry point on average. The average air entry point occurs at S = 0.66. In other words, 65% void saturation provides on average a good estimate of the air entry point (θ_aep) above which gas does not pass through the bed and above which the heap cannot be aerated.

An air entry point substantially below 65% may be indicative of poor pore interconnectivity, whereas an air entry point above 65% suggests pores with good interconnectivity. It can also be seen from Figure 5 that coarser samples generally have a lower air entry point and that the proportion of 'dead voids' (θ_s -θ_max) generally decreases as the fines content increases (from left to right over the x-axis). Coarser particles therefore contribute more to the formation of 'dead voids', which is counter-intuitive, as one would expect coarser rocks to generate larger macro-voids and hence larger flow channels. However, the formation of larger voids may not necessarily translate into larger flow channels, as the pores may not be well connected or may be blocked with finer material such as silt and clay.

The target for geotechnical stability (S < 0.85) occurs above the air entry point and the point of discontinuity in most cases. Hence the bed will become geotechnically unstable during the filling up of the 'dead voids' and starts to break apart since further increase in moisture cannot be directed towards creating new flow channels.

High saturation may occur in non-aerated heaps (e.g., copper oxides) at very high bulk densities or due to non-homogeneity, or if the bed contains a high silt and clay content, which increases the compressibility of the bed. Increased water content can reduce the stability of the rock slope by increasing the unit weight of the soil. The increased water pressure may cause instability if the increased load exceeds the shear strength of the slope. At low moisture contents, for example, the pore pressure is negative (suction), but this is converted into positive pore pressure at higher moisture contents, resulting in increased pressure exerted by the water downwards and sideways in the heap. If the material is dry or non-saturated, an increase in load compresses and compacts the mass and increases shear strength as grains and rock fragments come in closer contact with each other. However, increasing pore pressure with increased moisture content has a buoying effect, reducing the friction and shear strength.



Conclusions and recommendations

Whereas unsaturated flow models have been applied almost exclusively to material containing lower particle sizes (e.g., clay -0.002 mm, silt 0.002-0.075 mm, and sand 0.075-2 mm), typical heap leach material spans a wider range, with top sizes typically between 6 mm and 25 mm. It was shown that traditional capillary models, such as BC and VGM, may be applied to coarser heap leach samples at lower flowrates. The hydraulic conductivity function was however best described as a discontinuous J-curve, which allows the measured saturated hydraulic conductivity to be incorporated. The point of discontinuity coincided with the air entry point, measured independently. Hence it was proposed that at higher moisture content, 'unconnected' pores are filled up with moisture, without generating more flow paths. On average, the rule of thumb of <60% to 65% saturation required for forced aeration appears correct, however, the air entry point varied with fines content.

The VGM fit is popular since it provides a closed-form, continuous function suitable for mathematical models. Furthermore, most of the work publicised to date has been done on sand, where the effect of 'dead voids' will be less important.

However, the results obtained in the laboratory do not suggest dual-porosity flow and indicate that flow is governed by capillary forces up to the air entry point (a single discontinuous VGM curve). However, the conventional approach to heap leach data, which comprises measuring the WRC and K_s, and then using the VGM model to predict the HCF curve, is unsatisfactory. The benefit of measuring both the HCF and the K_s was demonstrated in this work as well as the importance of performing hydrodynamic column tests.



Nomenclature

A constant

Ai

a constant

B constant

B₀ Bond number

C constant

h m capillary head

h_c m air entry head

K_w cm/s hydraulic conductivity of solution

K_s cm/s saturated hydraulic conductivity

K_r relative solution conductivity

K_g cm/s air conductivity

K_{g max} cm/s maximum air conductivity, air conductivity at residual moisture

b, q, m, n, np, ng fitting constants

rH m hydraulic radius

S m³/m³ degree of saturation

S_e effective saturation

S_{e max} efiective saturation at air entry point

S_g relative degree of gaseous saturation

Y fitting constant

δ kPa stress

ε m³/m³ bed porosity, voidage

λ fitting constants

θ m³/m³ moisture content

θ_r m³/m³ residual moisture content

θ_s m³/m³ saturated moisture content

θ_aep m³/m³ air entry point

θ_max m³/m³ moisture content at Se max

μ kg/m/s viscosity

p kg/m³ density



References

Afewu, K.I. 2009. Development and testing of a 2D axisymmetric water flow and solute transport model for heap leaching, PhD thesis, The University of British Columbia.         [ Links ]

Assouline, S, Or, D. 2013. Conceptual and parametric representation of soil hydraulic properties: A Review. doi:10.2136/vzj2013.07.0121, www.VadoseZonelournal.org        [ Links ]

Basov, V. 2015. Heap Leach: Mining's breakthrough technology, https://www.mining.com/heap-leach-minings-breakthrough-technology [accessed on 9 June 2020].         [ Links ]

Brooks, R.H., Corey, A.T. 1964. Hydraulic properties of porous media, Hydrology Papers No. 3, Colorado State University, Fort Collins, Colorado.         [ Links ]

Burdine, N.T. 1953. Relative permeability calculations from pore-size distribution data. Transactions of the American Institute of Mining and Metallurgical Engineers, vol. 198, pp. 71-77. https://onepetro.org/lPT/article/5/03/71/162358/Relative-Permeability-Calculations-From-Pore-Size        [ Links ]

Cherkaev, A. 2019. The art of soaking rocks: systematic study of liquid and solute flow in packed rock beds in the context of heap leaching, PhD thesis, University of Cape Town, pp. 100-110.         [ Links ]

Galdos, H., Guevara, J., Saavedra, A. 2013. Geotechnical Lessons Learned from the Operation of Cerro Verde's Crush Leach Pad 4-A. 5th International Seminar on Process Hydrometallurgy, Santiago, Chile. https://www.scribd.com/document/486219698/Geotechnical-lessons-learned-from-the-operation-of-Cerro-Verde-s-Crush-Leach-Pad-4-A        [ Links ]

Gerke, H.H., Van Genuchten, M.T. 1993. A Dual-Porosity Model for Simulating the Preferential Movement of Water and Solutes in Structured Porous Media. Water Resources Research, vol. 29, pp. 305-319.         [ Links ]

Guzman, A., Scheffel, R., Flaherty, S. 2008. The Fundamentals of Physical Characterisation of Ore for Heap Leach. Sixth International Symposium on Hydrometallurgy, Y.A. Courtney et al., eds., Phoenix, AZ, Society for Mining, Metallurgy and Exploration Inc., Englewood, CO.         [ Links ]

llankoon, I.M.S., Neethling, S.J. 2012. Hysteresis in unsaturated flow in packed beds and heaps. Minerals Engineering, vol. 35, pp. 1-8.         [ Links ]

Luckner, L., Van Genucten, M. T., Nielsen, D.R. 1989. A consistent set of parametric models for the two-phase flow of immiscible fluids in the subsurface. Water Resources Research, vol. 25, pp. 2187-2193.         [ Links ]

Lupo, J.F. 2011. Sustainability issues related to heap leaching operations, Percolation leaching: The status globally and in Southern Africa. The Southern African Institute of Mining and Metallurgy, Misty Hills, Muldersdrift, South Africa.         [ Links ]

Marsden, J., Botz, M.M. 2017. Heap leach modelling: A review of approaches to metal production forecasting. Minerals and Mineral Processing, vol. 34, no. 2, pp. 53-64.         [ Links ]

Milczarek, M., Banerjee, M., Yao, T., Keller, J., Shrestha, P. 2012. Ore permeability methods of evaluation and application to heap leach optimisation, Geomet 2012. International Seminar on Geometallurgy, Santiago, Chile.         [ Links ]

Milczarek, M., Yao, T., Banerjee, M., Keller, J. 2013. Ore permeability methods of evaluation and application to heap leach optimisation, Heap Leach Solutions, Vancouver, Canada. https://www.geosystemsanalysis.com/publications/Milczarek_et_al_Heap_Leach_2013_Ore_Permeability.pdf        [ Links ]

Mohanty, M.P., Bowman, R.S., Hendrickx, J.M.H., Van Genuchten, M.T. 1997. New piecewise-continuous hydraulic functions for modelling preferential flow in an intermittent-flood-irrigation field. Water Resources Research, vol. 33, no. 9, pp. 2049-2063.         [ Links ]

Mualem, Y. 1976. A new model for predicting the hydraulic conductivity of unsaturated porous media. Water Resources Research, vol. 12, no. 3, pp. 513-522.         [ Links ]

Parker, J.C., Lenhard, R.J., Kuppusamy, T. 1987. A parametric model for constitutive properties governing multiphase flow in porous media. Water Resources Research, vol. 23, no. 4, pp. 618-627.         [ Links ]

Pyper, R., Kappes, D.W., Albert, T. 2015. Evaluation of agglomerates using the Kappes Percolation Test, Heap Leach Solutions, Reno Nevada, pp. 319-325.         [ Links ]

Ramírez, L., Font, J., Saldaña, M. 2019. Chuquicamata Improvements for Low Permeability Heap Leaching Dump. 11th International Seminar on Process Hydrometallurgy, Santiago, Chile.         [ Links ]

Robertson, S.W., Guzman, A., Miller, G. 2013. Implications of hydraulic behaviour testing for heap leach modelling. Hydroprocess: 5th International Seminar on Process Hydrometallurgy, Santiago, Chile.         [ Links ]

Robertson, S.W., Basson, P., Van Staden, P.J., Petersen, J. 2023. Properties governing the flow of solution and air through crushed ore for heap leaching: Part II: Unsaturated dual-phase flow. Hydrometallurgy, vol. 215, p. 105990.         [ Links ]

Van Genuchten, M. T. 1980. A closed-form equation for predicting the hydraulic conductivity of unsaturated soils. Soil Science Society of America, vol. 44, no. 5.         [ Links ]

Whiterow, P. 2013. Update - Frontier Mining says Benkala now generating cash for the first time in its history. https://www.proactiveinvestors.com.au/companies/news/54061/update-frontier-mining-says-benkala-now-generating-cash-for-first-time-in-its-history-64083.html [accessed on 9 June 2020].         [ Links ]
