Ventilation distribution in mechanically ventilated children in response to positioning: An exploratory study





A Lupton-Smith^{I, II}; A Argent^III; B Morrow^IV

^IBSc (Physiotherapy), MPhil (HPE), PhD; Division of Physiotherapy, Department of Health and Rehabilitation Sciences, Faculty of Medicine and Health Sciences, Stellenbosch University, Cape Town, South Africa
^IIBSc (Physiotherapy), MPhil (HPE), PhD; Department of Paediatrics and Child Health, Faculty of Health Sciences, University of Cape Town, South Africa
^IIIMD, PhD; Department of Paediatrics and Child Health, Faculty of Health Sciences, University of Cape Town, South Africa
^IVBSc (Physiotherapy), PhD; Department of Paediatrics and Child Health, Faculty of Health Sciences, University of Cape Town, South Africa

Correspondence





---

ABSTRACT

BACKGROUND: Traditionally, it was understood that children universally show greater ventilation of the non-dependent lung. Recent studies have questioned the understanding of ventilation distribution patterns in the paediatric population. There are no studies examining the effect of body position in mechanically ventilated infants/children
OBJECTIVES: To determine the effect of body position on regional ventilation distribution in mechanically ventilated children
METHODS: Thoracic electrical impedance tomography (EIT) measurements were taken in left- and right-side lying, supine and prone positions in mechanically ventilated infants/children. Functional EIT images were produced, and regional relative tidal impedance (AZ) in the left, right, ventral and dorsal lung regions was calculated. The proportion of ventilation occurring in large lung regions and regional filling were also calculated
RESULTS: Seventeen children (n=8; 47% male) aged 6 months - 6 years are presented. Many of the children (n=8; 47%) consistently showed greater ventilation in the right lung in both side-lying positions, and in the dorsal lung region (n=6; 35%) in both the supine and prone positions. Regional filling was similar between lung regions in the different body positions
CONCLUSION: Ventilation distribution in mechanically ventilated infants/children with mild lung disease is variable and similar to that of healthy spontaneously breathing infants/children

Keywords: Paediatric critical care, mechanical ventilation, body positioning, ventilation distribution, electrical impedance tomography, infants/children.

---





In mechanically ventilated infants/children, positioning is an important component of medical and physiotherapeutic management. Positioning can improve oxygenation through improved ventilation-perfusion matching, aid in the mobilisation and clearance of secretions, and prevent the development of decubitus ulcers.^[1-3]

It is well established that ventilation may not be homogeneously distributed during mechanical ventilation (MV). Factors such as the underlying condition(s), use of paralysis or sedation, and ventilatory settings have the potential to alter ventilation distribution.^[4] Studies in adults and older children have consistently shown that where no spontaneous breathing is permitted, ventilation is greatest in the non-dependent lung region, whereas where spontaneous breathing or effort is permitted, ventilation is greatest in the dependent lung region.^[5-8] The effect of supported modes of ventilation on ventilation distribution is relatively unknown in children. The understanding of ventilation distribution in the paediatric population has until recently been based on studies performed in the 1980s using 81m-krypton ventilation scanning in heterogeneous populations.^[9-12] More recent studies have explored ventilation distribution in mechanically ventilated children. These studies describe ventilation distribution relative to the centre of ventilation, and this lies ventrally or dorsally.^[13,14]

Electrical impedance tomography (EIT) is a promising non-invasive imaging technique that allows for real-time, bedside monitoring of lung function and global and regional ventilation distribution.^[15,16] Studies using EIT in neonates have found that ventilation distribution in the supine and prone positions is similar irrespective of body position and the degree of MV assistance received.^[17,18]

For appropriate positioning to be used in clinical practice, an understanding of how ventilation distribution is affected by position in mechanically ventilated infants/children aged >6 months is important. This study aimed to describe the distribution of ventilation, measured using EIT, in response to different body positions in infants/children with mild lung disease.



Methods

A prospective descriptive study was conducted in the paediatric intensive care unit at Red Cross War Memorial Children's Hospital, Cape Town, South Africa. Ethical approval was obtained from the Human Research Ethics Committee of the University of Cape Town (ref. no. 179/2013) Informed consent was obtained from the parents or legal guardians of the children, and assent was obtained from the child where appropriate.

Infants/children aged between 6 months and 9 years receiving invasive MV were eligible for inclusion. Infants/children with haemodynamic instability, an underlying cardiac defect or a disease affecting respiratory mechanics, those who had had thoracic or abdominal surgery in the preceding 3 months or a general anaesthetic (surgery) in the preceding 6 weeks, and those with fragile or broken skin or dressings over the thoracic region (which would hinder the correct application of the electrodes), raised intracranial pressure or the potential for raised intracranial pressure (e.g. traumatic head injury, meningitis) were excluded from the study.

Regional ventilation was measured using EIT. EIT has been well validated and described in detail elsewhere.^[4,19-27]

At the time of the study, no data on regional ventilation using EIT were available for this population, so the sample size was calculated using data obtained from healthy children.^[28] It was calculated that a sample of 21 children would be required to detect a mean difference in relative impedance change (ΔΖ) of 4.2, in large lung regions, and a standard deviation of 6 (alpha 0.05; power 90%).

Procedure

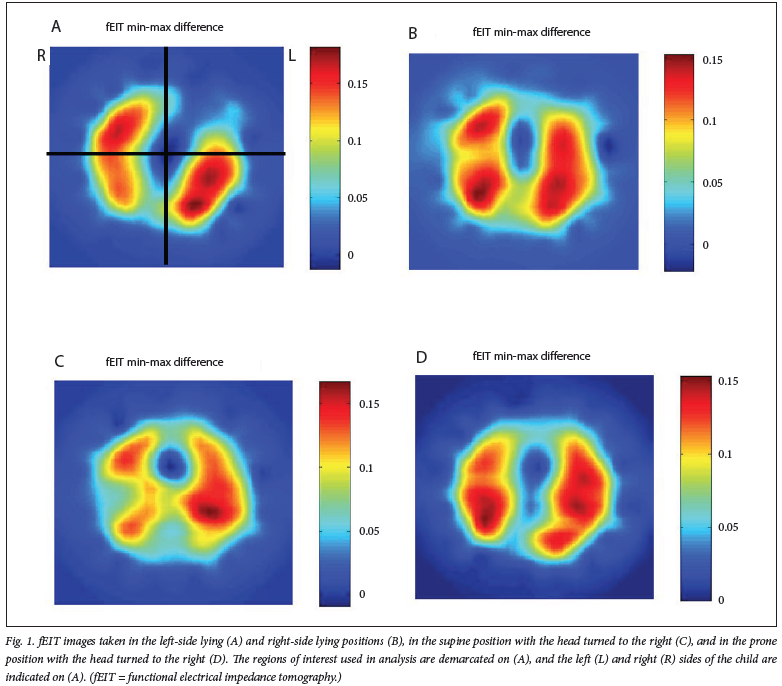

Regional ventilation was determined using the Goettingen Goe-MF II EIT system (Viasys/Carefusion, Germany). Sixteen neonatal-sized electrodes (Blue Sensor BR-50-K; Ambu, Denmark) were placed circumferentially at the 4th intercostal space (or nipple line). One reference electrode was placed on the abdomen. Measurements were taken in left- and right-side lying as well as supine and prone (children lying flat on their abdomen) positions. These positions were standardised between participants and have been described previously.^[28] Each position was maintained for ~10 minutes prior to measurements, and measurements were taken for ~1 minute in each position, or until a series of five reproducible breaths was obtained. The order of positions was one of convenience to minimise the handling of these critically ill children.

The rate of data acquisition was 13 cycles/second.^[29] Data were processed off-line using Auspex Software version 1.6 (Viasys Healthcare, Netherlands). The data were processed via a back-projection algorithm and the mean ΔΖ values were depicted in a 32 x 32 pixel matrix, where each pixel was representative of the relative impedance change within the chest.^[30] Five consecutive breaths of similar amplitude and without inspiratory or expiratory pauses were selected. Functional EIT (fEIT) images were then generated from the five breaths, and the data were used for further analysis (Fig. 1).^[31] Regions of interest included left, right, dorsal and ventral regions (Fig. 1). Global ventilation was described as: (i) the total ΔΖ in both left and right lung regions; and (ii) the global inhomogeneity (GI) index of all image pixel values. Regional ventilation was described by: (i) the pattern followed; (ii) ΔΖ; and (iii) regional filling and emptying. The ventilatory pattern followed was determined by which lung consistently had a greater proportion of ventilation (>50%) in either side-lying position or the supine and prone positions. The overall ventilation pattern followed, i.e. which region received a consistently greater proportion of ventilation regardless of the position, was described as dependent (greatest in lowermost lung regions) or non-dependent (greatest in uppermost lung regions) left, right, ventral and dorsal patterns, respectively. ΔΖ was calculated from the fEIT images as described above. The GI index describes the homogeneity of the distribution of the tidal volume within the lung and has been described in detail by Zhao et al.^[31]

Regional filling was calculated using the filling index (FI), which describes the regional filling rate relative to the global filling rate.^[8,32]

Baseline data collected included vital signs (heart rate, respiratory rate, oxygen saturation), ventilator settings and chest radiographic appearance (Table 1). Chest radiographs were assessed by one independent investigator and were classified as normal, unilateral changes or bilateral changes, based on the presence of infiltrates.

Statistical analysis

Data were tested for normality with the Shapiro-Wilk test. Differences in ΔΖ between EIT measurements of selected regions of interest in different body positions and different radiographic presentations were determined using repeated measures analysis of variance (ANOVA), after ensuring that residuals were normally distributed. Post-hoc t-tests or Mann-Whitney U-tests were performed according to distribution to determine where any significant differences may have occurred. A bonferroni correction was applied for multiple comparisons. Analysis was performed using Statistica 12 (StatSoft, USA). To determine whether age (grouped by those younger and older than 12 months) or disease state (based on radiographic presentation) determined the pattern of ventilation (grouped by non-dependent, dependent or different), a multinomial logistic regression model was applied to the data using SPSS 23 (IBM, USA).



Results

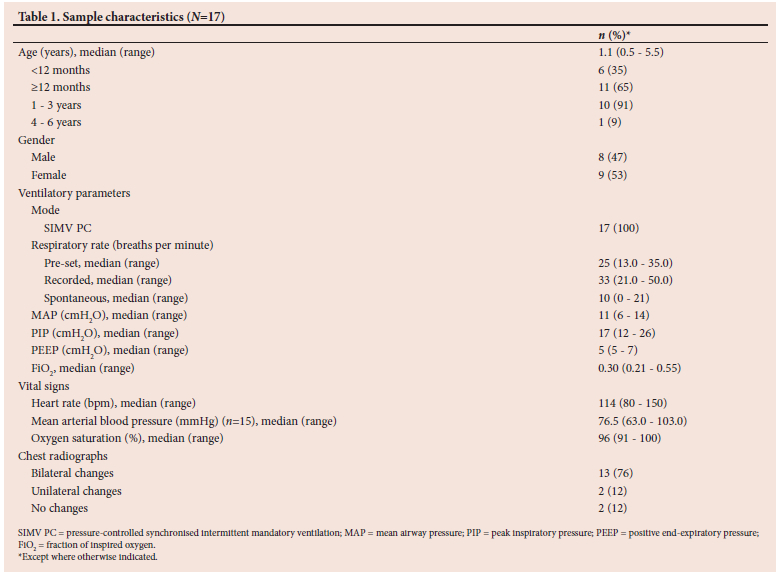

Seventeen (n=8 male) infants/children with a median age of 1.1 (range 0.5 - 5.5) years were included (Supplementary Table 1, available online at http://coding.samedical.org/file/2342). All the children received pressure-controlled synchronised intermittent mandatory ventilation. None received muscle paralysis during the study. Sixteen children (94%) received some form of sedation at the lowest dose to keep the child comfortable; this resulted in full ventilatory support in only 2 cases (12%), and the remaining children were able to trigger breaths on the ventilator. The children in this study did not have severe lung disease at the time of measurement, which was usually done towards the end of their course of MV. Thirteen children (76%) had bilateral radiographic changes, 2 had unilateral changes (on the right), and 2 had no changes. All 17 children had measurements in the side-lying positions, all 17 had at least one measurement in the supine position, and only 11 had at least one measurement in both the supine and prone positions. Inability to measure in the prone position in some children was due to newly inserted tracheostomies (day 0 or 1), or the child refusing to turn into the prone position.

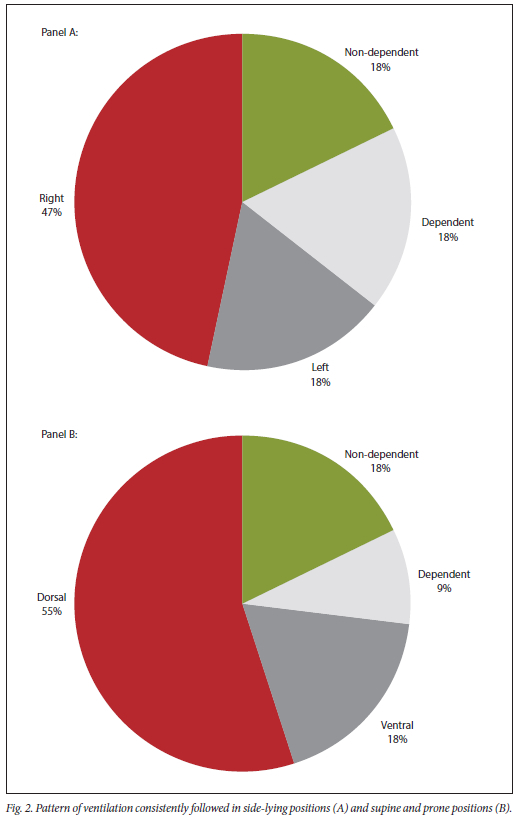

Overall ventilation pattern followed

Side-lying positions

Three (18%) of the 17 infants/children demonstrated consistently greater ventilation in the uppermost lung region (the non-dependent ventilation pattern) (Fig. 2A). A similar number of children (n=3; 18%) showed consistently greater ventilation of the dependent (lowermost) lung region. Eight children (47%) demonstrated consistently greater ventilation of the right lung in both side-lying positions, while the remaining 3 (18%) showed consistently greater ventilation of the left lung.





Supine and prone positions

Two of the 11 children (18%) demonstrated consistently greater ventilation in the non-dependent lung (Fig. 2B). One child (9%) consistently demonstrated the dependent ventilation pattern. Two children (18%) showed consistently greater ventilation in the ventral lung region, while the majority (n=6; 55%) showed greater ventilation of the dorsal lung region in both the supine and prone positions. Owing to the small number of infants/children examined in both the supine and prone positions, we were not able to determine whether age groups were associated with the overall ventilation pattern followed.

Regional ventilation distribution

Side-lying positions

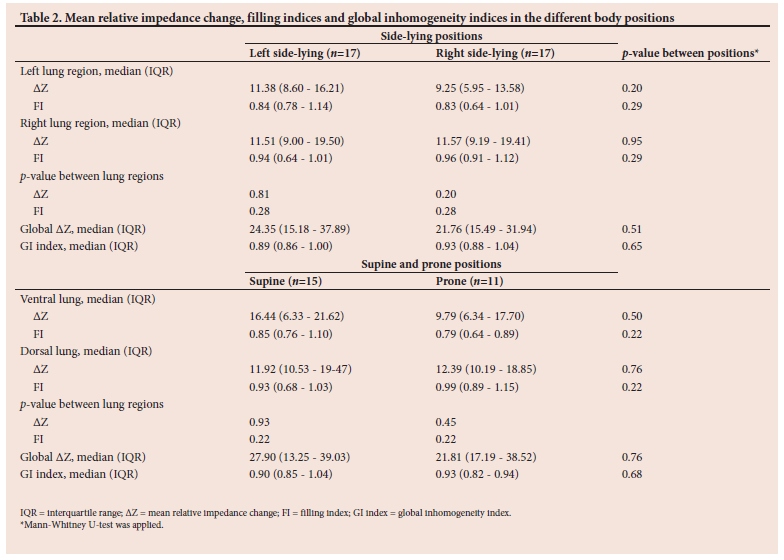

Global ventilation was unaffected by left or right side-lying positions. Regional ventilation was unaffected by position change within and between the left and right lungs (Table 2). A significant interaction between the effect of lung region and position on ΔΖ was found (F(2,56)=3.47; p=0.04), with greater ventilation in the left lung region in the dependent position, while the ventilation in the right lung region remained relatively unchanged between positions. The GI index was similar in both side-lying positions (Table 2).

The majority of the infants/children had bilateral lung disease (n=13; 76%). No significant interaction was found between the effects of type of lung disease (unilateral, bilateral or none) and position (dependent or non-dependent) and the proportion of ventilation occurring in the left lung region (F(4,18)=1.24; p=0.33) and right lung region (F(4,18)=1.24; p=0.33). The age of the child, grouped by those aged <12 months and those aged >12 months, was not associated with the overall ventilation pattern followed in side-lying positions.

Supine and prone positions

Global ventilation and regional ventilation were unaffected by the supine and prone positions (Table 2). Regional ventilation, both within and between the ventral and dorsal lung regions, was unaffected by position (F(1,18)=0.58; p=0.81). No significant difference in the GI index was found between the supine (median 0.90) and prone positions (Table 2).

The interaction between the effects of disease pattern seen on the chest radiograph and position and the proportion of ventilation in either the ventral (F(2,7)=0.01; p=0.99) or the dorsal (F(2,7)=0.01; p=0.99) lung regions in the supine and prone positions was not significant.

Regional filling

Side-lying

Regional filling was unaffected by position change (Table 2). No differences were found in regional filling between the left and right lung regions when each lung was in the dependent and non-dependent positions (Table 2).

Supine and prone positions

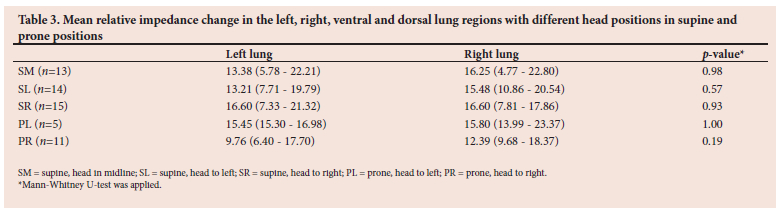

Regional filling within the ventral and dorsal lung regions was unaffected by body position (Table 3). Supine and prone positions did not significantly affect regional filling between lung regions (Table 2).



Discussion

This study describes ventilation distribution with different body positions in mechanically ventilated infants/children with relatively mild lung disease in the absence of anaesthesia/deep sedation or muscle paralysis. Most children demonstrated consistently better ventilation of their right lung in side-lying positions, and of the dorsal lung in supine and prone positions. This finding is contrary to the previously established and generally applied concept that preferential ventilation occurs in the non-dependent lung regions,^[9,11] but is similar to our previous work in healthy infants/children which found that ventilation distribution in spontaneously breathing infants/children was highly variable, with no clear or reproducible pattern.^[28]

There are limited studies investigating the effects of MV and different body positions on the distribution of ventilation in infants/ children beyond the neonatal period. Humphreys et al.^[8] and others^[5,33] investigated infants/children who were mechanically ventilated and anaesthetised, and found ventilation to be greater in the non-dependent lung in the supine position, which is in keeping with adult studies. These studies examined patients who were sedated, paralysed and fully ventilated, making direct comparison with our population difficult.

Our findings of greater ΔΖ in the dependent lung regions in the side-lying positions are in keeping with a number of adult studies which report that during MV, where spontaneous breathing is allowed, ventilation is greatest in the dependent lung regions.^[5,34-36] This finding did not differ significantly from that in spontaneously breathing infants/ children.^[28] While a more heterogeneous distribution of ventilation may be expected during MV with underlying respiratory disease, the application of positive end-expiratory pressure (PEEP) may help ameliorate this. The application of PEEP has been shown to minimise collapse of dependent lung regions and therefore improve compliance and facilitate better ventilation of the dependent lung regions.^[19,37-39]

A different pattern was observed in the supine and prone positions, with greater ventilation in the non-dependent lung regions. This finding is dissimilar to reports of no difference in ventilation between the dependent and non-dependent lung regions in the supine and prone positions in ventilated neonates.^[18] Chest wall mechanics may be related to the pattern seen. The children in the present study were relatively young and may have had more compliant chest walls. This effect may be augmented by reduced muscle tension as a result of sedatives.^[40] The increased chest wall compliance, together with the positive-pressure ventilation, may facilitate better ventilation to the non-dependent (ventral) lung region.^[7,34] In the prone position, movement of the anterior chest wall is impeded by the bed, and a reduction in the abdominal hydrostatic pressure in the dorsal regions may facilitate improved diaphragm activity and lung compliance, resulting in greater ventilation in the non-dependent lung regions.^[38,41,42]

The lack of age-related difference in this group may be related to the smaller number of children aged <12 months (n=6). Furthermore, if age-related differences account for the differences in respiratory mechanics resulting in the tendency of dependent lung regions to collapse,^[11] the application of PEEP^[19] and the more regular flow rates, tidal volumes and respiratory rates may help prevent airway closure in the dependent lung regions.

The radiographic presentation (unilateral, bilateral or normal) did not affect ventilation distribution, which is in keeping with the findings reported by Davies et al.^[11] It must be noted, however, that these chest radiographs were not all taken on the day of study inclusion, and the condition may therefore have changed at the time of the study.

In side-lying positions, regional FIs were higher in the dependent lung regions, indicating slower initial but faster late filling in relation to global filling, in keeping with the principles put forward by Bryan et al.^[43]

This finding may be the result of higher end-expiratory lung volume due to the application of PEEP^[38,44]

The dorsal lung regions had higher FIs in both the supine and prone positions, although this only reached statistical significance in the prone position. This finding is in keeping with the regional filling described in adults with acute respiratory distress syndrome (ARDS), where the ventral lung regions are relatively hyperinflated, whereas the dorsal lung regions are more recruitable in the supine position.^[20] The higher FI in the dorsal lung region in prone may be attributed to the lower compliance in the prone position, and stabilisation of the anterior rib cage and better excursion of the dorsal diaphragm in that position. The more homogeneous filling in the prone position is in keeping with the findings of a study in children with paediatric ARDS.^[45] It is possible that regional filling, and ventilation distribution, may differ depending on whether the breath was ventilator or patient driven. Although we were not able to differentiate between these in the analysis, the majority of children in our study were on assist modes and nearing the end of their course of MV, so the breaths analysed were more than likely to have been patient driven and ventilator supported. Furthermore, five reproducible breaths were selected for analysis in order to improve the uniformity of the breaths analysed. The effect of different flow rates and modes of ventilation, and whether the breaths are patient or ventilator driven, should be examined in future studies.

A major limitation of this study is that it is unclear which breaths were patient or ventilator driven, and this needs to be included in future studies to more accurately describe ventilation distribution in mechanically ventilated children. Whether there was hyperinflation on the chest radiograph was also not recorded. Hyperinflation may affect ventilation distribution, with a reduction in ventilation in the hyperinflated region. Although the sample size is comparable to similar studies in neonates^{[17,18,29,46]} and was initially calculated to be adequately powered, final analysis indicated that it was underpowered (<80%). These results should therefore be confirmed in larger studies. Positioning was not absolutely standardised, although it was reproducible between participants, and this may have affected the results. The effect of time in the position and order of positions should be considered in future studies, since ventilation distribution may change over time and there may be order effects.^[47] Often with a position change, secretions are mobilised and endotracheal suctioning is required. For ethical reasons, endotracheal suctioning was permitted during the study. This may have influenced ventilation distribution; the loss of PEEP during open endotracheal suction as well as the application of negative pressure may result in decruitment of lung regions.^[48,49] The classification of pattern based on the 50% cut-off may have resulted in the overestimation of some patterns. Whether there is a clinically meaningful difference in the proportion of ventilation between lung regions will need to be determined in future research in children.

This study provides previously lacking data that can be used to inform the development of future research investigating regional ventilation in mechanically ventilated infants/children and studies using EIT in this population. These findings could aid in improving the methodological rigour of future studies. Furthermore, the study has important implications for clinical practice in that the traditional generalisation of ventilation distribution in all children does not appear to be true. The lack of a clear pattern of ventilation distribution in mechanically ventilated infants/children suggests a judicious approach when positioning infants/ children for therapeutic purposes (such as re-expanding areas of collapse, improving ventilation-perfusion matching).



Conclusion

Ventilation distribution in mechanically ventilated infants/children, without anaesthesia or paralysis (but sedated), is variable, with most children consistently showing greater ventilation of their right or dorsal lung regions as measured by EIT. This study provides baseline data that can be used to inform future studies, and highlights areas for further research.

Declaration. The research for this study was done in partial fulfilment of the requirements for AL-S's PhD degree at the University of Cape Town.

Acknowledgements. The authors thank Prof. Inez Frerichs for training in the use of electrical impedance tomography and assistance with data analysis, Prof. Peter Rimensberger for his input into the protocol development, and Viasys/Carefusion for the loan of the EIT system (no conflict of interest).

Author contributions. AL-S: study conceptualisation, study design, data collection, data analysis, manuscript preparation and submission. AA: study conceptualisation, study design, data analysis, manuscript preparation and review. BM: study conceptualisation, study design, data analysis, manuscript preparation and review.

Funding. Medical Research Council of South Africa; Swiss-South Africa Academic Exchange grants; National Research Foundation of South Africa; School of Child and Adolescent Health, Faculty of Health Sciences, University of Cape Town; and South African Society of Physiotherapy.

Conflicts of interest. None.



References

1. Gillies D, Wells D, Bhandari AP. Positioning for acute respiratory distress in hospitalised infants and children. Cochrane Database Syst Rev 2012, Issue 7. Art. No.: CD003645. https://doi.org/10.1002/14651858.CD003645.pub3        [ Links ]

2. Dean E. Effect of body position on pulmonary function. Phys Ther 1985;65(5):613-618. https://doi.org/10.1093/ptj/65.5.613        [ Links ]

3. Hewitt N, BucknaJl T, Faraone NM. Lateral positioning for critically ill adult patients. Cochrane Database Syst Rev 2016, Issue 5. Art. No.: CD007205. https://doi.org/10.1002/14651858.CD007205.pub2        [ Links ]

4. Frerichs I, Hinz J, Herrmann P, et al. Detection of local lung air content by electrical impedance tomography compared with electron beam CT. J Appl Physiol 2002;93(2):660-666. https://doi.org/10.1152/japplphysiol.00081.2002        [ Links ]

5. Frerichs I, Hahn G, Golisch W, Kurpitz M, Burchardi H, Hellige G. Monitoring perioperative changes in distribution of pulmonary ventilation by functional electrical impedance tomography. Acta Anaesthesiol Scand 1998;42(6):721-726. https://doi.org/10.1111/j.1399-6576.1998.tb05308.x        [ Links ]

6. Neumann P, Wrigge H, Zinserling J, et al. Spontaneous breathing affects the spatial ventilation and perfusion distribution during mechanical ventilatory support. Crit Care Med 2005;33(5):1090-1095. https://doi.org/10.1097/01.ccm.0000163226.34868.0a        [ Links ]

7. Riedel T, Richards T, Schibler A. The value of electrical impedance tomography in assessing the effect of body position and positive airway pressures on regional lung ventilation in spontaneously breathing subjects. Intensive Care Med 2005;31(11):1522-1528. https://doi.org/10.1007/s00134-005-2734-x        [ Links ]

8. Humphreys S, Pham TMT, Stocker C, Schibler A. The effect of induction of anesthesia and intubation on end-expiratory lung level and regional ventilation distribution in cardiac children. Pediatr Anesth 2011;21(8):887-893. https://doi.org/10.1111/j.1460-9592.2011.03547.x        [ Links ]

9. Heaf DP, Helms P, Gordon I, Turner HM. Postural effects on gas exchange in infants. N Engl J Med 1983;308(25):1505-1508. https://doi.org/10.1056/NEJM198306233082505        [ Links ]

10. Davies H, Helms P, Gordon I. Effect of posture on regional ventilation in children. Pediatr Pulmonol 1992;12(4):227-232. https://doi.org/10.1002/ppul.1950120406        [ Links ]

11. Davies H, Kitchman R, Gordon I, Helms P. Regional ventilation in infancy: Reversal of adult pattern. N Engl J Med 1985;313(26):1626-1628. https://doi.org/10.1056/NEJM198512263132603        [ Links ]

12. Bhuyan U, Peters A, Gordon I, Davies H, Helms P. Effects of posture on the distribution of pulmonary ventilation and perfusion in children and adults. Thorax 1989;44(6):480-484. https://doi.org/10.1136/thx.44.6.480        [ Links ]

13. Inany HS, Rettig JS, Smallwood CD, Arnold JH, Walsh BK. Distribution of ventilation measured by electrical impedance tomography in critically ill children. Respir Care 2020;65(5):590-595. https://doi.org/10.4187/respcare.07076        [ Links ]

14. Nascimento MS, Rebello CM, Costa ELV, et al. Effect of general anesthesia and controlled mechanical ventilation on pulmonary ventilation distribution assessed by electrical impedance tomography in healthy children. PLoS ONE 2023;18(3):e0283039. https://doi.org/10.1371/journal.pone.0283039        [ Links ]

15. Brown BH. Electrical impedance tomography (EIT): A review. J Med Eng Technol 2003;27(3):97-108. https://doi.org/10.1080/0309190021000059687        [ Links ]

16. Pulletz S, van Genderingen HR, Schmitz G, et al. Comparison of different methods to define regions of interest for evaluation of regional lung ventilation by EIT. Physiol Meas 2006;27(5):S115-S127. https://doi.org/10.1088/0967-3334/27/5/S10        [ Links ]

17. Hough JL, Johnston L, Brauer SG, Woodgate PG, Pham TM, Schibler A. Effect of body position on ventilation distribution in preterm infants on continuous positive airway pressure. Pediatr Crit Care Med 2012;13(4):446-451. https://doi.org/10.1097/PCC.0b013e31822f18d9        [ Links ]

18. Hough JL, Johnston L, Brauer S, Woodgate P, Schibler A. Effect of body position on ventilation distribution in ventilated preterm infants. Pediatr Crit Care Med 2013;14(2):171-177. https://doi.org/10.1097/PCC.0b013e31826e708a        [ Links ]

19. Frerichs I, Schmitz G, Pulletz S, et al. Reproducibility of regional lung ventilation distribution determined by electrical impedance tomography during mechanical ventilation. Physiol Meas 2007;28(7):S261-S267. https://doi.org/10.1088/0967-3334/28/7/S19        [ Links ]

20. Hinz J, Hahn G, Neumann P, et al. End-expiratory lung impedance change enables bedside monitoring of end-expiratory lung volume change. Intensive Care Med 2003;29(1):37-43. https://doi.org/10.1007/s00134-002-1555-4        [ Links ]

21. Kunst PW, Vonk Noordegraaf A, Straver B, et al. Influences of lung parenchyma density and thoracic fluid on ventilatory EIT measurements. Physiol Meas 1998;19(1):27-34. https://doi.org/10.1088/0967-3334/19/1/003        [ Links ]

22. Frerichs I, Amato MBP, van Kaam AH, et al. Chest electrical impedance tomography examination, data analysis, terminology, clinical use and recommendations: Consensus statement of the TRanslational EIT developmeNt stuDy group. Thorax 2017;72(1):83-93. https://doi.org/10.1136/thoraxjnl-2016-208357        [ Links ]

23. Wrigge H, Zinserling J, Muders T, et al. Electrical impedance tomography compared with thoracic computed tomography during a slow inflation maneuver in experimental models of lung injury. Crit Care Med 2008;36(3):903-909. https://doi.org/10.1097/CCM.0B013E3181652EDD        [ Links ]

24. Reifferscheid F, Elke G, Pulletz S, et al. Regional ventilation distribution determined by electrical impedance tomography: Reproducibility and effects of posture and chest plane. Respirology 2011;16(3):523-531. https://doi.org/10.1111/j.1440-1843.2011.01929.x        [ Links ]

25. Victorino JA, Borges JB, Okamoto VN, et al. Imbalances in regional lung ventilation: A validation study on electrical impedance tomography. Am J Respir Crit Care Med 2004;169(7):791-800. https://doi.org/10.1164/rccm.200301-133OC        [ Links ]

26. Roth CJ, Ehrl A, Becher T, et al. Correlation between alveolar ventilation and electrical properties of lung parenchyma. Physiol Meas 2015;36(6):1211-1226. https://doi.org/10.1088/0967-3334/36/6/1211        [ Links ]

27. Hahn G, Frerichs I, Kleyer M, Heilige G. Local mechanics of the lung tissue determined by functional EIT. Physiol Meas 1996;17(Suppl. 4A):A159-A166. https://doi.org/10.1088/0967-3334/17/4a/020        [ Links ]

28. Lupton-Smith AR, Argent AC, Rimensberger PC, Morrow BM. Challenging a paradigm: Positional changes in ventilation distribution are highly variable in healthy infants and children. Pediatr Pulmonol 2014;49(8):764-771. https://doi.org/10.1002/ppul.22893        [ Links ]

29. Heinrich S, Schiffmann H, Frerichs A, Klockgether-Radke A, Frerichs I. Body and head position effects on regional lung ventilation in infants: An electrical impedance tomography study. Intensive Care Med 2006;32(9):1392-1398. https://doi.org/10.1007/s00134-006-0252-0        [ Links ]

30. Frerichs I, Hahn G, Hellige G. Gravity-dependent phenomena in lung ventilation determined by functional EIT. Physiol Meas 1996;17(Suppl 4):A149-A157. https://doi.org/10.1088/0967-3334/17/4a/019        [ Links ]

31. Zhao Z, Möller K, Steinmann D, Frerichs I, Guttmann J. Evaluation of an electrical impedance tomography-based global inhomogeneity index for pulmonary ventilation distribution. Intensive Care Med 2009;35(11):1900-1906. https://doi.org/10.1007/s00134-009-1589-y        [ Links ]

32. Moerer O, Hahn G, Quintel M. Lung impedance measurements to monitor alveolar ventilation. Curr Opin Crit Care 2011;17(3):260-267. https://doi.org/10.1097/MCC.0b013e3283463c9c        [ Links ]

33. Rehder K, Sessler AD, Rodarte JR. Regional intrapulmonary gas distribution in awake and anesthetized-paralyzed man. J Appl Physiol Respir Environ Exerc Physiol 1977;42(3):391-402. https://doi.org/10.1152/jappl.1977.42.3.391        [ Links ]

34. Riedel T, Frerichs I. Electrical impedance tomography. In: Frey U, Merkus PJFM, eds. European Respiratory Monograph 47: Paediatric Lung Function. Lausanne, Switzerland: European Respiratory Society, 2010:195-206.         [ Links ]

35. Bein T, Ploner F, Ritzka M, Pfeifer M, Schlitt HJ, Graf BM. No change in the regional distribution of tidal volume during lateral posture in mechanically ventilated patients assessed by electrical impedance tomography. Clin Physiol Funct Imaging 2010;30(4):234-240. https://doi.org/10.1111/j.1475-097X.2010.00933.x        [ Links ]

36. Van der Burg P, de Jongh FH, Miedema M, Frerichs I, van Kaam AH. The effect of prolonged lateral positioning during routine care on regional lung volume changes in preterm infants. Pediatr Pulmonol 2016;51(3):280-285. https://doi.org/10.1002/ppul.23254        [ Links ]

37. Meier T, Luepschen H, Karsten J, et al. Assessment of regional lung recruitment and derecruitment during a PEEP trial based on electrical impedance tomography. Intensive Care Med 2008;34(3):543-550. https://doi.org/10.1007/s00134-007-0786-9        [ Links ]

38. Hinz J, Moerer O, Neumann P, Dudykevych T, Hellige G, Quintel M. Effect of positive end-expiratory-pressure on regional ventilation in patients with acute lung injury evaluated by electrical impedance tomography. Eur J Anaesthesiol 2005;22(11):817-825. https://doi.org/10.1017/S0265021505001377        [ Links ]

39. Gattinoni L, D'Andrea L, Pelosi P, Vitale G, Pesenti A, Fumagalli R. Regional effects and mechanism of positive end-expiratory pressure in early adult respiratory distress syndrome. JAMA 1993;269(16):2122-2127.         [ Links ]

40. Emeriaud G, Larouche A, Ducharme-Crevier L, et al. Evolution of inspiratory diaphragm activity in children over the course of the PICU stay. Intensive Care Med 2014;40(11):1718-1726. https://doi.org/10.1007/s00134-014-3431-4        [ Links ]

41. Froese AB, Bryan AC. Effects of anesthesia and paralysis on diaphragmatic mechanics in man. Anesthesiology 1974;41(3):242-255. https://doi.org/10.1097/00000542-197409000-00006        [ Links ]

42. Pelosi P, Tubiolo D, Mascheroni D, et al. Effects of the prone position on respiratory mechanics and gas exchange during acute lung injury. Am J Respir Crit Care Med 1998;157(2):387-393. https://doi.org/10.1164/ajrccm.157.2.97-04023        [ Links ]

43. Bryan AC, Milic-Emili J, Pengelly D. Effect of gravity on the distribution of pulmonary ventilation. J Appl Physiol 1966;21(3):778-784. https://doi.org/10.1152/jappl.1966.21.3.778        [ Links ]

44. Gattinoni L, Pelosi P, Crotti S, Valenza F. Effects of positive end-expiratory pressure on regional distribution of tidal volume and recruitment in adult respiratory distress syndrome. Am J Respir Crit Care Med 1995;151(6):1807-1814. https://doi.org/10.1164/ajrccm.151.6.7767524        [ Links ]

45. Lupton-Smith A, Argent A, Rimensberger P, Frerichs I, Morrow B. Prone positioning improves ventilation homogeneity in children with acute respiratory distress syndrome. Pediatr Crit Care Med 2017;18(5):e229-e234. https://doi.org/10.1097/PCC.0000000000001145        [ Links ]

46. Frerichs I, Schiffmann H, Oehler R, et al. Distribution of lung ventilation in spontaneously breathing neonates lying in different body positions. Intensive Care Med 2003;29(5):787-794. https://doi.org/10.1007/s00134-003-1726-y        [ Links ]

47. Caruana LR, Paratz JD, Chang A, Barnett AG, Fraser JF. The time taken for the regional distribution of ventilation to stabilise: An investigation using electrical impedance tomography. Anaesth Intensive Care 2015;43(1):88-91. https://doi.org/10.1177/0310057X1300113        [ Links ]

48. Hough JL, Shearman AD, Liley H, Grant CA, Schibler A. Lung recruitment and endotracheal suction in ventilated preterm infants measured with electrical impedance tomography. J Paediatr Child Health 2014;50(11):884-889. https://doi.org/10.1111/jpc.12661        [ Links ]

49. Morrow B, Futter M, Argent A. Effect of endotracheal suction on lung dynamics in mechanically-ventilated paediatric patients. Aust J Physiother 2006;52(2):121-126. https://doi.org/10.1016/s0004-9514(06)70047-2        [ Links ]





Correspondence:
A Lupton-Smith
aluptonsmith@sun.ac.za

Received 26 November 2024
Accepted 25 February 2025





Contribution of the study
Ventilation distribution in mechanically ventilated children with mild disease is not dissimilar to that in healthy infants and children. Positioning to optimise ventilation should be tailored to each child's responses. This study provides exploratory data describing ventilation distribution in mechanically ventilated infants and children. These data can be used to inform further research study design.
