RESEARCH ARTICLE



Gallium-68-NODASA-Functionalized D-Lysine Radiosynthesis and first-line in vitro characterization - a potential PET imaging agent for infection





Christiaan A. Gouws^I; Tricia Naicker^I; Janie Duvenhage^{III, V}; Beatriz G. de la Torre^II; Fernando Albericio^II; Hendrik G. Kruger^I; Biljana Marjanovic-Painter^IV; Sipho Mdanda^{III, V}; Jan Rijn Zeevaart^{III, IV, V}; Thomas Ebenhan^{III, V, *}; Thavendran Govender^{VI, *}

^ICatalysis and Peptide Research Unit, School of Health Sciences, University of KwaZulu-Natal, Durban, South Africa
^IISchool of Chemistry and Physics, University of KwaZulu-Natal, Durban, South Africa
^IIINuclear Medicine Research Infrastructure NPC, Pretoria, South Africa
^IVRadiochemistry, the South African Nuclear Energy Corporation (Necsa) SOC Ltd, Pelindaba, South Africa
^VDepartment of Nuclear Medicine, University of Pretoria, Pretoria, South Africa
^VIDepartment of Chemistry, University of Zululand, KwaDlangezwa, South Africa





---

ABSTRACT

The advancement of new Positron Emission Tomography (PET) radiotracers for differentiating bacterial infections from sterile inflammation is essential for accurate diagnosis and treatment monitoring. D-amino acid-based probes have shown promise for bacterial imaging due to their selective peptidoglycan incorporation. However, host enzyme-mediated racemization of radiolabeled D-amino acids and limited tissue penetration of fluorescence signal of fluorescent D-amino acids limits their in vivo performance. Herein, we report the successful chemical synthesis, optimized radiosynthesis, and the required first-line in vitro characterization of [⁶⁸Ga]Ga-NDL-1 (NDL = NODASA D-lysine; NODASA = 1,4,7-triazacyclononane-1-succinic acid-4,7-diacetic acid) (the L-isomeric compound, aka. [⁶⁸Ga]Ga-NLL-1 was evaluated in parallel as the control). Robust radiolabeling was achieved within 60 minutes using the optimized radiolabeling method, featuring the consistent production of very good radiochemical yields (81.7 ± 3.2%), apparent molar activities (17.1 ± 0.8 GBq/µmol) and with excellent radiochemical purities (97.7 ± 0.5%), free of ⁶⁸Ga-colloids; therefore, deemed suitable for future intravenous administration and micro-PET imaging applications. [⁶⁸Ga]Ga-NDL-1 was highly stable during prolonged incubation in the presence of 1000-times excess of EDTA (>93%) as well as a during a 2-hour exposure to plasma (>97%). [⁶⁸Ga]Ga-NLL-1 and [⁶⁸Ga]Ga-NDL-1 showed minimal overall blood cell binding (<12%) or plasma protein binding (<15%). Results justify further investigation of [⁶⁸Ga]Ga-NDL-1 as a potential PET imaging agent of infection.

Keywords: D-amino acid, peptidoglycan, positron emission tomography, bacterial-specific, radiolabeling, radiochemical characterization, imaging of infection

---





INTRODUCTION

Despite advancements in antibiotic drug discovery and development in the last several decades, bacterial infections remain a major global health risk globally.^1-3 With the increasing emergence of antibiotic-resistant bacteria and the discovery of novel classes of antibiotics almost coming to a standstill, early detection and diagnosis of infections of bacterial origin is crucial to provide patients with optimal care and curb the unnecessary use of antibiotics.^{1, 4, 5} However, early diagnosis can be challenging owing to overlapping symptoms caused by infectious and inflammatory conditions, especially in elderly and immunocompromised patients affected by opportunistic, occult, and chronic infections. Conventional diagnostic approaches such as clinical history, physical examination, biopsies and blood cultures, sonar, and simple radiographs may not provide a definitive diagnosis. Thus, more sensitive anatomical imaging studies are recommended, such as Computed Tomography (CT), Magnetic Resonance Imaging (MRI), or molecular/functional imaging studies using nuclear medicine modalities such as Single-Photon Emission Tomography (SPECT) and Positron Emission Tomography (PET). Among these, PET is most frequently used in the diagnostic workup and staging of complicated infectious diseases and in monitoring patient responses to therapy.⁶

PET enables visualisation and quantification of pathophysiological changes associated with infection at the molecular level, even before CT/MRI-detectable anatomical changes occur. PET achieves this by measuring the distribution and localization of an intravenously injected radiotracer. The radiotracer consists of a biochemically active moiety (vector) that provides target specificity, tagged with a radioisotope that releases a positron, measurable by PET, upon decay. Thus, increased radiotracer localization might be associated with increased targeted molecular activity. To this end, currently available radiopharmaceuticals approved to assist diagnosis of infection, such as radiolabeled white blood cells (WBC), [¹⁸F]fluorodeoxyglucose ([¹⁸F] FDG), and [⁶⁸Ga]-citrate do not target bacterial-specific molecular mechanisms, but rather rely on secondary, host-mediated inflammatory molecular responses to visualize infections.^{7, 8} More and more initiatives are emphasizing the development of novel radiopharmaceuticals that can directly interact with causative pathogens in order to provide even more effective clinical tools for the diagnosis and prognosis of infectious diseases. Furthermore, they may also serve as research tools to enhance our understanding of the underlying mechanisms of therapeutic performance and the emergence of resistant pathogens.^9-16

Peptidoglycan (PG) is an extracellular cell wall structure maintained by nearly all bacteria and thus offers various avenues for novel bacterial-specific radiotracer development. One such route is the bacterial use of D-enantiomer amino acids (D-AAs) as substrates for PG biosynthesis, since these D-AAs also have no significant role in the biological makeup and metabolism of Mammalia.^17-21 PG is a complex meshwork of alternating muramic acid and glucosamine-containing glycan chains cross-linked by short-stem peptides.²² These stem peptides predominantly contain D-AAs, such as D-alanine and D-glutamic acid, which are recognized and used by periplasmic enzymes, such as L,D-transpeptidases and penicillin-binding proteins, to catalyse peptide crosslinking.^22-26 It has also been demonstrated that these enzymes can incorporate non-canonical D-amino acids (such as D-lysine and D-methionine), and are able to modify PG with highly functionalised/modified D-AAs through either direct incorporation or through D-AA exchange reactions, even if they are conjugated to relatively bulky fluorescent groups.^27-31 Exploitation of this mechanism has produced several commercially available imaging agents, also known as molecular probes, that enable in situ spatiotemporal monitoring of PG biosynthesis and regulation. Several examples of commercially available fluorescent D-lysine derivatives used to target and visualize PG assembly in vitro and in situ are displayed in Figure 1A.^{29, 31} Furthermore, the undiscriminated utilisation of unnatural D-AAs seems to be conserved throughout the bacterial kingdom, including in clinically relevant pathogens, although the incorporation rates can vary.^{27, 31}





Recently, the use of radiolabeled D-amino acids as bacterial-specific nuclear imaging agents targeting PG, has been explored.³² This includes [¹¹C]D-methionine and [¹¹C]D-alanine which enables the detection and differentiation of actively growing Escherichia coli, Staphylococcus aureus, and Pseudomonas aeruginosa infections from sterile inflammation in murine infection models.^33-36 Furthermore, in initial studies on patients with suspected prosthetic joint infections, [¹¹C]D-methionine performed well in the identification of active infections. However, the short half-life of carbon-11(20.4 min), its associated high cost, and limited availability remain major drawbacks. Additionally, host-mediated racemization of L-isoforms and metabolism through D-amino acid oxidase activity have been reported to lead to high radiotracer retention in the liver.^{33, 36, 37} Whilst longer-lived fluorine-18-labelled analogues (110.2 min) of D-alanine and D-glutamate have been reported, significant in vivo defluorination and lack of homology between native and fluorine-18-analogues have been limiting their further usage.^{38, 39} With promising initial results using [¹¹C]D-AAs as radiotracer vectors, there has been a quest for the development of 2^nd generation D-AA-derived radiotracers that utilise alternative radionuclides to mitigate the limitations attributed to the radiochemistry of carbon-11.³⁹

Based on the maintenance of PG incorporation by D-AAs modified with relatively bulky fluorophores (Figure 1A), we sought to functionalize lysine with 1,4,7-triazacyclononane-1-succinic acid-4,7-diacetic acid (NODASA) to form the individual stereoisomers, NODASA-L-Lysine (NLL-1) and NODASA-D-Lysine (NDL-1) (Figure 1B). Functionalization of lysine with NODASA, a macrocyclic bifunctional chelator, should enable efficient chelation of PET-compatible metal radionuclides, such as Gallium-68 (Ga-68).^{40, 41} Additionally, NODASA chemistry affords relatively easy conjugation to a targeting vector.⁴² Importantly, Ga-68-NODASA radiocomplexes show high radionuclide stability, and the half-life of Ga-68 (67.7 min) matches well with the biological half-lives of most small biomolecules.⁴¹ Also, daily Ga-68-chloride radioactivity is conveniently available in solution by 'milking' a germanium-68/gallium-68 generator, a cost-efficient process featuring a facile, on-demand radioactivity production.

The a-amino group of D-amino acids plays a critical role in its biochemical interactions with PG biosynthetic enzymes.^{25, 26, 29} In this case, the functionalization does not impact the stereochemistry at the a-amino group and the configuration of D- or L-lysine is retained. The purpose is not to replicate every function of natural lysine, but to retain the essential aspects necessary for PG incorporation.

Herein, we report the successful conjugation of D-lysine and L-lysine to NODASA (NDL, targeting agent; NLL, biological negative control), followed by the development and optimization of the synthesis of Ga-68-radiotracers, [⁶⁸Ga]Ga-NDL-1 and [⁶⁸Ga]Ga-NLL-1, for initial radiopharmaceutical and a first-line in vitro characterization as PET imaging agents. Results from this study will aid in justifying the validity of [⁶⁸Ga]Ga-NDL-1 for preclinical assessment as a prospective radiotracer for PET imaging of infection.



EXPERIMENTAL

Syntheses

Synthesis of NDL and NLL

A procedure developed by Dutta et al.⁴³ for synthesising NODASA-functionalized peptides on resin was modified to functionalise D-lysine and L-lysine with NODASA (Scheme 1). More detailed information regarding the synthesis steps is provided in the supplementary information. All synthetic intermediates and products were characterised using a PDA-coupled LCMS (Shimadzu 2020 UFLC-MS, Japan) with a YMC-Triart C18 (5 µm, 4.6 x 150 mm) column. NDL and NLL were isolated by diethyl ether precipitation to form a fine white or off-white powder. The identities of the final NDL and NLL products were confirmed by HRMS-TOF (ESI+): calculated for C₂oH₃₅N₅O₉ [M+H] 490.2508; found 490.2456 (NDL) and 490.2503 (NLL), respectively (Figure S5). As discussed in the synthesis results section and Supplementary Scheme S1, the final NDL and NLL products each constitute two structural isomers, most probably because of an aspartimide side reaction, and will be referred to as NDL-1/NDL-2 and NLL-1/NLL-2.

NDL-1/2 and NLL-1/2 semi-preparative HPLC separation, purification and analysis

Following synthesis, the respective NDL and NLL structural isomers were successfully separated and purified using a semi-preparative HPLC system (Shimadzu, Kyoto, Japan) coupled to an ACE C18 preparative column (150 x 21.2 mm) using 0.1% TFA in water as Mobile-phase A and 0.1% TFA in acetonitrile as Mobile-phase B. A gradient of 0-10 % Mobile-phase B over 30 min with a flow rate of 10 mL/min was used with PDA detection set at 200nm and 220nm, respectively.

NDL-1/NLL-1 eluted at a retention time of 16.3 - 17.0 min, whilst NDL-2 and NLL-2 eluted at 18.3 - 20.8 min. The collected fractions were characterised by LCMS identification of the desired product m/z (490.2) and chromatographic purity. Fractions with purity >95% were combined, followed by removal of residual acetonitrile in vacuo and freezing at -80°C. Subsequent freeze-drying yielded a white or clear crystalline product.

Preparation of the non-radioactive Ga-NDL-1 reference compound NDL-1 was complexed with gallium(III)chloride (non-radioactive Ga) as follows: 200µl of 20mM GaCl₃ dissolved in 0.6M HCl was diluted with 400 0.6M HCl and mixed with 240µl of a 2.5 M sodium acetate solution (pH 4-5). Next, 100 20.0mM NDL-1 (0.5 equiv. to Ga) was added, followed by incubation at room temperature for 15 min.

Ga-68 radioactivity production and preparation

A tin-dioxide germanium-68(⁶⁸Ge)/gallium-68(⁶⁸Ga)-generator (iThemba LABS, Somerset West, South Africa) was used to obtain ⁶⁸Ga for radiolabeling by using an 0.6M HCl elution fractionation method,⁴⁶ the first 1.0 ml eluate is discarded into a waste vial. The next 2.0 ml eluate, which contains the majority of ⁶⁸Ga-activity, is collected (into a separate vial) for use in radiolabeling reactions. The generator line was then rinsed with 7.0 ml into the waste vial. The radioactivity of both the eluate and waste fractions was measured using a CRC Capintec 15 beta dose calibrator (CM Nuclear Systems, Orange Grove, Johannesburg, RSA). Without further purification, the ⁶⁸Ga-eluate acidity) was adjusted to pH 4-5 using 2.5M sodium acetate trihydrate, and used for radiolabeling experiments.

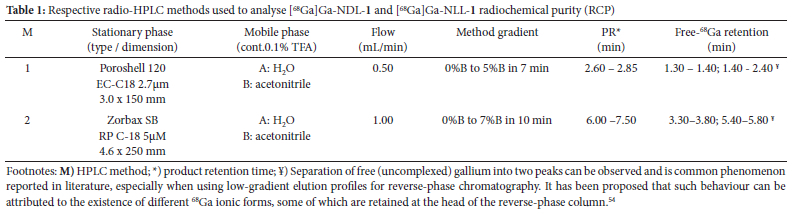

Radio-HPLC methods for NDL/NLL characterization and radio-analysis

Two different radio-HPLC systems (and their respective developed methods) were used to assess radiochemical purity (%RCP) and radiochemical yields (%RCY) for logistical reasons (Table 1). The HPLC instrumentation used for radioanalysis included an Agilent 1200-series (System 1) or Agilent 1260 Infinity II (System 2), both coupled to a Diode Array Detector and radioactive detector (Sockel 2 GABI Nova, Raytest, Straubenhardt, Germany). The samples were injected without prior purification. However, when working with methanol or ethanol, the samples were thoroughly dried and resuspended in water before injection to avoid significant changes in retention time (R_T) and peak shape. A wash phase consisting of 95% acetonitrile for 5 min was performed after the gradient, followed by 5 min of re-equilibration.

Characterization of radiolabeled NDL-1 and NLL-1

For radio-HPLC characterization, initial radiolabeling of NDL-1 and NLL-1 was performed using a IGGµM ligand concentration at room temperature for 2G min and generator-produced, buffered ⁶⁸Ga-activity prepared as previously described. Radio-characterisation was performed using radio-HPLC method 1, as described in Table 1. Confirmation of non-radioactive Ga-NDL-1/-NLL-1 (reference compound) m/z and purity was performed using LCMS (Agilent Technologies Inc., Wellington, DE, USA) coupled with a diode array detector using both HPLC methods specified in Table 1. Then, the identity of the radioactive [⁶⁸Ga]Ga-NDL-1/NLL-1 was confirmed by comparing peak retention times observed in the radio-chromatogram with the peak retention times observed in the UV-chromatogram of the non-radioactive Ga-NDL-1 reference standards.

Development and evaluation of optimal radiolabeling parameters

Reaction series were performed in Eppendorf 1.5 mL plastic tubes using G.225 ml aliquots of generator-produced, buffered ⁶⁸Ga-radioactivity (~2G.G MBq). The series of reactions were performed at either pH 3.5 or pH 4.5. The percentage radiochemical yield (%RCY) of each reaction was measured using radio-HPLC method 1. A set of maximum 12 reactions was performed from a single gallium generator elution; every data point represents an independent reaction.

Proposed NDL-tailored SPE purification method

No previous method was cited by literature, and different SPE cartridge sorbent types were screened. Following that, a Sep-Pak Silica SPE cartridge (Waters Corporation, USA) was used to purify [⁶⁸Ga]Ga-NDL-1/-NLL-1 as follows: 1) before sample loading, the SPE cartridge was pre-conditioned with 2.G ml water, followed by 1G.G ml EtOH; 2) the radiolabeling reaction solution was diluted with 9.G ml EtOH (1:9 water/ EtOH, v/v) and slowly loaded onto the cartridge material (flow approx. G.5 mL/min); 3) the reaction vial was washed with 2.G ml 1:9 water/ EtOH and the additional volume loaded onto the cartridge; 4) different gradient elution profiles were established using increasing water/ EtOH (v/v) solutions to achieve gradual radioconjugate desorption. Desorption was monitored by measuring the activity retained on the cartridge after each elution fraction, using a CRC Capintec 15 beta dose calibrator. The percentage of captured activity was calculated after each elution fraction as cartridge activity divided by the total loaded activity measured after radiolabeled product loading.

Evaluating the radiolabeling performance of the optimized radiosynthesis protocol

Radiolabeling was performed several times using the proposed optimized radiosynthesis protocol, with the inclusion of SPE purification (n = 3 for [⁶⁸Ga]Ga-NDL-1 and [⁶⁸Ga]Ga-NLL-1, respectively) to calculate key performance parameters. Radiosynthesis was performed in 1G mL clear borosilicate glass vials. The activity involved before and after each radiosynthesis and SPE purification step was measured using a CRC Capintec 15 beta dose calibrator. The %RCY for the crude radiolabeled product and final %RCP of the SPE-purified radiolabeled products were calculated using radio-HPLC (Method 2). An aliquot of the crude radiolabeled product was taken before SPE purification for %RCY calculation. To calculate the SPE desorption rate, decay-corrected %RCY, loss to apparatus/materials, and the sum of recovered radioactivity, the measured activity fractions were decay-corrected to the time of loading the crude radiolabeled product onto the SPE cartridge.

Challenge and stability studies

The ability ofthe produced [⁶⁸Ga]Ga-NDL-1/-NLL-1 to safely complex and sustain ⁶⁸Ga-chelation was studied under various conditions by adopting the method used by Dutta et al.⁴³ Briefly, the radiochemical stability of [⁶⁸Ga]Ga-NDL-1/-NLL-1 was measured up to 18G min post-labelling and setting the following challenges: a) the final product solution (as is) was kept at laboratory bench-top conditions; b) product re-formulation and incubation in G.1M PBS (pH 7.5); and c) product exposure to 1GGG-fold molar excess of EDTA (pH 7.4 using 1.G M NaOH); settings b) and c) were incubated at 37°C. At the relevant time points, an aliquot of the sample was analysed using radio-HPLC to determine its relative stability (change in %RCP over time; [⁶⁸Ga]Ga-NDL-1 → radio-HPLC method 1; [⁶⁸Ga]Ga-NLL-1 → radio-HPLC method 2). The results were expressed as % intact radioconjugate normalized to the initial %RCP for each radiolabeled product used in the experiment. Each data point represents a single reaction.

Physico-chemical characterization (logD_7.4)

The lipophilicity of [⁶⁸Ga]Ga-NDL-1 and [⁶⁸Ga]Ga-NLL-1 were determined using an n-octanol/PBS (pH 7.4) system test, as described by Shi et al.⁷¹ Each radioconjugate was diluted with PBS (pH 7.4). For the test, 1.G ml of radioconjugate/PBS solution (~12 MBq) was mixed with 1.G ml n-octanol and vortexed for 1 min. The mixture was separated by centrifugation at 45GG rpm for 5 min. A 900µl aliquot was aspirated from each layer and transferred into separate Eppendorf tubes. Radioactivity for each phase was determined using a well-type CRC Capintec 15 beta dose calibrator. The LogD₇₄ of each sample (n = 3) was calculated as log (k_o/w), the logarithm of the ratio of decay-corrected activity between the octanol and water layers (k_o/w).

Proteolytic stability and blood distribution assays

Blood samples were collected in heparinised vacutainer tubes kindly provided by the Nuclear Medicine Research Department at the University of Pretoria. All the samples were kept on ice until further use. Plasma samples were obtained by centrifugation at 4000rpm for 2 min (LCEN-4G1P digital clinical centrifuge, MRC Laboratory Equipment). For all experiments, vials containing blood, plasma, or serum were preheated to 37°C for 5 min before the addition of the ⁶⁸Ga-radioconjugate (i.e. the [⁶⁸Ga]Ga-NDL-1 /or -NLL-1 products with >95% RCP were prepared by routine radiosynthesis, as described in the previous section). Before adding to plasma, the pH of the radiolabeled products was adjusted to 7-8 using 1.0M NaOH. Assays were performed using sterile Eppendorf tubes.

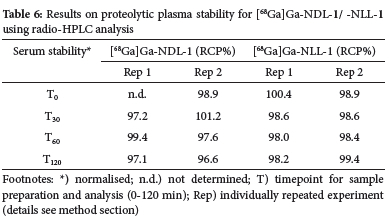

Enzymatic plasma stability was determined according to the method described by Xia et al.⁷² Briefly, each radiolabeled product (~10MBq) was added to 1.0 mL plasma and mixed gently. The solution was incubated at 37°C. At certain timepoints (0, 30, 60, and 120 min), an aliquot of 200 was taken and mixed with 1.0 ml absolute ethanol to precipitate plasma contents. The suspension was separated by centrifugation at 4500 rpm for 5 min. A 100 aliquot of the supernatant was taken for radio-HPLC analysis (method 1) and first prepared by evaporating ethanol, followed by resuspension in 100µl water and injection into the HPLC. The results were expressed as % intact radioconjugate relative to the administered radioconjugate %RCP (n=2).

Blood cell association studies were performed as described by Shi et al.⁷¹ Each radioconjugate (~5.0 MBq) was added to a 1.2 mL whole-blood cell sample, gently mixed, and incubated at 37°C. At certain timepoints (0, 30, and 60 min), a 300 aliquot was transferred to a yellow BD Vacutainer" blood collection tube (containing the clot activator/polymer gel). This tube was centrifuged at 4500 rpm for 2 min to separate the serum from the blood cells, which were absorbed into the gel layer. The serum was rinsed into separate tubes using PBS (3 X 0.5 ml). Radioactivity in both tubes was measured separately using an automated gamma counter (LabLogic, Hidex AMG, Turku, Finland). Blood cell association was calculated by dividing the total radioactivity measured in the blood collection tube with the combined activity of both tubes (decay corrected; n = 3).

Serum protein binding assay was performed as described by Mdlophane et al.⁷³ Briefly, each radiolabeled product (~1.5 MBq) was added to 500 of plasma, gently mixed, and incubated at 37°C. At certain time points (0, 30, and 60 min), an aliquot of 100 was added to 500 absolute ethanol to precipitate the plasma contents. The protein precipitate was pelleted by centrifugation at 4500 rpm for 5 min. The pellet was further washed with 500 of absolute ethanol, and the supernatants were combined. Radioactivity was measured in the pellet and supernatant using an automated gamma counter (LabLogic; Hidex AMG, Turku, Finland). The percentage of serum protein binding was calculated by dividing the pellet-measured activity by the combined activity of the pellet and supernatant (decay corrected; n = 3).

Statistical Analysis

All data processing calculations were performed using Microsoft Office, Excel Version 2016. Results for LogD₇₄, percentage of blood cell-associated activity, and percentage of serum protein-bound activity are presented as mean ± SD. For blood cell association and serum protein binding results, statistical significance between sample groups per time point of the respective [⁶⁸Ga]Ga-NDL-1 and [⁶⁸Ga] Ga-NLL-1 experiments was calculated using one-tailed Student's t-test. A two-tailed t-test was used to compare the [⁶⁸Ga]Ga-NDL-1 and [⁶⁸Ga]Ga-NLL-1. Statistical significance was set at P < 0.05.



RESULTS AND DISCUSSION

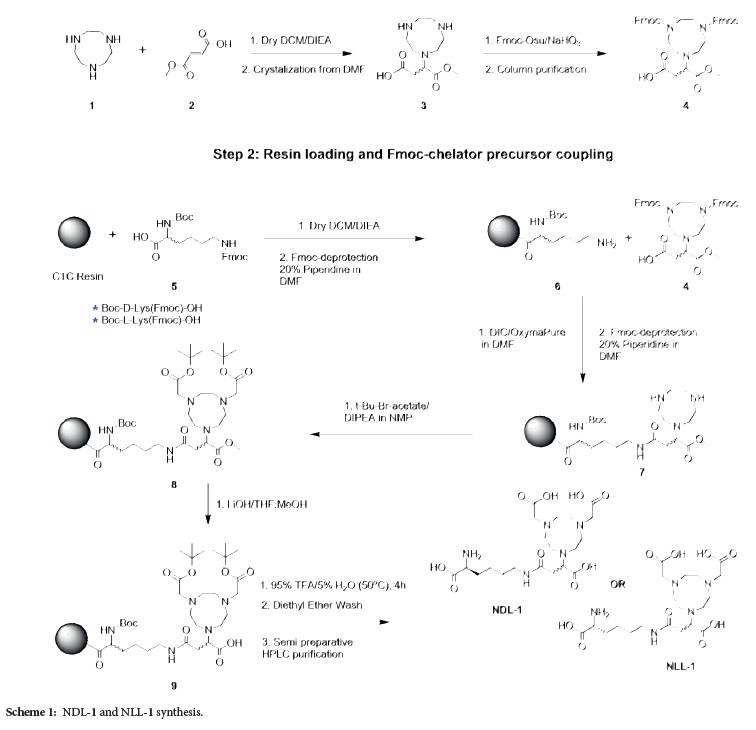

Chemical synthesis of NDL-1 and NLL-1

Both NDL-1 and NLL-1 were successfully synthesized in sufficient quantities and purities using a solid-phase peptide synthesis (SPPS) procedure (Scheme 1).⁴³

The off-resin production of (4) was successful, yielding a white powder product in 78% yield. Photodiode array (PDA) detector coupled ESI-LCMS showed a single peak (>98% pure, UV detection at 300 nm), correlating with the protonated molecular ion of desired product 4, m/z 704 ([MH]+) (Figure S1).

2-Chlorotrityl chloride (CTC) resin was preloaded with commercially available Boc-D-Lys(Fmoc)-OH and Boc-L-Lys(Fmoc)-OH (5), respectively. Following Fmoc deprotection, the deprotected primary amine situated on the lysine side chain of 6 was amidated with Fmoc-protected 4-methoxy-4-oxo-3-(1,4,7-triazonan-1-yl) butanoic acid (4), as confirmed by the LCMS analysis of an aliquot of cleaved resin (Figure S2). Two HPLC peaks correlating with the protonated molecular ion of the desired amide, [M+H]+, m/z 932, and the Boc-deprotected amine, [M-Boc+H]+ with m/z 832, were observed. Following Fmoc deprotection to yield 7, on-resin alkylation of the triazacyclononane amine groups with tert-butyl bromoacetate was performed to successfully produce 8. PDA-coupled ESI-LCMS analysis ofan aliquot of the resin cleaved under mild conditions (Figure S3) revealed two HPLC peaks (retention times, RT, 13.8 min and 18.2 min) correlating with the protonated molecular ion and daughter ions of the desired product, 8, (ESI-MS) m/z 504 ([M-Boc-2tBu+H]+) (R_T 13.8 min), and the second peak (R_T 18.2 min) corresponding to m/z 716 ([M+H]+, 616 ([M-Boc+H]+), 560 ([M-Boc-tBu+H]+). The combined peaks indicate >98% conversion to the desired product (8).

At this point, it should be noted that significant amounts of a byproduct, most probably an aspartimide, was observed when using 3.0 equivalents of tert-butyl bromoacetate/DIEA according to the reported method⁴³ (Figure S4; Figure S8: LCMS indicating Am/z of -32 compared to 8, >60% of the total peak area; Scheme S2). Using 6.0 equivalents of base and alkylating agent minimized this side reaction to undetectable levels.

Subsequent basic hydrolysis of the methyl ester of 8 by suspension in a 1:1 mixture of THF/MeOH saturated with LiOH for 15 min was successful, yielding 9 on resin. Finally, 9 was fully deprotected and cleaved from the resin using a 95:5 mixture (v/v) TFA/ H₂O, yielding the final product, NDL-1 or NLL-1. NDL-1 and NLL-1 were isolated by diethyl ether precipitation to form a fine white or off-white powder. The calculated yields were 64.2% and 90.3% for NDL-1 and NLL-1, respectively. The identities of NDL-1 and NLL-1 were confirmed by HRMS-TOF (ESI+): calculated for C₂₀H₃₅N₅O₉ [M+H] 490.2508; found 490.2456 (NDL-1) and 490.2503 (NLL-1), respectively (Figure S5).

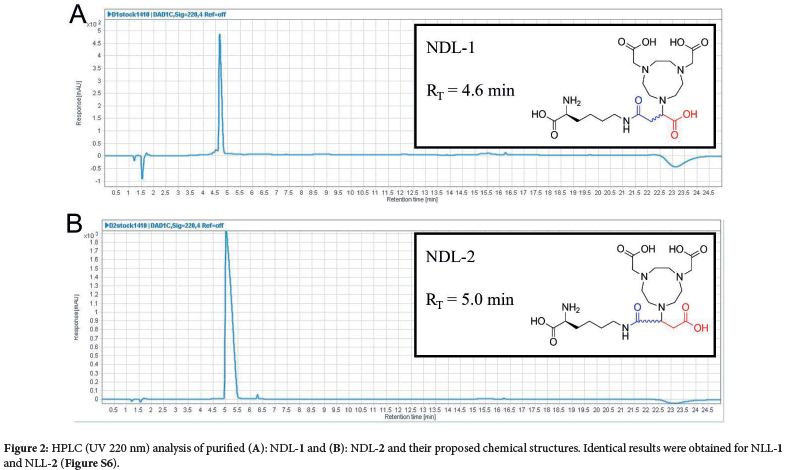

UV-LCMS analysis of NDL-1 revealed the presence of split peaks, both with m/z values corresponding to that of the desired product (m/z of 490.2, Figure S4). These peaks were successfully separated and purified using semi-preparative HPLC and designated as NDL-1 and NDL-2, achieving purities >98%, as indicated by analytical HPLC (Figure 2). Similar results were obtained for NLL-1 (Figure S6).

Differential characterization of NDL-1 and NDL-2

The compound peaks ascribed to NDL-1 and NDL-2 were initially believed to be diastereoisomers of NDL-1. However, subsequent radio-HPLC characterization and radiolabeling optimization attempts revealed that NDL-2 is most probably an epimerized β-aspartyl or α-aspartyl rearranged by-product resulting from aspartimide byproduct formation during the synthesis of (8) and its subsequent cleavage during the synthesis of (9).The chemical structures of the two compounds featured in Figure 2 and Scheme S2 showcase the products of the proposed intra-molecular rearrangement, which has been highlighted for clarity. This side reaction is well documented in SPPS-related literature and is further described in the context of NDL in Scheme S2.^{44, 45}

This was further substantiated by radio-HPLC analysis of [⁶⁸Ga] Ga-NDL-1 and [⁶⁸Ga]Ga-NDL-2, which revealed slightly split radio-peaks for each radiolabeled compound (Figure S7A). If NDL-1 and NDL-2 were clearly separated diastereoisomers, a single radio-HPLC peak was to be expected. Additionally, significantly poorer ⁶⁸Ga-chelation efficiency was observed for NDL-2 when compared to NDL-1 under identical radiolabeling conditions (Figure S7B). This is most likely due to the alteration of the NODASA core structure in NDL-2, which negatively affected its capability to efficiently chelate gallium, since the structure is optimised to the ionic radius of Ga³+. Lastly, the NDL-2 by-product yield at the end of synthesis correlated well with the increased aspartimide by-product formation observed during the synthesis of (8) (Figure S8). Similar results were obtained for NLL-1 and NLL-2 (data not shown). Thus, based on the evidence that indicates the formation of structural isomers during synthesis and poor ⁶⁸Ga-chelation capability, isolated NDL-2 and NLL-2 products were excluded from further experimentation, and we proceeded with the desired NDL-1 and NLL-1 products.

Analytical characterization of [⁶⁸Ga]Ga-NDL-1 and [⁶⁸Ga]Ga-NLL-1

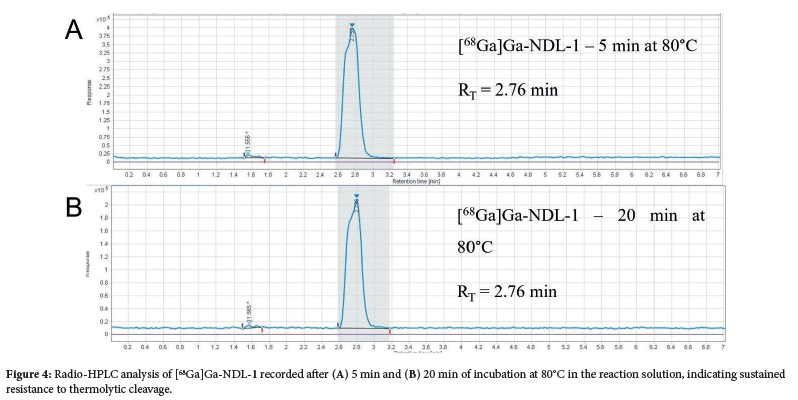

To assess whether NDL-1 and NLL-1 could successfully incorporate gallium-68, general radiolabeling was performed using a protocol adopted from Rossouw and Breeman,⁴⁶ followed by radio-HPLC analysis (method 1) of the resulting radiolabeled products. The results are shown in Figure 3. Both NDL-1 and NLL-1 successfully incorporated gallium, as indicated by the specific [⁶⁸Ga]Ga-NDL-1 and [⁶⁸Ga]Ga-NLL-1 peaks emerging at R_T = 2.7 min (Figure 3A and 3B, respectively) which were separated from that of the free, ionic ⁶⁸Ga-species (R_T = 1.65 min, but 1.4 - 2.4 min broad, Figure S9). No UV signals corresponding to this peak were detected. This was expected, as NDL-1 and NLL-1 exhibit very limited UV absorbance. Furthermore, a marked difference in R_T was observed between NDL-1 and [⁶⁸Ga]Ga-NDL-1 (At = 4.7 min) (Figure 3C). This is expected because of the altered physicochemical properties of NODASA upon radiometal chelation, which constitutes a large proportion of the overall molecular structure. While no additional radiopeaks were observed, the possibility of radiolabeled impurity co-elution due to the short retention time of the radioconjugate cannot be excluded. Thus, complementary UV-LCMS (UV 220 nm) analysis of a more concentrated non-radioactive reference compound (Ga-NDL-1) was performed to confirm the identity of [⁶⁸Ga]Ga-NDL-1 (Figure 3D). The R_T of Ga-NDL-1 (2.57 min, with a confirmed m/z of 556.2, Figure 3E) correlated well with the R_T of [⁶⁸Ga]Ga-NDL-1, confirming that the corresponding radioconjugate was indeed obtained in the labelling reactions. The small difference in R_T between the radiolabeled and cold compounds was a result of the delay time between the instrument detectors. No additional peaks or m/z signals were observed (except for a confirmed unretained buffer-related peak at R_T = 2.0 min), indicating that a chemically pure metal conjugate was obtained.

Radio-HPLC methods 1 and 2 were sufficient for monitoring the radiolabeling performance (baseline separation between ionic ⁶⁸Ga and radiolabeled compounds) and radiometal-conjugate stability from a radiotracer development perspective. It should also be noted that the developed radio-HPLC method can separate [⁶⁸Ga]Ga-NDL-1 from excess unreacted NDL-1 ligand in a relatively short time, and thus may be adapted for preparative-HPLC purification. This would enable the production of a radiopharmaceutical product devoid of excess unreacted ligand that may compete with [⁶⁸Ga]Ga-NDL-1 for targetsite binding in biological assays.^{47, 48}

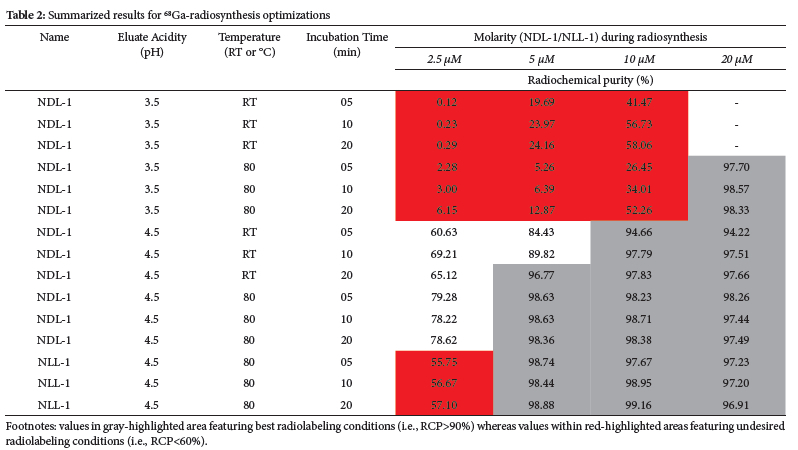

Development and evaluation of optimal radiolabeling parameters

Developing a new radiosynthesis method includes the evaluation of radiolabeling parameters that warrant reliable production of a radiolabeled product at low ligand concentration and in the shortest amount of time. A series of reactions was performed to assess the radiolabeling outcome based on the following variables: 1) ligand concentration (2.5, 5.0, 10, and 20 µM); 2) eluate acidity (pH 3.5 vs. pH 4.5); 3) reaction temperature (room temperature vs. 80°C); and 4) reaction time (5, 10, and 20 min). The experimental pH values were selected from NOTA-based gallium-68 radiolabeling literature, citing a pH between 3 - 5 to be essential ^{41, 42}. The results are presented in Table 2. Quantitative radiolabeling of both [⁶⁸Ga]Ga-NDL-1 and [⁶⁸Ga]Ga-NLL-1 were achieved at 80°C in as little as 10 min using a ligand concentration as low as 5 µM with generator eluates adjusted to pH 4.5.

Remarkably poor radiochemical yields (RCY) were achieved at pH 3.5 when compared to those at pH 4.5. This is an unexpected result, as most reactive Ga³+ species, such as [Ga(H₂O)₆]³+, predominate in solutions below pH 4.0, which should facilitate an improved labelling efficiency.^{41, 42} Indeed, NOTA-based chelators are known for their excellent chelating capacity at low pH (3.0-4.0).⁴¹ Nonetheless, at pH 4.5, consistent and quantitative radiolabeling yields of [⁶⁸Ga]Ga-NDL-1 and NLL-1 were achieved at concentrations as little as 5.0 in less than 5 min when heated to 80°C. At this pH, quantitative labelling could also be achieved at room temperature, but with an increased incubation time of up to 20 min. being required. At NDL-1 concentrations <5.0 µM, increased temperature yielded higher %RCY compared to room temperature, though the yield plateaued within 5 min of reaction time. The same result was observed for NLL-1; however, a lower overall %RCY was achieved. This may be a result of inter-gallium eluate variability between the three sets of experiments in terms of activity and degree of metallic impurities. For example, significant amounts of Zn²+ are generated within the generator as ⁶⁸Ga decays over time, thus its presence is more prominent in the first eluate of the day.⁴² For NOTA-based chelators, Zn²+ is known to compete with ⁶⁸Ga and adversely affects ⁶⁸Ga-radiolabeling performance, especially at low added ligand concentrations.^{42, 47, 49, 50}

It should be noted that for radiolabeling at pH >4.0, precipitation of water-insoluble [⁶⁸Ga]Ga(OH)3-species (a.k.a. colloids) is a concern, as this can result in a situation where the rate of gallium-chelate complex formation essentially competes with the rate of colloid formation.⁴⁷ The prevalence of such colloids cannot be quantified by HPLC, but could be assessed in later routine labelling experiments using solid phase extraction (SPE) to capture and measure excess colloids. Nonetheless, the observed loss of activity to SPE cartridges was consistently relatively low (<10%, refer to the next section).

It should also be noted that none of the samples showed any additional radiopeaks during radio-HPLC analysis. This indicates the absence of ligand impurities that may compete with NDL-1/NLL-1 for gallium-68 chelation, whether due to ligand degradation under labelling conditions (oxidation or radiolysis) or the presence of UV-inactive ligand by-products carried over from the chemical synthesis procedure. This also indicates that either the ⁶⁸Ga-NDL-1/ or -NLL-1 complex is highly stable and resistant to thermolytic cleavage during the 20 min exposure to the high-temperature period (Figure 4). However, the possibility of degradation and by-product co-elution during HPLC analysis remains, as previously mentioned.

SPE purification method development

To obtain a radiolabeled product suitable for injection, insoluble ⁶⁸Ga-colloids and excess reaction buffer salts must be removed from the radiolabeled products using SPE.^{40, 47} However, an initial comparison of such SPE cartridges recommended for purification of ⁶⁸Ga-radiolabeled products (i.e., Waters Sep-Pak C18 Light, Waters Sep-Pak CM (cation exchange)) failed to fully capture and retain [⁶⁸Ga]Ga-NDL-1 or [⁶⁸Ga]Ga-NLL-1 during sample loading and the initial wash phase (by using solvent systems recommended by the manufacturer).^{40, 47} Therefore, an original SPE purification method was developed in this study.

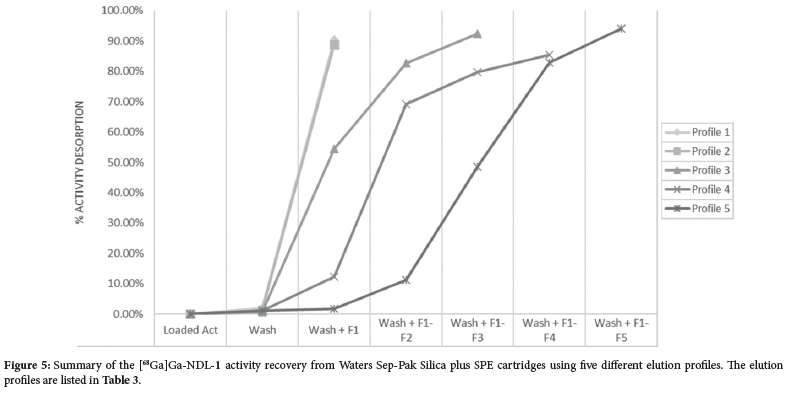

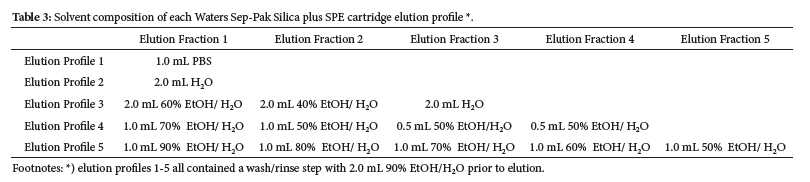

The comparison of different SPE stationary phases revealed that Waters Sep-Pak Silica plus cartridges could efficiently retain the radio-conjugates if the reaction solution was diluted with 9-times excess EtOH (i.e. solvent composition of 90% EtOH/water) and recovered with increasing water/PBS (PBS = phosphate-buffered saline) solvent composition. As the literature has not yet reported any protocols on silica-based SPE to purify ⁶⁸Ga-radiodiolabeled products, we investigated several elution profiles to characterize target product and unreacted ionic-⁶⁸Ga-species desorption and propose success rates for purification performance. Table 3 lists the solvent composition of each elution fraction used as part of each elution profile. Figure 5 provides a summary of the SPE desorption trends of [⁶⁸Ga]Ga-NDL-1 activity.

For the purpose of de-salting (2.5M NaOAc was used) and removal of gallium-68 colloids, a 1-step recovery of major amounts of [⁶⁸Ga] Ga-NDL-1] radioactivity from the cartridge was sufficient using water/PBS; however, unreacted, ionic-⁶⁸Ga-species may also co-elute. As a solution, employing gradual elution profiles (e.g., profiles 3-5) provided pure fractions devoid of ionic-⁶⁸Ga, thereby affording radiochemical purity (RCP) >99.8% from 97.2% crude (for example: Profile 3: F1 = 97.2%; F2/3 = >99.8%, Figure 6), but at the expense of the overall RCY. A minimum of 80% EtOH/water (20% water) was required to recover activity from the cartridge.

As mentioned, for radiolabeling at pH >4.0, precipitation of ⁶⁸Ga-colloids is a concern.⁴⁷ SPE is a well-accepted method used to capture and remove chemically inert and insoluble ⁶⁸Ga-colloids from the final product.⁴² Fortunately, we found that the apparent loss of radioactivity to the SPE (including colloids) at the end of purification remained relatively low for all SPE settings investigated (9.7 ± 2.8%, n = 8).

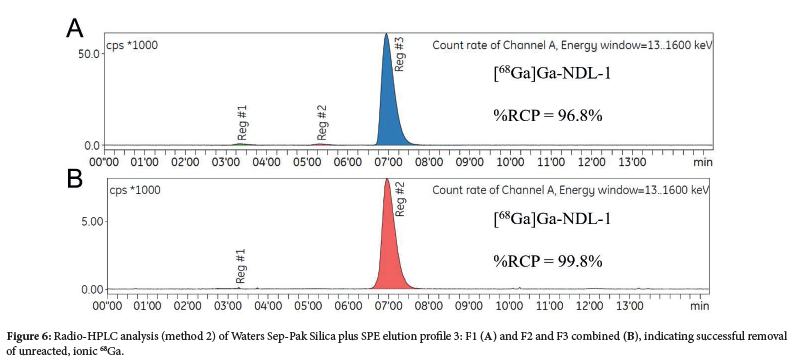

It should be noted that, interestingly, use of silica-based SPE purification of ⁶⁸Ga-radiopharmaceuticals has not been reported in literature. In fact, limited information is available on the mechanism in which the sorbent material of commonly used SPE cartridge-types is involved (whether it be due to a filtering effect, or chemical affinity).^{47-49, 51-54} Thus, to confirm that silica-SPE also has the capacity to capture and remove ⁶⁸Ga-colloids, a control experiment was performed on a sample containing predominantly colloidal-⁶⁸Ga species. The sample's ⁶⁸Ga-colloid content was quantified using an iTLC-SG (silica gel) method: 0.1 M sodium citrate (pH 5) as mobile phase to separate ⁶⁸Ga-colloidal species (Rf = 0.1) from free ionic-⁶⁸Ga³+ that migrate with the solvent front (Rf = 0.8).⁵³ This control experiment demonstrated that silica-SPE also captures and removes chemically inert and insoluble ⁶⁸Ga-colloids, as after cartridge loading, no desorption occurs irrespective of eluting solvent strength applied. Therefore, the proposed SPE protocol is suitable for providing radiochemically pure [⁶⁸Ga]Ga-NDL-1 and [⁶⁸Ga]Ga-NLL-1 as starting materials for different characterisation assays (and future administration to live species).

Nonetheless, as a potential alternative to SPE, the developed radio-HPLC methods could also sufficiently separate [⁶⁸Ga]Ga-NDL-1/ NLL-1 from excess unreacted ligand (Figure 3) in a relatively short run-time. Thus, these methods may also be adapted to isolate [⁶⁸Ga] Ga-NDL-1 from excess NDL-1 (which may compete with the mechanisms governing enzymatic incorporation of D-AA into PG in biological assays).^{47, 48}

Optimized radiosynthesis protocol performance

Based on results from the evaluated radiolabeling and SPE parameters, the following radiosynthesis protocol has been adopted for routine radiolabeling: a ligand concentration of 5 in buffered ⁶⁸Ga-eluate (pH set at 4.0-4.5) is incubated at 80°C for 10 minutes. To remove excess buffer salts and colloidal-⁶⁸Ga³+, the radiolabeled product is subsequently cleaned with a Water's Sep-Pak Silica SPE using either 2.0 ml water or 2.0 mL PBS as desorption agent.

Key radiolabeling performance parameters such as %RCY, %RCP, product activity at the end of synthesis (E.O.S), and apparent molar activity (A_m) was calculated by repeated radiosyntheses with the inclusion of SPE purification. Table 4 provides a summary of the results gathered from consecutive preparations of [⁶⁸Ga] Ga-NDL-1 and -NLL-1 using this novel radiosynthesis protocol. Data were pooled based on identical physicochemical properties and similar radiolabeling parameters. In comparison, results from several radiolabeling reactions performed at lower NDL-1 / NLL-1 concentrations (2.5µM and 1.0µM) are also provided.





Reliable radiolabeling was achieved with the proposed protocol, indicating the successful, high-quality preparation of a radiochemically pure product (%RCP >95%). Relatively high levels of %RCY and A_m were consistently achieved in under 60 minutes of total radiosynthesis time. By using silica SPE, radiochemically pure products that are suitable for further in vitro and in vivo application-based experimental assays can be produced with molar activities (A_m) similar to other reported ⁶⁸Ga-radiolabeled NOTA-based chelator-functionalised peptides, such as [⁶⁸Ga]Ga-NOTA-UBI (13.8 ± 1.9 GBq/µmol),⁵⁵ [⁶⁸Ga]Ga-NOTA-RGD-GE11 (>35.2 GBq/µmol),⁵⁶ and NODAGA-functionalized peptide heterodimer derivatives (25-61 GBq/µmol).⁵⁷

It should be noted that the relatively lengthy radiosynthesis time caused substantial decay-related loss in product A_m. However, the total radiosynthesis can be substantially reduced by applying a faster loading/elution flowrate,⁵⁸ an automated radiosynthesis modality that exclude operator-related limitations,⁵¹ or through pre-concentration of ⁶⁸Ga-eluate before radiosynthesis to allow for smaller reaction volumes.⁴⁹ For example, the bulk of added radiosynthesis time could be attributed to SPE purification (37.1 ± 3.8 min), where almost a half (17.0 ± 2.5 min) could be attributed to loading the cartridge with the ethanol-diluted crude product at a low flowrate (10.0 mL at 0.5 - 0.8 mL/min). By reducing the radiolabeling reaction volume, or applying a faster and more consistent loading/elution flowrate (e.g. between 1 - 5 mL/min as commonly reported in literature), the total radiosynthesis time could be majorly reduced.⁵⁸

An added benefit of using the herein developed silica-based SPE together with water or PBS as stronger desorption solvent may be a possible production of a radiotracer product ready for injection without the need of EtOH evaporation (a lengthy step required when utilizing C18- or Hydrophilic-Lipophilic Balanced (HLB)-SPE) or dilution.⁴⁷ Injection of a radiopharmaceutical with high ethanol content may cause side effects such as pain and hemolysis, thus radiopharmaceutical solutions are generally limited to only 10% (v/v) ethanol.⁵⁹ EtOH evaporation also increases the risk of radioactive contamination and radiation exposure to operators, and may be accompanied by partial decomposition of the tracer via radiolysis.^{47, 60} In our developed silica-based SPE method, maximum desorption was achieved with 100% water or PBS, thus eliminating the need for ethanol in radiolabeled-product preparation for injection.

One of the limitations of the silica-based SPE method is its reliance on the crude product RCP being of acceptable quality, i.e., it is often referred to "instant" radiolabeling (>95% RCY), as this method was not fully able to eliminate ionic ⁶⁸Ga-species. As demonstrated, ionic ⁶⁸Ga-species are also retained on the silica-SPE cartridge and can only be separated from [⁶⁸Ga]Ga-NDL-1/NLL-1 by applying a gradual elution profile of increasing water strength. Although separation is achievable, it is at the sacrifice of some RCY due to a degree of overlapping elution.

It should be noted that the lack of reported use of silica-based SPE may be due to the retention of free ionic-⁶⁸Ga³+, as well as the fact that larger molecular scaffolds are typically used in ⁶⁸Ga-radiochemistry due to the requirement of bifunctional metal-chelator functionalization for metal-based radionuclide incorporation. As a result, reverse-phase and ion exchange resins have been sufficient for separating [⁶⁸Ga]Ga-radiolabeled compounds in general.⁴⁸ An additional concern is the incomplete removal of ionic germanium-68 from the final product using silica-based SPE, but this can be avoided by including pre-purification/concentration as part of the [⁶⁸Ga]-production process before radiolabeling application, such as ion-exchange chromatography, extraction chromatography, solvent extraction, precipitation, and electrochemical methods.⁵¹ Nonetheless, due to the limited reported use of silica-based SPE purification of gallium-68 radiopharmaceuticals in literature, and its potential benefits as an alternative SPE for concentrating/purification of highly polar and hydrophilic compounds as demonstrated in this study, further investigations are warranted to characterize the capture and desorption behaviour of free ionic ⁶⁸Ga species and generator-produced metal-contaminants.

Finally, it was demonstrated that quantitative labelling yields (>90% RCY) could also be achieved with 2.5 NDL-1 to further increase the A_m; however, due to variability, more comprehensive testing should be performed to support the preliminary results. This may include using more standardized production of ⁶⁸Ga-activity by using a newer generator, or by means of activity concentration and pre-purification that limits metal contaminants as this could directly affect the radiolabeling efficiency.^51-53

Challenge and stability studies

Developing an original radiosynthesis protocol for a new compound, such as NDL, is commonly followed by a feasibility study that will cover the challenges for its general intended use, that is, radiopharmaceutical product integrity. Therefore, essential and often considered a go vs. no-go criterion, the concern of radiochemical product stability defines the time period in which the new [⁶⁸Ga]Ga-NDL-1 or [⁶⁸Ga] Ga-NLL-1 can be safely used for the intended purpose (e.g., integrity post-labelling until patient administration occurs). Results displayed in Table 5 show a maintained ⁶⁸Ga-chelation when challenged for up to 180 min and by using quantitative radio-HPLC analysis (at bench-top condition, PBS formulation; Figure S10). No apparent reduction in the % intact radioconjugate as well as visible re-occurrence of uncomplexed ⁶⁸Ga-species or other by-product radio-peaks were observed. Percentage intact radioconjugate values higher than 100% were attained, most likely because of continuous chelation occurring over time. These results, in combination with maintained quantitative radiolabeling being achieved and maintained for more than 20 minutes at 80°C, indicates a high level of thermodynamic stability.⁶¹





Another key criterion is that once the radiometal-chelator (NODASA) complex is formed, it should remain stable or irreversible, even in the presence of competitive chelating agents (mimicking biologically occurring metal scavengers).⁶¹ If radiometals such as Ga-68 are significantly released once injected into living species, it may result in non-specific biodistribution, off-target pharmacology, or compromised PET image quality.¹³ Thus, to assess the kinetic inertness of the radioconjugate, a trans-chelation challenge using up to 1000fold molar excess of EDTA is considered a powerful way to test efficient gallium-chelation.⁶² The results of quantitative HPLC radio-peak analysis are also displayed in Table 5. Only a 6-7% reduction in the amount of intact radioconjugate for both [⁶⁸Ga]Ga-NDL-1 and NLL-1 were observed due to exposure to EDTA over 180 min. This is reasonable proof that NDL-1 and NLL-1 (by way of NODASA) form excellent, stable complexes with gallium-68, and radioisotope release (or leeching) is negligible to minimal over an appropriate duration or once administered in vivo, which are all sought-after properties of NOTA-based chelators (Figure S11).

Physico-chemical characterization and proteolytic stability

Key properties such as lipophilicity, polar surface area, and net charge play pivotal roles in influencing the radiotracer's ability to permeate the blood-brain barrier or otherwise be delivered to tissues that may harbour active infection.^63-65 For instance, information gathered from numerous pharmacokinetic studies involving radiolabeled antibiotics underscores that delivery to body sites that show bacterial tissue manifestation can frequently be limited, primarily due to factors such as poor vascularisation, the presence of necrotic tissue, and elevated cellular density.^{4, 66} Additionally, elevated plasma protein binding is often observed for highly lipophilic, small molecules, resulting in unfavourably slow clearance rates, while positively charged and hydrophilic radiotracers may be eliminated too swiftly. Thus, the degree of compound lipophilicity and binding to blood cells and plasma proteins are good predictors of its bioavailability and help enable (or may discourage) clinical translation.⁶⁷

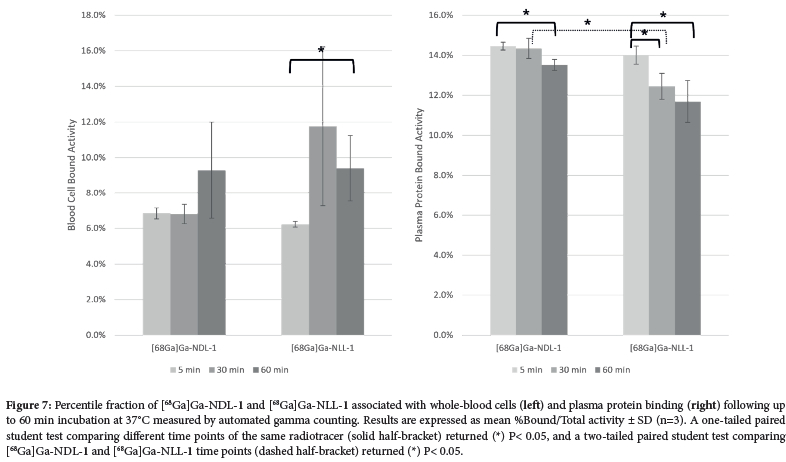

Herein, radio-conjugate blood cell association, serum protein binding and LogD_7.4 (lipophilicity) were quantified to identify the blood residence time and test proteolytic stability. Both radio-conjugates showed low levels of blood cell and serum protein binding (Figure 7), which is a promising feature allowing for the prediction of potential in vivo behaviour following intravenous injection of [⁶⁸Ga]Ga-NDL-1 or [⁶⁸Ga]Ga-NLL-1. These results are in line with the low lipophilicity observed for both radio-conjugates (LogD_7.4 =-2.78 ± 0.12 and -2.78 ± 0.06, respectively). While the low blood-content binding is encouraging, the LogD_7.4 value indicates that these compounds are extremely hydrophilic, which may restrict penetration of the hydrophobic bacterial outer-membrane (OM) in order to reach the target bacterial PG, prevent access to intracellular pathogens through lack of cell-wall penetration, or prevent sufficient interaction/binding with the target penicillin binding proteins (PBP) or transpeptidase proteins responsible for D-AA incorporation due to its polar surface area. Membrane-transport, however, may still be possible owing to the low molecular weight (MW) of the NDL- 1/NLL-1 compounds. For instance, the outer membrane of gram-negative bacteria contains porins that allows import of water-soluble materials with a reported MW cargo-cutoff size of ~600 g/mol, larger than the MW of radiolabeled and unlabelled NDL-1/NLL-1.^{31, 68}

Interestingly, for [⁶⁸Ga]Ga-NLL-1, a significant increase in blood cell association was observed after 60 min (P< 0.05). In terms of serum protein binding, a significant decrease was observed at 60 min for both radioconjugates (P< 0.05). However, a significantly larger decrease was observed for [⁶⁸Ga]Ga-NLL-1 within 30 min compared to its D-stereoisomer. Thus, it is plausible that some form of molecular interaction specific to L-amino acids may contribute to the observed differences in binding.

Since radiotracers are designed with high target specificity, it is important that the radiotracer remains stable in blood circulation until it reaches the target. If a radiotracer is not stable in blood plasma due to premature degradation or metabolism, the resulting fragments may exhibit altered biodistribution and non-specific off-target binding which can compromise PET image quality. Thus, the blood plasma enzymatic stability of [⁶⁸Ga]Ga-NDL-1 and [⁶⁸Ga]Ga-NLL-1 were tested for up to 120 min to determine their clinical translation potential.¹³

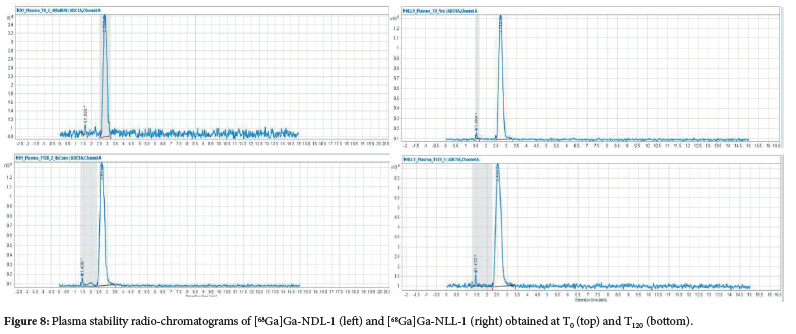

Both compounds remained stable throughout the duration of the challenge, with no emergence of free ⁶⁸Ga-species or ⁶⁸Ga-labeled byproducts being observed. The results are displayed in Table 6, and comparative examples of the radio-chromatogram results for both radio-conjugates between T₀ and T₁₂₀ are displayed in Figure 8. It should be noted that, owing to the inherent limitations of our radio-HPLC method, the possibility of co-eluting degradation by-products cannot be excluded. It should also be noted that degradation ofthe radio-conjugate may lead to the release of ⁶⁸Ga, followed by sequestration by blood contents through either trans-chelation or electrostatic interaction between plasma proteins and degradation by-products through co-precipitation with EtOH during sample preparation. However, this scenario seems highly unlikely because the quantified percentage of protein-bound radio-conjugates significantly decreased over time for both [⁶⁸Ga]Ga-NDL-1 and [⁶⁸Ga]Ga-NLL-1 (Figure 8). This aspect is important, as the research scope for future studies is to evaluate whether [⁶⁸Ga]Ga-NDL-1 is a bacteria-selective imaging agent. In contrast, [⁶⁸Ga]Ga-NLL-1 is utilised as the negative control to demonstrate unwanted distribution and unspecific accumulation in bacteria based on the knowledge of the compound selectivity and specificity of PG biosynthesis, turnover, and remodelling.^{26, 31, 69}





CONCLUSION

To summarize, conjugation of small molecules with a metal-chelator to facilitate ⁶⁸Ga-radiolabeling is still a relatively unexplored concept due to the obvious change the relatively bulky chelator imparts.^{61, 70} However, the unselective nature of D-AA utilization and incorporation into bacterial PG, even when functionalised with relatively bulky fluorophores, provides a unique opportunity to explore ⁶⁸Ga-radiolabeling of a single amino acid.³¹ Thus, we developed a chemical synthesis for NODASA-functionalised D-lysine/L-lysine derivatives, and tested ⁶⁸Ga chelation to form a radiolabeled product stable enough for further assessment as novel bacterial-specific radiopharmaceutical. The radiolabeling strategy was thus tested and optimized to achieve high RCY (81.7 ± 3.2%) and A_m (17.1 ± 0.8 GBq/µmol).

Our research shows that radiolabeling small, hydrophilic molecules using gallium radiochemistry methods poses its own challenges when it comes to purifying the resulting radiolabeled compounds. We highlighted that silica-SPE may prove useful in ⁶⁸Ga-radiochemistry as an alternative to reverse-phase and ion-exchange resins by showing that separation of [⁶⁸Ga]Ga-NDL-1/NLL-1 from colloidal-⁶⁸Ga-species and unreacted ionic ⁶⁸Ga-species is possible. However, further investigation is warranted to characterize the capture and desorption behaviour of free, ionic ⁶⁸Ga species and generator-produced metal-contaminants, as according to our knowledge, no literature on this topic is available.

Through preliminary assays, we demonstrate that the [⁶⁸Ga] Ga-NDL-1/NLL-1 compounds possess favorable physiochemical properties, such as high thermodynamic stability, kinetic inertness, proteolytic stability, and minimal blood content binding. These properties support future evaluation of [⁶⁸Ga]Ga-NDL-1 as a bacterial-specific PET imaging agent, which will be assessed through in vitro bacteria cell uptake studies and small animal PET imaging studies.



SUPPLEMENTARY INFORMATION

The radio-HPLC, ITLC and LCMS data of synthesized radiotracer precursors and crude radiolabeled products are available in the supporting information.



ACKNOWLEDGEMENTS

The authors would like to thank the National Research Foundation (NRF) of South Africa, Catalysis and Peptide Research Unit (CPRU), College of Health Sciences (CHS), University of KwaZulu-Natal, The South African Nuclear Energy Corporation (Necsa), Nuclear Medicine Research Infrastructure (NuMeRI, NPC), Pre-clinical Imaging Facility (PCIF) staff, and Steve Biko Academic Hospital, Department of Nuclear Medicine, University of Pretoria.



AUTHOR CONTRIBUTIONS

CAG: Conceptualization, Methodology, Synthesis, Radiolabeling, Stability Testing, Data Analysis, Writing - Original Draft; TN: Methodology, Writing - Review & Editing, Supervision, Funding Acquisition; JD: Radiolabeling, Stability Testing, Data Analysis; BGT: Methodology, Synthesis, Data Analysis; FA: Methodology, Synthesis, Data Analysis; HGK: Supervision, Funding Acquisition, Writing - Review & Editing; BMP: Radiolabeling, Data Analysis; SM: Radiolabeling, Data Analysis; JRZ: Writing - Review & Editing, Supervision, Funding Acquisition; TE: Methodology, Writing - Review & Editing, Supervision, Funding Acquisition; TG: Conceptualization, Methodology, Writing - Review & Editing, Supervision, Funding Acquisition.



DECLARATION OF COMPETING AND FINANCIAL INTERESTS

The authors declare that there are no competing interests.



DECLARATION OF GENERATIVE AI AND AI-ASSISTED TECHNOLOGIES

The authors declare the use of Google Copilot to assists with language and text editing.
