SOCIETY OF MINING PROFESSORS 6TH REGIONAL CONFERENCE



Mining and metallurgical wastes: a review of recycling and re-use practices





E. Matinde^I; G.S. Simate^I; S. Ndlovu^{I, II}

^ISchool of Chemical and Metallurgical Engineering, University of Witwatersrand, South Africa
^IIDST/NRF SARChI: Hydrometallurgy and Sustainable Development, School of Chemical and Metallurgical Engineering, University of the Witwatersrand, South Africa





---

SYNOPSIS

Mining and metallurgical processes produce significant amounts of waste. In South Africa, mining and metallurgical wastes constitute one of the biggest challenges to the environment. If not managed properly, these types of wastes can result in irreversible damage to the environment and constitute a hazard to humans. Despite the environmental challenges associated with mining and metallurgical wastes, the mining and metal extraction industries can be integrated to form a circular economy model that promotes zero waste through the recycling and re-use of these waste materials. In other words, the different waste streams can in fact be considered as secondary sources of valuable minerals and metals. In this paper we review some of the research and emerging trends in the recycling and re-use of mining and metallurgical wastes. A brief overview is provided of how some of the key aspects of sustainability can be integrated into the teaching and research space in engineering sciences.

Keywords: mining and metallurgical wastes, circular economy, sustainability, recycling, re-use.

---





Introduction

Mining is a complex process involving activities that range from exploration through mine development, mineral beneficiation, metal extraction, smelting, refining, reclamation, and remediation (Bian et al., 2012; Ndlovu, Simate, and Matinde, 2017). In the process of extracting the metal values, these activities produce significant amounts of wastes, typically consisting of (1) solid wastes in the form of waste rock, dusts, sludges, and slags, (2) liquid wastes in the form of waste water and effluents, and (3) gaseous emissions. In South Africa, mining and metallurgical wastes constitute one of the biggest challenges to the environment. If not managed properly, the anthropogenic effects of these mining and metal extraction activities can result in irreversible damage to the environment and a hazard to humans. In South Africa, in particular, these types of wastes are usually disposed of in landfills, thereby creating serious environmental and health challenges for communities. Mitigating the effects of such mining, metallurgical, and metal manufacturing processes requires a holistic waste management approach that incorporates reduction in the amount of waste produced, in-process recycling, and finding new markets and applications in other sectors of the economy (Lottermoser, 2011; Environmental Protection Agency, 2015; World Steel Association, 2015; Ndlovu, Simate, and Matinde, 2017). As such, increasing the recycling and re-use of the different types of wastes is a potential panacea to the environmental and health challenges posed by these waste streams. Despite the environmental challenges associated with these types of wastes, the mining and metal extraction industries can be integrated to form a circular economy model that promotes zero waste through the re-use and recycling of these waste materials (Lottermoser, 2011; EPA, 2015; World Steel Association, 2015; Ndlovu, Simate, and Matinde, 2017; Flanagan, Grail, and Johnson, 2016). The different waste streams can in fact be considered as secondary sources of valuable metals and other resources.

Circular economy, recyclability, recycling, and re-use have been identified as some of the emerging paradigms that can drive the multidimensional aspects of sustainability in the mining and metal extraction industries. In this context, a sustainable circular economy is defined as a transition where the value of products, materials, and resources is maintained in the economy for as long as possible, and the generation of waste minimized (European Commission, 2015; World Steel Association, 2015). The broad objective of a circular economy model is to reduce the linear flow of materials through recycling and re-use in order to rejuvenate the life-cycle of a material (Ndlovu, Simate, and Matinde, 2017). Lottermoser (2011) defined the recycling of mine wastes as a practice that extracts new valuable resource ingredients, or uses the waste as feedstock, and/or converts the entire waste stream into a new valuable product.

Recyclability refers to the amenability of waste materials to be captured and converted into a new material and/or re-used in the same capacity (Ndlovu, Simate, and Matinde, 2017). According to Ndlovu, Simate, and Matinde (2017), the recyclability of a waste material is driven by technological and economic factors. In essence, the recyclability of materials depends on the availability of methods and technologies as well as the existence of markets for the recycled products. Finally, the World Steel Association (2015) broadly defined the term re-use as using an object or material again, either for its original purpose or for a similar purpose, without significantly altering the physical form of the object or material. Although most of these terms are used loosely and interchangeably by various stakeholders, some of the short- and long-term benefits of recycling and re-use of mining and metal extraction wastes include (Lottermoser, 2011): (1) creating financial assets, (2) increasing resource efficiency by reducing the linear consumption of natural resources, (3) reducing waste production and accumulation, (4) encouraging innovation and growth of local industry spin-offs, (5) creating employment, and (6) shared responsibility and ownership over the environment.

In line with these emerging paradigms of environmental responsibility and sustainable development, the broad objective of this paper is to explore sustainable alternatives to the primary supply of metals from mined ores through recycling and re-use of mining and metal extraction wastes. In detail, this paper provides a critical review of the emerging body of knowledge on recycling and re-use of these waste materials. In addition, we propose potential approaches that can contribute to unlocking the economic value of mining and metallurgical wastes by integrating some of the key sustainability drivers into the teaching and learning of engineering sciences.



Categories of mining, metallurgical, and industrial wastes

Basically, waste is a complex, subjective, and sometimes a controversial issue and, in fact, a review of literature reveals an ongoing international debate on the definition of waste (Ndlovu, Simate, and Matinde, 2017). Nevertheless, waste is generally defined by many environmental bodies as any discarded, rejected, abandoned, unwanted, or surplus matter, whether or not intended for sale or for recycling, reprocessing, recovery, or purification by a separate operation from that which produced it (Ndlovu, Simate, and Matinde, 2017). Waste is generated in all sorts of ways, and its composition and volume depend largely on consumption patterns and the industrial and economic structures in place. Waste may exist in solid, liquid, or gaseous form. However, waste, in whatever form, is one of the world's largest concerns and gives rise to both public health and environmental concerns (Bian et al., 2012). Environmental threats may include contamination of groundwater and surface water by leachates, as well as air pollution from burning of waste that is not properly disposed of. Therefore, in the recent past, the effects of waste, particularly mining and metal extraction wastes, have been the focus of critical attention (Lottermoser, 2011; Bian et al., 2012; Reck and Graedel, 2012; Ndlovu, Simate, and Matinde, 2017).

Inasmuch as the generation of mining and metallurgical wastes is inevitable in the production of industrial materials, conventional waste management practices to date have focused on how to manage the way in which the waste is generated and disposed of (Hering, 2012). In fact, mining, metallurgical, and industrial wastes are considered to have little or no apparent economic use, and are thus usually discarded and/or landfilled (Lottermoser, 2011; Bian et al., 2012; Ndlovu, Simate, and Matinde, 2017). Despite protracted efforts to reduce the amount of waste produced by the mining and metallurgical industries, these types of wastes still constitute one of the world's largest waste streams (Bian et al., 2012). Table I provides an overview of some of the types of wastes produced in the mining and metals extraction industry (Lottermoser, 2011; Rankin, 2011; Ndlovu, Simate, and Matinde, 2017).



Legislative framework governing mining and metallurgical wastes

Over the years, environmental laws and social awareness programmes have been promulgated in order to mitigate the potential threats of mining and metallurgical wastes (Table II). Basically, these environmental and social regulations are of universal importance, and revolve around environmental protection, protection of local communities, and promotion of business ethics (Phadke et al., 2014; Ndlovu, Simate, and Matinde, 2017). Despite the lack of consensus, and varying degree of legislative scope and effectiveness, various regulations and policies have been enacted so as to control the disposal and/or recycling of these types of wastes (Kumar and Singh, 2013; EPA, 2015; Ndlovu, Simate, and Matinde, 2017). Table II shows some of the selected environmental policies and regulations from the USA, EU, and South African jurisdictions (European Commission, 2006, 2008, 2010a, 2010b; Environmental Protection Agency, 2015; Ndlovu, Simate, and Matinde, 2017).

Inasmuch as there are no agreed-upon quintessential guidelines or legislation on the management of mining and metallurgical wastes, the different legislations converge towards one objective of environmental protection and sustainability. Ironically, the Bill of Rights, as enshrined in Chapter 2 of the South African Constitution (Act No. 108 of 1996), clearly stipulates the universal rights of citizens to environmental protection while promoting economic and social development. Furthermore, the USA's RCRA (1976) and the European Commission's Extracting Waste (Mining) Directive (2006/21/EC) have a strong emphasis on sustainability. These legislations specifically require operators to draw up waste management plans for the minimization, treatment, metal recovery from, and disposal of mining and extractive wastes.

In addition to the specific directives, the European Commission has also drawn up extensive industrial emissions directives (IED, 2010/75/EU) (European Commission, 2010b). The principal focus of these directives is to provide the best available techniques (BATs) and emerging techniques towards the reduction, recycling, and reuse of various waste streams across various industries (European Commission, 2010a, 2010b). In South Africa, for example, the various Acts clearly mandate the need for environmental responsibility with respect to air, water, and ground contamination, and further emphasize the mandatory rehabilitation of the affected environment. Globally, the convergence of the discrete legislations in these various jurisdictions has since resulted in a standardized ISO 14000 series, the main objective of which is to provide a standardized and effective management system.



Recycling and re-use: ongoing research and emerging trends

As discussed earlier, the circular economy model mandates the reduction, recycling and re-use of mining and metallurgical wastes. Based on the categories of wastes highlighted in Table I, the following sections outline the typical recycling and re-use opportunities of selected categories of mining and metal extraction wastes based on the emerging paradigms of converting wastes to valuable resources.

Waste rock, overburden, and beneficiation waste

As indicated in Table I, waste rock and overburden originate from materials overlying the area to be mined and which are moved in order to gain access to the orebody. These materials range from being barren (e.g., waste rock) to containing minerals at concentrations that are considered too low to be economically extracted (e.g., overburden). Mineral beneficiation waste, on the other hand, refers to tailings and/or residual materials generated from the mineral beneficiation processes (Ndlovu, Simate, and Matinde, 2017). Basically, mineral beneficiation wastes consist of rock, soil, loose sediment, and fine to ultrafine particles (Lottermoser, 2011; Bian et al., 2012; Ndlovu, Simate, and Matinde, 2017). Corollary to waste rock and overburden, the mineralogical characteristics of beneficiation wastes are usually highly heterogeneous as a result of the deposition of waste streams arising from different stages in the processing chain(Bian et al., 2012; Edraki et al., 2014). Furthermore, the amounts and complexity of waste rock, overburden, and beneficiation wastes vary significantly depending on the type of commodity, physical, and chemical composition of the mineralization, and the mining and processing methods used (Lottermoser, 2011; Bian et al., 2012; Flanagán, Grail, and Johnson, 2016; Ndlovu, Simate, and Matinde, 2017).

Millions of tons of waste rock, overburden, and beneficiation wastes are produced by the global mining industry. Due to their low intrinsic value, and the remote location of most mining operations, over 95% of these materials end up being disposed in landfills (Lottermoser, 2011; Bian et al., 2012; Flanagán, Grail, and Johnson, 2016; Ndlovu, Simate, and Matinde, 2017). However, disposal is associated with environmental challenges such as acid rock drainage, airborne dust emissions, and contamination of surface- and groundwater sources. Although these materials are generally classified as non-hazardous, increasing their recycling and re-use potential can provide sustainable and cost-effective alternatives to mitigate the disposal and waste management challenges.

To date, extensive research has been conducted in order to mitigate the environmental impacts, as well as increasing the valorisation potential, of waste rock, overburden, and beneficiation wastes (Lottermoser, 2011; Bian et al., 2012; Lébre and Corder, 2015; Flanagán, Grail, and Johnson, 2016; Ndlovu, Simate, and Matinde, 2017; Gorakhki and Bareither, 2017). In addition to the widely adopted uses such as feedstock for cement, concrete, and aggregates in construction industry, waste rock and overburden can also be re-used as low-grade resources of valuable minerals and metals, as backfill materials for open voids, as landscaping materials, as capping materials for waste repositories, and as substrates for mine revegetation (Lottermoser, 2011; Bian et al., 2012). Other waste streams such as mine drainage sludges can be economically reprocessed to extract metals and mineral compounds, or can be re-used as flocculants and/or adsorbents to remove phosphates from sewage and agricultural effluents, as well as soil additives in agriculture. Beneficiation tailings, on the other hand, can be reprocessed to extract metals and metals compounds, while sand-rich tailings can be mixed with cement and used as backfill in underground mines. Clay-rich tailings can be used as amendments to sandy soils and for the manufacture of bricks, cement, floor tiles, sanitary ware, and porcelains (Lottermoser, 2011). Furthermore, Lottermoser (2011) proposed the potential use of ultramafic tailings in the production of glass and rock wool, and phlogopite-rich tailings for use in sewage treatment. Nevertheless, the proposed re-use opportunities entail their own challenges. For example, the heterogeneous composition and complex mineralogy of these materials may affect the physical and chemical properties of intended products and processes. Furthermore, mining and beneficiation wastes may contain elevated amounts of transition metal elements, toxic elements, and reactive minerals, which can contaminate the environment (Lottermoser, 2011; Bian et al., 2012). The low intrinsic value may further be exacerbated by the remote location of most mining operations and distance from mine site to potential markets (Lottermoser, 2011; Bian et al., 2012).

Metal recovery from acid mine drainage

Acid mine drainage (AMD) is an environmental problem related to the release of acidic, sulphate- and metal-containing waste water into the environment. AMD is generated when sulphide-bearing minerals such as pyrite (FeS2) are exposed to both oxygen and water, as well as the presence of acidophilic chemolithotrophic microorganisms. In general, the oxidation of FeS2 in the presence of oxygen and water takes place as depicted in Equation [1] (Simate and Ndlovu, 2014):

2FeS₂ + 70₂ + 2H₂0 → 2Fe²⁺ + 4SO^2-₄ + 4H⁺ [1]

AMD may also be generated from various sources such as mine waste rock, tailings, or mine structures such as active, closed, or abandoned pits and underground workings (Simate and Ndlovu, 2014; Ndlovu, Simate, and Matinde, 2017).

The effects of untreated AMD on the health of humans, wildlife, plants, and aquatic species are well documented (Akcil and Koldas, 2006; Ma and Banfield, 2011; Simate and Ndlovu, 2014). Consequently, much research has been dedicated to finding remediation solutions for AMD. Basically, remediation techniques focus on the treatment of the already-produced AMD before it is discharged into water bodies (Chowdhury, Sarkar, and Datta, 2015). In principle, remediation technologies can be broadly categorized as active or passive. Further details of the remediation techniques are well documented by Johnson and Hallberg (2005). The challenge with the conventional remediation processes is that they generally result in new waste streams that would require further treatment and/or disposal. Furthermore, the treatment residues may still contain the elements and compounds removed from the mine drainage, as well as the additives dosed during the treatment processes (Simate and Ndlovu, 2014).

As already stated, AMD is rich in dissolved metal sulphates, which are formed in a complex process from the oxidation of pyrite and other sulphide minerals like pyrrhotite, marcasite, chalcocite, covellite, arsenopyrite, and chalcopyrite. Due to the need for metal-containing resources and increasingly stringent environmental conditions, AMD is currently being considered for metal recovery as part of the larger AMD remediation strategy (Nordstrom et al., 2017). In fact, there are several such techniques used to recover metals from AMD, and these are primarily driven by incentives such as (Simate and Ndlovu, 2014): (1) reducing the amounts of waste sludge and brine products that require handling and disposal and incur potential long-term environmental liabilities, (2) generation of revenue streams to partly or fully offset the ongoing treatment and metal recovery costs, and (3) contributing to the long-term sustainability of mine water treatment projects.

To date, the removal and/or recovery of metals as hydroxide precipitates from AMD using alkaline reagents (e.g. NaOH) has been the most widely adopted method (Johnson and Hallberg, 2005; Balintova and Petrilakova, 2011). Unfortunately, this technique has several drawbacks, including the generation of large volumes of hazardous concentrated sludge (Macingova and Luptakova, 2012; Ndlovu, Simate, and Matinde, 2017), and the fact that the selective extraction of metals is very difficult (Simate and Ndlovu, 2014; Ndlovu, Simate, and Matinde, 2017). There are several other methods used to treat AMD and/or recover metals. These techniques, which will not be discussed in detail in this paper, include solvent extraction, reverse osmosis, ultrafiltration, electrodialysis, ion exchange/adsorption, and wetland treatments (Ndlovu, Simate, and Matinde, 2017).

It must be noted that, in the recent past, a paradigm shift has taken place in the way AMD is viewed. Basically, research interests have shifted towards the recovery of valuable materials from AMD, in addition to its remediation. Apart from valuable metals, there are other industrially and economically useful products that can be recovered from AMD treatment processes (Simate and Ndlovu, 2014). Typical examples include saleable products such as sulphur, sulphuric acid, pigments, and metal sulphates; production of electricity; alkaline earth compounds such as calcium carbonate and magnesium hydroxides; building and construction materials such as gypsum and cement; agricultural materials (e.g. fertilizer), adsorbents used in municipal and industrial wastewater treatment; and pigments (e.g. ferrihydrites).

Metal recovery and recycling of metallurgical dusts

Metallurgical dusts consist of heterogeneous mixtures of complex oxides from feed and process materials entrained in the off-gas from smelting and refining furnaces. Large volumes of these waste materials are produced in processes such as the blast furnace ironmaking process, raw material agglomeration (e.g., coke, sinter, and pellet plants), electric arc furnaces (EAFs), basic oxygen furnaces (BOFs), stainless steel refining, base metal smelting and converting, and in submerged arc furnaces (SAFs) for ferrochrome and ferromanganese production (Ma and Garbers-Craig, 2006; Ndlovu, Simate, and Matinde, 2017). The physico-chemical properties of metallurgical dusts vary greatly depending on the process design, process parameters, operational procedures, and the type of raw materials used (Nyirenda, 1991; Palencia et al., 1999; Beukes, van Zyl, and Ras, 2010; Tangstad, 2013; de Buzin, Heck, and Vilela, 2017). For example, about 7-45 kg of blast furnace particulate dusts containing 100-150 g of Zn are produced per ton of hot metal (tHM). These materials are classified as hazardous waste in most jurisdictions due to the presence of toxic metal elements such as Pb, Cr, Zn, and Cd, and as such, cannot be disposed of in landfills without some form of pretreatment and/or stabilization (Nyirenda, 1991; European Commission, 2008; 2010a, 2010b; Beukes, van Zyl, and Ras, 2010; Environmental Protection Agency, 2015; de Buzin, Heck, and Vilela, 2017; Ndlovu, Simate, and Matinde, 2017). Furthermore, metallurgical dusts are extremely fine and difficult to handle (Palencia et al., 1999; de Buzin, Heck, and Vilela, 2017). Despite these materials being rich in valuable metals, their direct in-process recycling is usually constrained by the potential build-up of deleterious and volatile metal compounds in the process (Bian et al., 2012; Remus et al., 2013; Ndlovu, Simate, and Matinde, 2017). Table III summarizes some of the characteristic properties and the recycling options applicable to selected categories of metallurgical dusts (Remus et al., 2013; Lin et al., 2017; Ndlovu, Simate, and Matinde, 2017).

The metallurgical dusts produced in the iron and steel manufacturing processes, for example, consist mainly of heterogeneous mixtures of complex oxides of feed materials entrained in the off-gas. As a result, these materials tend to contain significant amounts of iron, reductants, and alloying elements. To date, several processes have been developed, or are being investigated, in order to recover valuable metallic elements contained in metallurgical dusts while ensuring an environmentally benign barren product. Generally, two process options exist for the recovery of value metals from ferrous metallurgical dusts: pyrometallurgical and hydrometallurgical processes. Pyrometallurgical processes use thermal energy to separate the desired metals from other materials based on the differences between oxidation potentials, melting points, vapour pressures, densities and/or miscibility of the dust components when melted (Abdullah, 2013). In contrast, in hydrometallurgical technologies the desired metals are separated using techniques that capitalize on differences between constituent solubilities and/or electrochemical properties while in aqueous solution (Abdullah, 2013).

Metal recovery and recycling of ferrous metallurgical dusts using pyrometallurgical processes

As indicated in Table III, the direct recycling of ferrous dusts is limited by the presence of volatile toxic metal compounds such as Zn, Cd, As, and Pb. In steelmaking, for example, Zn-bearing compounds such zincite (ZnO) and franklinite (ZnFe₂O₄) are particularly problematic due to the heavy reliance on use of galvanized steel scrap as feed to these processes. The pyrometallurgical processing of ferrous dusts revolves around the carbothermic reduction sequence ZnFe₂O_4(s)→ ZnO(s) + Fe₂O_3(s)→ Zn_w + Fe_M → of ZnFe2O4 in dusts, and the resultant volatilization of the zinc before recovery in the downstream condensers (Lin et al., 2017; Ndlovu, Simate, and Matinde, 2017).

To date, several pyrometallurgical approaches have been extensively applied globally in the economic recycling of ferrous metallurgical dusts. Table IV summarizes some of the processes for metal recovery and recycling of common metallurgical dusts (Palencia et al., 1999; Lin et al., 2017; Ndlovu, Simate, and Matinde, 2017).

Metal recovery and recycling from metallurgical dusts using hydrometallurgical processes

The major advantages of the pyrometallurgical processes developed so far lie in their ability to economically process metallurgical dusts containing high amounts of Zn existing as ZnFe2O4 (Ndlovu, Simate, and Matinde, 2017; Lin et al., 2017). However, these processes are sensitive to economies of scale, have high thermal energy requirements, and require elaborate dust collection systems and additional steps to recover volatile metals from the flue gas (Ndlovu, Simate, and Matinde, 2017). As a result, the application of hydrometallurgical processes in the recovery of metals from metallurgical dusts is slowly gaining prominence due to their greater flexibility of operation and the required economies of scale. Hydrometallurgical processes also have lower capital costs and few or no environmental challenges associated with flue gases, dusts, and noise. Notwithstanding some of these advantages, the technical and economic feasibility of hydrometallurgical processes requires careful management of water, waste water, and process solutions (Palencia et al., 1999; de Buzin, Heck, and Vilela, 2017; Ndlovu, Simate, and Matinde, 2017). In addition, the widespread adoption of hydrometallurgical processes has largely been constrained by the complex physical, chemical, and mineralogical characteristics of the dust materials. For example, most of the zinc in typical EAF dusts occurs as franklinite (ZnFe₂O₄), which is stable and insoluble in most acidic, alkaline, and chelating media under conventional conditions (Palencia et al., 1999; Miki et al., 2016; de Buzin, Heck, and Vilela, 2017; Ndlovu, Simate, and Matinde, 2017). Furthermore, hydrometallurgical processes using conventional leaching and chelating media also suffer from poor selectivity and co-dissolution, thereby increasing the complexity of downstream solution purification processes. As a result, several alternative leaching and pretreatment processes have been proposed, or are being investigated, in order to improve the kinetics and economics of the leaching processes (Leclerc, Meux, and Lecuire, 2002; Abott et al., 2006, 2009; Steer and Griffiths, 2013; Bakkar, 2014; Chairaksa-Fujimoto et al., 2015; Miki et al., 2016; Chairaksa-Fujimoto et al., 2016; Binnemans and Jones, 2017; Xing, Wang, and Chen, 2017).

Emerging trends in the recycling and re-use of metallurgical dusts and other residues

Pretreatment and leaching of ferrous dusts-As discussed in the preceding sections, the presence of the refractory ZnFe2O4 spinel presents challenges to the conventional leaching of these materials in aqueous media. As such, several studies have focused on the thermal pretreatment of Zn-bearing dusts before the leaching process (Chairaksa-Fujimoto et al., 2015; Miki et al., 2016; Chairaksa-Fujimoto et al, 2016; Yakornov et al., 2017). Chairaksa-Fujimoto et al. (2015) investigated the effect of CaO addition on the conversion of ZnFe2O4 in industrial EAF dust. Their findings confirmed that the ZnFe2O4 spinel can be decomposed by thermal treatment in the temperature range 900-1100°C and in the presence of a stoichiometric amount of reactive CaO to produce ZnO and Ca2Fe2O5, as shown in Equation [2] (Chairaksa-Fujimoto et al. (2015):

Based on the thermodynamic feasibility of reaction [2] at the temperatures investigated, the authors have demonstrated that 100% of the ZnO can be selectively leached in conventional acidic or alkaline media after 4 hours, compared to 40% leaching efficiency in the case of the as-received sample (Chairaksa-Fujimoto et al., 2015, 2016).

Since the solubilities of iron and calcium were negligible under the experimental conditions investigated, the Ca2Fe2O5 residue can be used as a dephosphorization fluxing agent in the steelmaking process.

Application of solvometallurgy in the recovery of metals from secondary resources-In order to increase the leachability and selectivity, the use of non-aqueous solvents in the form of molecular organic solvents, ionic liquids, deep eutectic solvents, organic solvents, and supercritical carbon dioxide, among others, has been explored in detail (Leclerc, Meux, and Lecuire, 2002; Abbott et al., 2005, 2006, 2009, 2011; Nockemann et al., 2006, 2008; Steer and Griffiths, 2013; Kilicarslan et al., 2014, 2015; Kilicarslan and Saridede, 2015; Davris et al., 2016; Amarasekara, 2016; Wang et al., 2016a, 2016b; Abbott et al., 2006a, 2006b, 2009; Park et al., 2014; Binnemans and Jones, 2017). Of particular interest in recent years is the use of ionic liquids, in the form of protic ionic liquids and carboxyl acid group functionalized ionic liquids, in the leaching of metals from a variety of ores and secondary resources (Abbott et al., 2005; 2006a, 2006b, 2009, 2011; Kilicarslan et al., 2014; 2015; Kilicarslan and Saridede, 2015; Amarasekara, 2016; Wang et al., 2016a, 2016b; Park et al., 2014; Binnemans and Jones, 2017). Ionic liquids are low-temperature molten salts comprising cations and organic/inorganic anions, and are increasingly gaining traction due to their desired properties such as non-volatility, low toxicity, good ionic conductivity, and wide electrochemical potential window (Park et al., 2014).

Kilicarslan et al. (2014) investigated the use of 1-butyl-3-methyl-imidazolium hydrogen sulphate (bmim+(HSO₄-)) ionic liquid in the presence of hydrogen peroxide (H₂O₂) and potassium peroxymonosulfate (oxone) as the oxidants for leaching brass wastes containing 3.4% Al, 5.81% Ca, 22% Cu, 12.17% Si, and 53.92% Zn. The results show that 50 vol.% [bmim+]HSO₄- in aqueous media is an efficient ionic liquid for brass ash leaching, and resulted in dissolution efficiencies of 99% for Zn and 24.82% for Cu, even without the use of any oxidant. Other studies also indicated that pure zinc in brass waste could be recovered by leaching in Bronsted acidic ionic liquid and electrowinning (Kilicarslan and Saridede, 2015; Amarasekara, 2016).

Due to their similar solvent properties to ionic liquids, the use of deep eutectic solvents has also gained appreciable attention in the dissolution of metals oxides from secondary resources (Abbott et al., 2005, 2006a, 2011). Abbott et al. (2005) investigated the solubility of various metal oxides using low-temperature choline chloride (HOC₂H₄N(CH3)₃+ Cl-)-based deep eutectic solvents. Their findings, based on the solubility of metal oxides in 2:1 urea/choline chloride eutectic at 60°C, indicated that oxides such as ZnO, PbO₂, and Cu2O exhibit appreciable solubility, whereas the solubility of iron and aluminium oxides is low (Table V). The selectivity of the chosen deep eutectic solvents indicates the potential to selectively leach and separate the metals from complex metallurgical dust mixtures using electrochemical methods (Abbott et al., 2005, 2006, 2011).







Although the commercial adoption of solvometallurgy processes is still in its infancy, these techniques provide several advantages such as high selectivity, ability to recover the valuable metals in their pure states, and the ability to detoxify and produce environmentally benign residues.

Table VI summarizes some of the research that has been, or is being, conducted using hydrothermal treatment and leaching of metallurgical dusts and residues in non-aqueous solvents in order to enhance the leachability of metallurgical dusts and residues.

Synthesis of structural and functional materials-To date, the recovery of metals from metallurgical dusts using conventional pyrometallurgical and hydrometallurgical approaches has been implemented with varying degrees of success. In parallel to the ongoing efforts to recover valuable metals using these processes, extensive research is also being conducted to increase the valorisation potential by incorporating these materials in the synthesis of structural and functional materials such as glasses, ceramics, and soft magnetic ferrites (Barbieri et al., 2002; Rashad, 2006; Machado et al., 2011; Vieira et al., 2013; Stathopoulos et al., 2013; Wang et al., 2017a; Salamati, Younesi, and Bahramifar, 2017; Chinnam et al., 2017). Most of these studies have demonstrated the potential to synthesize high-value functional soft magnetic spinel ferrites (MFe₂O₄, where M is Ni, Cr, Zn, Mn, etc.) from the solid-state reaction, sintering, hot pressing, and/or densification of metallurgical dusts containing these materials. For example, Wang et al. (2017a) proposed an innovative one-step process for the synthesis of Ni-Zn spinel ferrites with high saturation magnetization (M_sapprox. 60.5 emug-1) and low coercivity [H_capprox. 49.8 Oe) from the solid-state reaction of EAF dust with NiCl₂-6H₂O at 1100°C for 2 hours. In other studies, Salamat, Younesi, and Bahramifar (2017) proposed a method to synthesize magnetic core-shell Fe₃O₄@TiO₂ nanocomposites from EAF dusts, with high degree of superparagnetism and photocatalytic activity for the decomposition of chemical oxygen demand (COD) in steel mill wastewater. The proposed processes practically demonstrated the potential to transform waste streams such as EAF dusts from problematic solid wastes to high-value-added products (Vieira et al., 2013; Stathopoulos et al., 2013; Wang et al., 2017a; Chinnam et al., 2017; Salamati et al., 2017). Table VII highlights some of the innovative approaches currently being employed to increase the valorisation potential by incorporating these materials in the synthesis of structural and functional materials.

Metal recovery, recycling and re-use of metallurgical slags

Metallurgical slags play indispensable roles in the efficient extraction of metals, and are produced in large volumes in pyrometallurgical smelting and refining processes (Pretorius and Nunnington, 2002; Reuter, Xiao, and Boin, 2004; Durinck et al., 2008). In fact, the solidified slag constitutes a high-volume by-product from most pyrometallurgical processes (Reuter, Xiao, and Boin, 2004; Durinck et al., 2008). During smelting and refining processes, slag separates from the metal/alloy and is tapped from the furnace before being granulated or slow-cooled. Depending on process design and conditions, solidified metallurgical slags contain significant amounts of entrained and/or dissolved metals, which can cause serious long-term environmental harm. For example, the presence of entrained and/or dissolved toxic metal species, such as chromium in stainless steel and ferrochromium alloy slags, can cause serious environmental problems due to the high leachability, mobility, and toxicity of the higher valence chromium Cr(VI) species (Durinck et al., 2008; Ndlovu, Simate, and Matinde, 2017). As a result, the current practice of disposing process slags in landfills presents environmental challenges, hence the need for protracted efforts to increase the recyclability and re-use potential of these materials (Ndlovu, Simate, and Matinde, 2017).

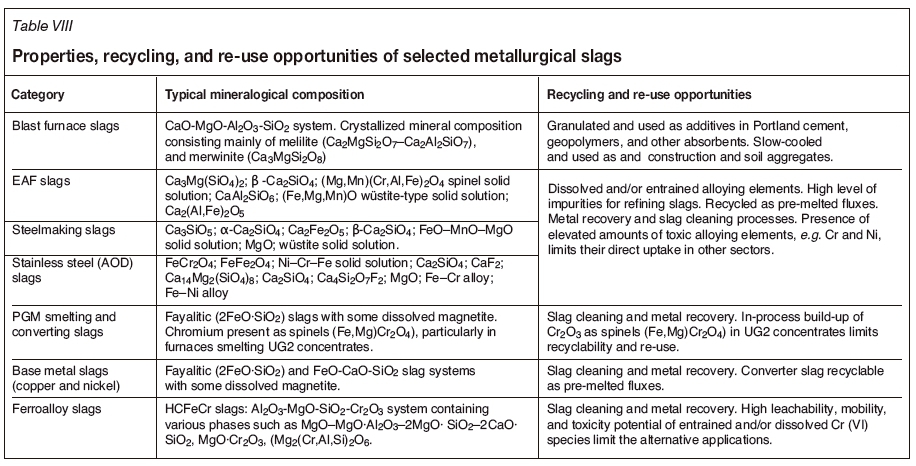

As indicated in Table VIII, there are several opportunities, as well as constraints, in the recycling and re-use of metallurgical slags. Nevertheless, the pyrometallurgical industry continues to explore opportunities in order to increase the valorisation potential of metallurgical slags. Several researchers have focused on the applications of metallurgical slags in other sectors of the economy (Reuter, Xiao, and Boin, 2004; Euroslag, 2017; Ndlovu, Simate, and Matinde, 2017). In particular, extensive research has been conducted on the application of the various types of process slags as construction materials (Euroslag, 2017; World Steel Association, 2015), in the manufacture of ceramics and other functional materials (Quijorna, Miguel, and Andres, 2011; Ponsot and Bernado, 2013; Karayannis et al., 2017), and as geopolymeric materials (Kalinkin et al., 2014; Huang et al., 2015). However, the presence of entrained and/or dissolved toxic metal elements, as well as the build-up of deleterious elements in the slag, is still a major constraint in the recycling and re-use of these materials.

Emerging trends in the recycling and re-use of metallurgical slags

In the past, research in pyrometallurgy focused mostly on improving process performance by optimizing the properties of slags (Mills, Yuan, and Jones, 2011), but largely ignored their environmental efficacy once the slags were tapped from the furnace. In other words, not much emphasis was placed on the holistic integration between the required properties of slags for process performance and their environmental performance after solidification and disposal. However, the drive for sustainability and environmental stewardship mandates the need to take into account the environmental effects of the slags. To date, emerging research in the pyrometallurgical industry is shifting towards both the in-process and post-process engineering of slag properties in order to achieve metallurgical and energy efficiency in the furnace while producing an environmentally benign slag.

Engineered slag structure-process-properties for recycling and environmental performance-The stabilization of dissolved and/or entrained toxic metal species in stable phases in various slags has drawn considerable attention in recent years (Barbieri et al., 1994; Kühn and Mudersbach, 2004; Tanskannen and Makkonen, 2006; Durinck et al., 2008a, 2008b; Albertsson, Teng, and Björkman, 2014; Santos et al., 2012; Albertsson, 2013; Cabrera-Real et al., 2012; Liapis and Papayiani, 2015; Piatak, Parsons, and Seal, 2015). In particular, Kühn and Mudersbach (2004) investigated the effect of MgO, Al2O3, and FeO additions to high-temperature slags. Their findings indicate that the addition of these compounds prior to the crystallization of high-temperature slags decreased the leachability of chromium species from the solidified slags. Cabrera-Real et al. (2012) investigated the effect of basicity (CaO/SiO₂) and MgO on the stability of the mineralogical phases formed during crystallization of CaO-SiO2-Cr2O3-CaF2-MgO slags. Mineralogical characterization of the solidified slag highlighted the predominance of MgCr2O4 spinels, and minor presence of CaCr2O4 and CaCr2O4 phases at CaO/SiO2 = 1. Increasing the CaO/SiO2 ratio to 2 resulted in the predominance of MgCr2O4, CaCr2O4, and the Cr (V)-containing complex Ca₅(CrO₄)₃F (Cabrera-Real et al., 2012). Based on the comparative TCLPs of chromium from the different phases, the findings indicated the highest leachability of Cr at CaO/SiO2 = 2, owing to the presence of potentially soluble CaCr₂O₄ and Ca5(CrO₄)₃F phases. The low leachability of MgO-stabilized slag phases was attributed to the predominance of MgCr2O4 spinel phases, which in essence, function to bind the Cr in a stable spinel (Cabrera-Real et al., 2012). The effect of basicity on the stabilization of chromium species in stable phases was also investigated by Albertsson (2013). Based on high-temperature engineered parameters such as alumina addition, heat treatment, and oxygen partial pressure, Albertsson (2013) proposed that the addition of alumina to molten slags was effective in binding the chromium in the MgAl2O4-MgCr2O4 stable spinel phases. Slow soaking of solidified slag at low temperatures and low oxygen partial pressure also improved the formation of the spinel phases and reduced the amount of chromium dissolved in water-soluble matrix phases. Conversely, the heat treatment of slags with CaO/SiO2 ratio greater than 1.4 under high oxygen potential accentuated the formation of leachable Cr-bearing phases (Albertsson, 2013).

In earlier studies, Barbieri et al. (1994) investigated the solubility, reactivity and nucleation of Cr2O3 in a CaO-MgO-Al₂O₃-SiO₂ glassy system. The slag system, containing up to 5 mol % Cr₂O₃, was melted at 1400°C and the effect of Mg content on the spinel formation was investigated. At the glass melting temperature, the reaction of Cr₂O₃ and MgO was proposed to proceed to form stable Mg2Cr2O4 spinels (Barbieri et al., 1994). Tanskanen and Makkonen (2006) also investigated the mineralogical and petrological characteristics of CaO-SiO2-Al2O3-MgO-Fe-Cr slags from high-carbon ferrochrome production. Their findings indicated that the slag solidified with a partly crystalline and porphyritic structure with hypidiomorphic spinel ((Mg,Fe)(Fe,Al,Cr)₂O₄) crystals enclosed in a homogenous glass matrix, as shown in Figure 1.

In line with the structure-process-property hypotheses, Durinck et al. (2008a, 2008b) investigated the hot stage processing of molten steelmaking slags in order to enhance the environmental performance of the solidified slags. Based on case studies on 2CaO-SiO₂ (C₂S)-driven disintegration and chromium leaching, Durinck et al. (2008a) proposed that the functional properties of solidified slags can be significantly enhanced by controlled additions to the high-temperature slags and/or by variations in the cooling path. In other studies, Liapis and Papayianni (2015) investigated the high-temperature in-process modification of high-carbon EAF slags using perlite (with non-normalized composition 76 wt.% SiO₂-14 wt.% Al₂O₃-3.4 wt.% Na₂O-2.7 wt.% K₂O-1.2 wt.% CaO-1 wt.% FeO_x), ladle furnace slags (with non-normalized composition approximately 62 wt.% CaO-14.5 wt.% SiO2-3.6 wt.% MgO-2.5 wt.% FeOx-2 wt.% Al2O3) and olivine (with non-normalized composition approximately 50 wt.% MgO-36 wt.% SiO₂-8.7 wt.% FeO_x-1.2 wt.% CaO) additives. Based on tailored chemical and mineralogical compositions, the modified EAF slag was found to be suitable for use in the production of normal weight cement concrete. Interestingly, the addition of slag modifiers had minimal interference on the process performance of the EAF (Liapis and Papayianni, 2015).

The studies highlighted so far support the hypothesis that the physicochemical properties of slag in the molten state can be engineered in order to obtain the desired solidified and crystal structure properties that are essential for improving the recycling and environmental attributes of metallurgical slags. In essence, the domain of slag engineering is a promising approach to controlling the solidification and crystallization properties of slags in order to improve their environmental compatibility. Slag engineering can improve the environmental performance of slags through binding the toxic metal species in stable spinel phases. In short, the objectives of slag engineering can be achieved by integrating the following aspects: (1) the post-tapping processing, solidification, and crystallization pathways, mineralogy, and speciation of entrained alloys in the slag, (2) evaluation of the efficacy of the proposed post-treatment methods based on TLCPs of the disposable and/or re-usable slag materials, and (3) correlating the structure, process and properties of slags to the broad recyclability and environmental performance.

Engineered structure-process-properties of ferrous slags for metal recovery-Inasmuch as slag cleaning using pyrometallurgical furnaces was the major focus to recover entrained and/or dissolved metals from slag, attention in recent years has shifted towards the recovery of metals from solidified slags by physical beneficiation methods. As discussed earlier, the engineered solidification and crystallization behavior of slags can result in the evolution of certain phases with desired properties that are essential for the recovery of metals from these materials. This means the speciation behaviour of alloys in discrete phases in rapidly cooled slags can be exploited in the physical beneficiation of these slag materials (Engström et al., 2010; Burja et al., 2017). In fact, the recovery of dissolved and/or entrained metals and alloys can be enhanced by hot-stage engineering of the microstructural properties of slag materials during crystallization and solidification (Durinck et al., 2008a, 2008b; Liapis and Papayianni, 2015). This approach is based on the hypothesis that certain phases with desired properties in solidified slags can be engineered and maintained during the solidification process in order to facilitate their separation from the solidified slag. Based on studies of the crystallization behaviour of steelmaking slags during rapid cooling, Engström et al. (2010) observed the formation of wüstite-type solid solution (Mg,Fe,Mn)O enclosed in ß-Ca₂SiO₄ phases. Burja et al. (2017) investigated the speciation of chromium in rapidly cooled CaO-SiO2-Cr2O3 and CaO-SiO2-MgO-Al2O3-Cr2O3 stainless steel slags. Based on X-ray diffraction analyses, the authors confirmed the presence of metallic Cr and FeCr phases, as well as the presence of calcium chromates, pseudowollastonite (CaSiO₃), and larnite (Ca₂SiO₄) (Burja et al., 2017). The formation of metallic Cr and FeCr phases was particularly observed in low-basicity slags containing high CrO_x levels (Burja et al., 2017). In other studies, Norval and Oberholster (2011) investigated the effect of granulation on the recovery of manganese from re-melted FeMn slags. Their findings indicate a significant difference in the residual MnO content of granulated and air-cooled slags, wherein the MnO content decreased to 6.1% in granulated slags compared with 21.8% in the air-cooled slags.

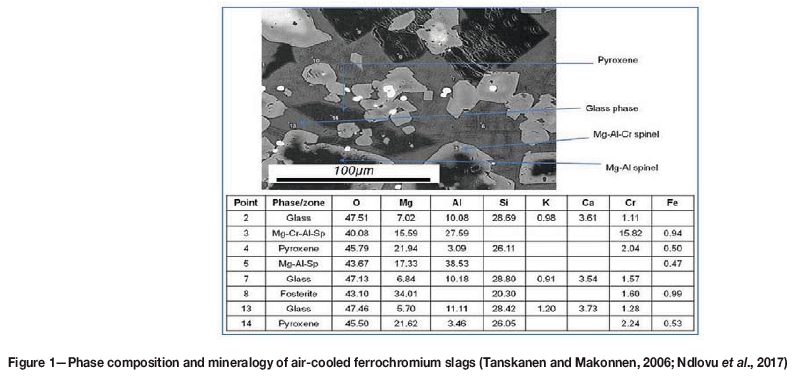

The formation in slags of certain phases with high magnetic susceptibilities can be engineered using post-furnace solidification processing, and such phases can be maintained during solidification to facilitate the separation of the alloys from solidified slag by magnetic separation. Based on the knowledge of soft magnetic properties of spinel ferrites synthesied by various methods (Viart et al., 2000; Sugimoto, 1999; Lakshmi, Kumar, and Thyagarajan, 2016; Zhang et al., 2016), the magnetic ferrite phases (MFe₂O₄, where M is Mn, Ni, Cr, Mo, etc.) in crystallized slags can be exploited in the magnetic separation from the bulk nonmagnetic components (Semykina and Seetharaman, 2011; Semykina, 2013; Shatokha et al., 2013; Sharma, Sharma, and Shah, 2014; Menad, Kanari, and Save, 2014; Ma and Houser, 2014; Li et al., 2015; Lakshmi, Kumar, and Thyagarajan, 2016; Zhang et al, 2016; Jiang et al, 2018). In other words, the transformation of nonmagnetic compounds of transition metals in slags to ferrites with high magnetic susceptibilities by controlled solidification and crystallization of molten slags is a promising method to increase the recovery of values from steelmaking slags.

As highlighted earlier, certain phases, such as MnFe2O4 and (Mg,Fe,Mn)O, in crystallized slags possess magnetic properties that can potentially be exploited in their magnetic separation from the bulk non-magnetic components of steelmaking slags (Semykina and Seetharaman, 2011; Semykina, 2013; Shatokha et al., 2013; Menad, Kanari, and Save, 2014; Ma and Houser, 2014; Jian et al., 2017). Semykina (2013) proposed a slag utilization technique that involves the ambient air oxidation of molten CaO-FeO-SiO2 and CaO-FeO-SiO2-MnO-Cr2O3 slags in order to precipitate ferrite phases that can then be recovered by magnetic separation. The proposed oxidation reactions are shown in Equations [11]-[13] (Semykina, 2013):



Based on the thermodynamic possibility of phase transformations in liquid slags highlighted in Equations [11]-[13], Shatokha et al., (2013) also investigated the selective recovery of iron and manganese values from oxidized CaO-SiO₂-FeO and CaO-SiO₂-FeO-MnO slags. In recent studies, Jiang et al. (2018) investigated the oxidation behaviour of BOF slag (CaO-SiO2-MgO containing 10-35 wt.% FeOx) under ambient air and selected temperature (1000-1100°C) conditions. Their findings also proved the potential to form magnetic spinel phases, in the form of magnetite (Fe₃O₄) and magnesio-ferrite (MgFe₂O₄), from the Fe-containing species in the slag. The studies highlighted so far substantiate the underlying hypotheses that the stable transition metal ferrites produced in liquid slag during solidification are amenable to separation from the bulk of the solidified slag by magnetic separation (Semykina and Seetharamn, 2011; Shatokha et al., 2013; Semykina, 2013; Jiang et al., 2018).

Recovery of sensible energy in molten slags-The pyrometallurgical extraction of metals is associated with high energy consumption. For example, the iron and steel manufacturing industry is one of the most energy-intensive industries, accounting for about 5-6% of global energy consumption (Duan et al., 2017). According to Barat et al. (2011), the energy consumption in high-temperature metal extraction processes is distributed between metal, slag, offgas, and environmental losses. Depending on the slag/metal ratio and tapping temperatures, the slag thermal requirements in these processes can vary from 10-90% of the output energy (Barati, Esfahani, and Utigard, 2011). Due to the high volumes of iron and steel production, the production of ferrous metals accounts for over 90% of the available energy associated with slags. Slags also account for a significant amount of energy output from the energy-intensive production processes of ferroalloys and other commodities. Barati, Esfahani, and Utigard (2011) summarized the historical global production of selected metallurgical slags, and the estimated energy content associated with these materials (Table IX).

Since the molten slags are tapped from smelting and refining furnaces at high temperatures, they contain a lot of sensible energy that can be harnessed. In order to increase sustainability in the high-temperature extraction of metals, several researchers have focused on the recovery of energy from the dry granulation of these molten materials (Bisio, 1997; Barati, Esfahani, and Utigard, 2011; Zhang et al., 2013; Liu et al., 2015, 2016; Rycroft, 2014). To date, several energy recovery processes have been investigated and developed, based primarily on the physical and chemical processing of these materials. Typical physical energy recovery processes include (Bisio, 1997; Rycroft, 2014; Barati, Esfahani, and Utigard, 2011):

(1) Dry granulation processes, wherein liquid slag is continuously broken down into droplets and the heat is recovered, firstly by the solidification of the droplets passing through a dry cooling stage, followed by the further recovery from the solid granules as they cool to ambient temperatures.

(2) Granulation by air blast, where a stream of liquid is broken down into droplets by high-pressure air jets. The air granulation process allows for the concomitant rapid cooling of slag and heat recovery from the air blast via a heat exchanger.

(3) Granulation by solid slag impingement, where the liquid stream is broken up into particles by a stream of recycled solid slag particles, and the energy is transferred to air for steam generation by convection in a multi-step fluidized bed.

(4) Centrifugal granulation, encompassing processes such as the rotating drum process, rotary cup atomizer, spinning disc atomizer, and rotating cylinder atomizer. The processes highlighted so far integrate the physical phenomena of slag solidification using centrifugal force or impinging jets, and heat transfer using media such air and steam in fluidized bed and/or countercurrent heat exchangers.

Extensive research has also been conducted on the recovery of sensible energy in liquid slags using chemical methods (Maruoka et al., 2004; Purwanto and Akiyama, 2004; Barati, Esfahani, and Utigard, 2011; Duan et al., 2014a, 2014b; Sun et al., 2015a, 2015b, 2016b; Duan, Yu, and Wang, 2017; Sun et al., 2017). Several researchers have proposed the use of molten slags in the gasification of coal and biomass to produce synthetic fuels and/or using the waste heat in liquid slags in methane-steam reforming reactions. In this case, it is proposed that the hot slag not only acts as a thermal medium but also as a catalyst for the gasification and reforming reactions. Using blast furnace slag waste heat as a thermal agent, Duan et al. (2014a) developed a technological and exergy analysis model based on gasifier system using coal/waste gas gasification. The findings indicated a recovery efficiency of 85% for the blast furnace slag waste heat, and an 80% conversion of the CO2 to syngas in the waste gas. In similar studies, Duan et al. (2014b) conducted a thermodynamic analysis of steam gasification of coal to produce hydrogen-rich gas using blast furnace slags as the heat carrier. The findings indicated that: (1) the amount of hydrogen at a steam-to-coal ratio of 2 increased until peak temperatures of 450-550°C, (2) increasing the pressure from 0.1 MPa to 10 MPa at 775°C adversely affected the yield of hydrogen, and (3) an increase in slag basicity had a positive effect on the yield of hydrogen, particularly at low temperatures.

Sun et al. (2015a) also proposed a process to recover waste heat and iron from high-temperature (1450-1650°C) steelmaking slags by integrating the gasification of coal with the treatment of steel slag. The proposed process resulted not only in an improved yield of syngas, but also enabled the potential recovery of iron units by magnetic separation due to the oxidation of FeO to Fe₃O₄ in the slag. Sun et al. (2015c) investigated the kinetics of low-temperature (250-500°C) gasification of biomass combined with heat recovery from slag. Based on the catalytic effect of slags, the findings indicate that the addition of slag increased the production of syngas in the temperature range 425-500°C. In earlier studies, Maruoka et al. (2004) demonstrated significant financial benefits of recovering waste heat in the steelmaking industry from the CH4-H2O reforming process using a chemical recuperator. Similarly, Purwanto and Akiyama (2006) studied the production of hydrogen by introducing a CH4-H2O gas mixture into a packed bed of steelmaking slag. Based on the conditions investigated (700-1000°C, constant flow rate, and atmospheric pressure), the findings indicate that the slag acted not only as thermal medium but also as a catalyst to the reforming reactions (Purwanto and Akiyama, 2006).

The findings highlighted so far present a strong business case for further optimizing the processes to recover the sensible energy from molten metallurgical slags. The kinetic models developed in the various studies also demonstrate the multiple roles of metallurgical slags in coal/biomass gasification and methane-steam reforming processes; that is, not only as a thermal carrier but also as a catalyst and reactant (Maruoka et al., 2004; Purwanto and Akiyama, 2004; Duan et al., 2014a, 2004b; Sun et al., 2015a, 3025b, 2015c, 2016b, 2017; Duan, Yu, and Wang, 2017).

Synthesis of functional materials from solidified slags- Metallurgical slags have a great potential as feedstocks in the production of novel functional materials such as sintered glass-ceramics (Rawlings, 1994; Gorokhovsky et al., 2002; Rawlings, Wu, and Boccaccini, 2006; Zanotto, 2010; Ponsont and Bernado, 2013; Bai et al., 2016; Liu, Zong, and Hou, 2016), porous ceramic materials (Tanaka, Yoshikawa and Suzuki, 2009; Nikitin, Kol'tsova, and Beliy, 2013; Suzuki, Tanaka, and Yamasaki, 2014; Sun and Guo, 2015), ceramic bricks (Nel and Täuber, 1970; Shih, White, and Leckei, 2006; Quijorma, San-Miguel, and Andrés, 2011; Karayannis et al., 2017), functional zeolites for waste water treatment (Kuwahara et al., 2010; Chen et al., 2012; Li et al, 2016), and refractory materials (Gu et al., 2018), among other applications. Of particular interest in the context of this paper is the synthesis of functional glass-ceramics and zeolites from metallurgical slags.

Glass-ceramics are fine-grained polycrystalline materials formed when glasses of suitable composition are heat treated to undergo controlled crystallization to the lower energy crystalline state (Rawlings, 1994; Bai et al, 2016). To date, sintered functional glass-ceramics have attracted considerable attention as low-cost alternatives to conventional glass-ceramic manufacturing (Ponsot et al., 2015). These materials have novel applications in a wide variety of industries, ranging from catalysis to thermal insulation, lightweight structural support, cooking ware, ceramic tiles, and military applications (Rawlings, Wu, and Boccaccini, 2006; Zanotto, 2010; Ponsot et al, 2015). In that regard, the manufacture of sintered glass-ceramics with functional properties such as catalytic activity, optical and electrical properties, and desirable mechanical properties, using CaO-Al2O3-SiO2-MgO-FeOx- based metallurgical slags has also drawn considerable attention in recent years (Gorokhovsky et al., 2002; Chinnam et al., 2013; Ponsot and Bernado, 2013; Bai et al., 2016; Liu, Zong and Hou, 2016). Liu, Zong and Hou (2016) investigated the effect of MgO/Al2O3 addition on crystallization behaviour, microstructure, mechanical properties, and chromium solidification performance of glass-ceramics synthesized using EAF slag. Their findings indicate that MgO/Al₂O₃ ratios of 1:1 and 1:2 resulted in improved mechanical and chromium fixation properties. Ponsot and Bernado (2013) investigated the manufacture of self-glazed glass-ceramic foams from iron-rich metallurgical slags and recycled glass. Homogenous foaming and specific mechanical properties comparable to those of conventional porcelain stoneware sintered above 1100°C were obtained. Bai et al. (2016) investigated the synthesis of glass-ceramics using highcarbon ferrochromium (HCFeCr) slag and waste glass. In addition to microstructural and mechanical properties comparable to other slag-based glass-ceramics, the findings demonstrated the evolution of stable (Mg,Fe)₂SiO₄, MgAl₂O₄, Mg(Al,Cr)₂O₄, and Cr₂O₃ phases which are desirable in reducing toxicity of the HCFeCr slags (Bai et al., 2016). As demonstrated by the various studies, the incorporation of metallurgical slags into functional glass-ceramics not only increases the low-cost recyclability and re-use opportunities of the slags, but also results in the formation of stable phases with low TCLPs.

Synthesis of functional zeolites from slags-Zeolites are crystalline porous solids with intricate pore and channel systems in the molecular sieve range of 0.33 nm (Li et al., 2016). Basically, zeolites are crystalline aluminosilicates, with group I or group II elements as counter-ions (Simate et al., 2016). The structure of zeolite consists of a framework of [SiO₄]4- and [AlO₄]5- tetrahedra linked to each other at the corners by sharing oxygen atoms (Simate et al., 2016; Li et al., 2016; Mallapur and Oubagaranadin, 2017). In general, these materials are commonly used as commercial absorbents and catalysts (Simate et al., 2016; Li et al., 2016; Mallapur and Oubagaranadin, 2017). Functional zeolites produced by the hydrothermal treatment of silicate-rich slags have widespread applications in waste water treatment and in the remediation of AMD (Kuwahara et al., 2010; Lin et al, 2016; Simate et al., 2016). For example, Li et al., (2016) investigated the synthesis of sodium aluminate (6Na₂O- 6Al₂O₃- 12SiO₂) and sodalite (4Na₂O- 3Al₂O₃- 6SiO₂) zeolites using Ti-bearing EAF slag as a precursor. The performance of the crystalline zeolites, synthesized based on the design parameters such as molar ratios of SiO₂/Al₂O₃ (ratio 2:1) and H₂O/Na₂O (ratio 100:1), and hydrothermal temperature (140°C) and time (3 hours), was evaluated based on the removal of Cu2+ ions from aqueous solutions. In other studies, Kuwahara et al. (2010) proposed an acid leaching and NaOH precipitation method to synthesise hydrotalcite-like compounds (Mg₃Al(OH)₈Cl- 2H₂O and MgaAl(OH)₁₆CO₃- 4H₂O) and zeolites from blast furnace slags. Based on the absorptive capacity of the phosphate ions, the comparative performance of synthesised hydrotalcite and zeolite materials was significantly higher at 40 mg and 333 mg of phosphorus per gram, respectively, compared to 1.5 mg of phosphorus per gram for raw slag. Due to the novel heavy-metal absorption properties and the environmental challenges associated with heavy-metals-laden waste water and AMD, the synthesis of functional zeolites using metallurgical slags as precursors thus provides low-cost opportunities for the utilization of these materials.

Recycling and recovery of value metals from post-consumer wastes

As highlighted in Table I, post-consumer waste refers to different types of waste generated by households or commercial, industrial, and institutional facilities in their role as end-uses of the products, which can no longer be used for their initial purposes. The increasing global population, coupled with advances in technology and increased consumption of natural resources, has led to dramatic increases in the flow of these anthropogenic materials (Johnson et al., 2007; Dodson et al., 2012; Jin, Kim, and Guillaume, 2016; Park et al., 2017). As a result, post-consumer wastes present environmental challenges in modern society as any leftover and/or obsolete products are often discarded. Typically, these anthropogenic materials are disposed in landfills, thereby creating environmental challenges (Birloaga et al., 2013; Corder, Golev, and Guirco, 2015; Ongondo, Williams, and Whitlock, 2015; Ndlovu, Simate, and Matinde, 2017). On the other hand, increasing the recovery of metals from post-consumer products in anthropogenic spaces has intrinsic business, socioeconomic, and technological advantages (Hagelüken et al., 2016; Sun et al., 2016). In other words, considering these materials as anthropogenic sources of secondary resources that can be recycled and re-used can result in reduced environmental damage while supporting sustainable development goals through the efficient use of resources (Ongondo, Williams, and Whitlock, 2015; Corder, Golev, and Guirco, 2015; Ndlovu, Simate, and Matinde, 2017).

The recycling and re-use of post-consumer waste provides incentives to shift away from the traditional linear use of resources to a closed-loop, cyclical utilization of resources that allows for maximum recovery of resources from waste (Cossu, 2013; Ongondo, Williams, and Whitlock, 2015; Sun et al., 2015d, 2016). Of particular interest in the context of this paper is the recovery of precious metals from spent autocatalysts and electronic waste (e-waste). Spent autocatalysts and e-waste contain significant amounts of high-value metals such as Pt, Rh, Pd, Cu, Ni, and Au, among others. To date, extensive research based on pyro-metallurgical and hydrometallurgical processing, or combinations of both, has been conducted in order to recover precious and other valuable metal elements from these types of wastes (Johnson et al., 2007; Cui and Zhang, 2008; Birloaga et al., 2013; Binnemans et al., 2013; Itoh, 2014; Yang, Zhang, and Fang, 2014; Akcil et al., 2015; Sun et al., 2015c; Corder, Golev, and Guirco, 2015; Ongondo, Williams, and Whitlock, 2015; Jadhav and Hocheng, 2015; Jin, Kim, and Guillaume, 2016; Sun et al., 2015d, 2016; Lu and Xu, 2016; Hagelüken et al., 2016; Ndlovu, Simate, and Matinde, 2017; Wang et al., 2017b).

Pyrometallurgical processes involve heating the waste materials at high temperatures to recover the valuable metals. Typical unit processes such as plasma smelting, conventional submerged arc, top submerged lance, chlorination, and volatilization, among others, have widely been adopted in the processing of these wastes (Cui and Zhang, 2008; Jadhav and Hocheng, 2015; Wang et al., 2017b). Despite the fast kinetics and favourable thermodynamics as a result of high-temperature conditions, pyrometallurgical processes have several inherent constraints such as high energy footprints and the need for intricate off-gas cleaning systems (Tuncuk et al., 2012; Jadhav and Hocheng, 2015). Due to the presence of polymers, ceramics, and halogenated flame retardants in some of these waste streams, the formation of highly toxic volatile compounds such as polychlorinated dibenzo-p-dioxins and dibenzol furans (PCDD/Fs), polybrominated diphenyl ethers (PBDEs), and polycyclic aromatics, among others, is also a major challenge in most of these processes (Johnson et al., 2007; Tuncuk et al., 2012; Jadhav and Hocheng, 2015; Lu and Xu, 2016; Cui and Anderson, 2016). As a result of the structural challenges associated with conventional pyrometallurgical processes, hydrometallurgical processes have been developed as alternatives in order to improve the economics of extraction of valuable metals from spent autocatalysts and e-wastes.

To date, extensive research has been conducted to recover precious metals from spent autocatalysts and e-waste using both conventional aqueous and emerging non-aqueous leaching and chelating media (Tuncuk et al., 2012; Birloaga et al., 2013; Binnemans et al., 2013; Itoh, 2014; Park et al., 2014; Yang et al., 2014; Sun et al., 2015d; Jadhav and Hocheng, 2015; Corder, Golev, and Guirco, 2015; Ongondo, Williams, and Whitlock, 2015; Sun et al., 2015e; 2016; Lu and Xu, 2016; Cui and Anderson, 2016; Ndlovu, Simate, and Matinde, 2017; Wang et al., 2017b). So far, several processes have been developed to recover metals using acidic media (Syed, 2006; Park and Fray, 2009; Yang, Zhang, and Fang, 2014; Jadhav and Hocheng, 2015; Cui and Anderson, 2016), complexing agents such as cyanide, halides, thiosulphate, and thourea (Jadhav and Hocheng, 2015; Cui and Anderson, 2016; Akcil et al., 2015; Lu and Xu, 2016) and biohydrometallurgy (Cui and Zhang, 2008). Recently, attention has focused on the recovery of precious elements from spent autocatalysts and e-waste using ionic liquids (Binnemans et al., 2013; Sun et al., 2015d; Park et al., 2014; Rzelewska et al., 2017). As discussed earlier, ionic liquids are low-temperature molten salts comprising cations and organic/inorganic anions, and are increasingly being investigated for the extraction of metals due to their desired properties such as non-volatility, low toxicity, good ionic conductivity, and wide electrochemical potential window (Park et al., 2014). The recovery of valuable metals from spent autocatalysts and e-waste using ionic liquids provides several advantages such as high selectivity, ability to recover the valuable metals in their pure state, and the ability to detoxify and produce environmentally benign residues.

Although research into the recycling of spent autocatalysts and e-waste for metal recovery and the generation of other valuable products has been widespread, large scale production plants dedicated solely to the processing of these wastes material are still to be universally adopted. This is mainly due to the fact that metal recycling plants are capital-intensive and expensive to set up. Furthermore, the success of these interventions is also predicated on a consistent and uniform supply of waste materials, thereby competing with similar products from primary raw materials (Johnson et al., 2007; Dodson et al., 2012; Corder, Golev, and Guirco, 2015; Sun etal, 2016). As a result, the major driver for the success of recycling initiatives so far has been to blend and incorporate the recycled materials with other materials into the existing primary and/or secondary processes for metal extraction.



Integration with engineering education

The previous sections discussed in detail the technical aspects of recycling and re-use of mining and metallurgical wastes. As discussed earlier, the recycling and re-use of these waste materials is important from an economic, environmental, and industrial point of view. Therefore, in order to maximize the benefits, new systems thinking approaches are crucial to leverage on the circularity and recyclability of some of these materials. For example, the sustainability of the mining and metallurgical industries can be greatly enhanced by incorporating an environmentally friendly way of treating the process residues and/or byproducts generated in the extraction of metals and mineral commodities. In other words, improving the circularity of the various waste materials requires multidisciplinary recycling and re-use initiatives that take into account the initial stages of developing a new material and/or process (Person, 1971; Pech-Canul and Kongoli, 2016). Based on the aforementioned discussions, several researchers have highlighted the early career education and training of design and process engineers as essential components in the dynamics of environmental protection and sustainable consumption of natural resources (Bishop, 2000; Gutierrez-Martin and Hüttenhain, 2003; Boyle, 2004; Hering, 2012; Pech-Canul and Kongoli, 2016; UNESCO, 2010. 2017).

To date, the integration of aspects of sustainability into the engineering curriculum has broadly been driven by the need to address complex societal and socio-economic problems arising from the negative externalities of industrial processes and products (Bishop, 2000; Gutierrez-Martin and Hüttenhain, 2003; Boyle, 2004; Kastenhofer, Lansu, and van Dam-Mieras, 2010; Pech-Canul and Kongoli, 2016; UNESCO, 2017). Obviously, the protracted industrial growth experienced in the 21st century has not only led to the unsustainable use and consumption of natural resources, but has also resulted in unstainable levels of environmental degradation and pollution (Kastenhofer, Lansu, and van Dam-Mieras, 2010). To a greater extent, the emerging paradigms on environmental stewardship have ignited a debate on the role of engineering education in preparing graduates' interdisciplinary and transdisciplinary ethos of sustainable development (Tilbury, 1995; ABET, 2009; Kastenhofer, Lansu, and van Dam-Mieras, 2010; Vanderburg, 1999; Guerra, 2017; UNESCO, 2010; 2017). For example, UNESCO (2017) explicitly proposed the need for responsive education systems based on pedagogies that empower learners and include sustainability principles. In particular, UNESCO (2017) clearly stipulates the need for institutions to initiate and disseminate engineering curricula that integrate sustainability and sustainable development.

In view of these emerging paradigms in engineering education, extensive debate is now centred on the holistic integration of these issues into the broad engineering teaching and learning space. In principle, the various education systems globally have converged on explicit sets of statements and principles on learning outcomes, desired graduate attributes, and professional competencies relevant to sustainable development. Possible approaches include facilitating active learning and development of higher order cognitive skills on sustainability by:

(1) Incorporating environmental aspects in the design tasks of the various courses covering the unit processes producing the waste materials (Vanderburg, 1999; Boks and Diehl, 2006; Zimmerman and Anastas, 2009; Zoller, 2013)

(2) Research-based teaching in order to develop cognitive enquiry skills through experiential learning (Kolb, 1984; Grimson, 2002; Healy, 2005; Zoller, 2013; Hedden et al, 2017)

(3) Alignment of individual academics' agency into the teaching and learning of sustainability principles (Cebrián and Junyent, 2015; Colombo and Mattarolo, 2017; Hedden et al, 2017).



Conclusion

The increasing global population, coupled with advances in technology and increased consumption of resources, has led to a dramatic increase in the flow of anthropogenic materials. However, the linear model of resources consumption obviously results in high levels of waste from the mining, metallurgical, and industrial processing of virgin raw materials. Inasmuch as the production of mining and metallurgical wastes is inevitable in the production of industrial materials, waste management practices to date have focused on how to manage the way in which the waste is generated and disposed of. However, the traditional approach to managing mining and metallurgical waste is not only unsustainable, but also discounts the circularity of most of these anthropogenic materials. Based on the emerging paradigm of a circular economy model that mandates the reduction, recycling, and re-use of wastes, this paper provided a critical review of current and emerging research on the recycling and re-use of mining and metallurgical wastes. Firstly, the paper categorized the various types of wastes in the mining and metallurgical industries and introduced some of the legislative framework governing these types of wastes. Secondly, the paper highlighted the ongoing research and emerging trends in the recycling and re-use of selected mining, metallurgical and post-consumer wastes. With a view of igniting debate, the paper provided a brief overview of the converging principles on the integration of the key aspects of sustainability into the engineering education curriculum.
