ML BowkerI; JB MolwantwaII; J GilfillanIII; R DorringtonIII; R KirbyIV; PD RoseIII, *
IEnvironmental Biotechnology Research Institute, Rhodes University, Grahamstown, South Africa
IIDigby Wells Associates, Johannesburg, South Africa
IIIDepartment of Biochemistry, Microbiology and Biotechnology, Rhodes University, Grahamstown, South Africa
IVDepartment of Life Sciences and Institute of Genome Science, National Yang-Ming University, Taiwan
Floating biofilms occur in thin layers of between 50 µm and 500 µm on the surface of certain organic, sulphidic aquatic environments and, at times, may only be several cells deep. While these structures may be important in terms of energy flow pathways, and possibly also in wastewater treatment operations, little is known about their structural/functional properties. This is due, in part, to their flimsy nature but also to methodological constraints related to their sampling and manipulation. We have investigated floating sulphur biofilms that appear as white layers on the surface of anoxic sulphidic organic wastewaters and describe here the development of a novel gradient tube method for investigating these systems. This approach enables testing of the hypothesis that these floating sulphur biofilms are complex well-differentiated structures rather than disordered dispersions of microbial biomass as has been previously thought. Furthermore, if the former is correct, they would seem to resemble the structure and functionality of comparable complex bioflms that are attached to solid substrates. The gradient tube method involves the establishment of apposing gradients of sulphide and oxygen that are expanded across a tube of agarose 10 cm in length; this simulates the oxic/anoxic interface that occurs over only several micrometres in the natural biofilm system. A plug of sulphide-enriched agarose is first placed in the base of the tube. Samples of the floating sulphur biofilm are then mixed into agarose growth medium and, before it sets, this is overlaid on top of the plug. The tubes are then open capped and incubated. A variety of different microbial populations may thus become established in the separate physiological niches that are set up in this way within the gradient tube. The populations may be quite robustly sampled by extruding and then sectioning the agarose plug. This expansion of the biofilm enables more detailed molecular phylogenetic studies of the populations found in the various niches within the biofilm and also measurement of physico-chemical parameters within the system.
Keywords: gradient tube method, floating biofilms, floating sulphur biofilms, microbial ecology, sulphur biotechnology, acid mine drainage wastewaters
The examination of the population structure of biofilms, and particularly attempts to correlate structure and function in a way that rigorously represents the actual situation within the biofilm, remains an exacting methodological task. The requirements are particularly acute when studying floating biofilms that occur as layers of around 50 µm to 500 µm on water surfaces in some aquatic environments and are, during the early stages of formation, possibly only several cells deep (Gilfillan, 2000).
We have examined floating sulphur biofilms that form at the oxic/anoxic interface on the surface of tannery evaporation ponds (Fig. 1A), which receive high organic and sulphide loads (Gilfillan, 2000; Bowker, 2002). Similar structures have been observed in other sulphidic aquatic environments such as brackish and salt marshes and these biofilms may be an important component in total energy flow pathways in these systems (Whitcomb, 1989). While it has been suggested that they are simple accumulations of microbial growth, we have found that these floating sulphur biofilms are composed of both obligate aerobic and anaerobic populations, including sulphide oxidising bacteria, which suggests rather that they are complex well-differentiated structures that are comparable to stratified biofilm growth found on solid substrates (Monds and O'Toole, 2009). While scanning electron microscopy of the floating sulphur biofilm (Fig. 2) clearly shows that the microbial population is embedded in an exopolysaccharide matrix that includes the production of ortho-rhombic crystals of elemental sulphur (Bowker, 2002), the possible functional differentiation of the population structure within the biofilm has remained unde-scribed up to the present.
The possible application of the floating sulphur biofilm system for sulphur recovery in the biological treatment of acid mine drainage wastewaters has been proposed and bioprocess development studies have been reported by Gilfillan (2000), Bowker (2002), Bowker et al. (2002), Molwantwa et al. (2007), Molwantwa (2008), Rose and Rein (2007), Molwantwa et al. (2009), Mack et al. (2009) and Van Hille et al. (2011). However, uncertainty about a biological role, if any, for sulphur formation in these films, the possible presence of differentiation within the microbial population structure and, importantly, the possibility of physiological functional differentiation within this type of system has remained unresolved. The main reasons for this are methodological constraints related to sampling and experimental manipulation of these thin and fragile structures. More clarity on the structural/functional attributes of these floating biofilm systems could be important to the future engineering of their use in wastewater treatment applications. We report here the development of a gradient tube method for expanding the spatial distribution of the various physiologically functional microbial groups that grow actively within these bio-films. This approach allows the effective sampling of the different components found within the biofilm population structure.
MATERIALS AND METHODS

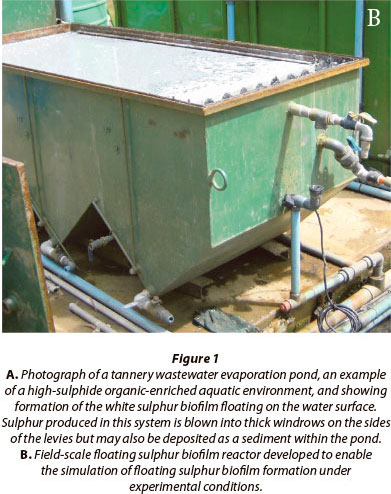

Actively growing floating sulphur biofilm was sampled from both tannery ponding systems (Fig. 1A), and a laboratory reactor (Fig.1B) that was fed organic sulphide-enriched water generated in a degrading packed bed reactor as described by Molwantwa et al. (2007). Aliquots of these biofilms (500µℓ) were mixed with 500 µℓ of glycerol and frozen at -70oC until used.
Gradient tubes were prepared by aseptically placing, at the bottom of a sterile 15 mℓ glass test tube, a 5 mℓ molten agarose plug containing 1% low-melt agarose, 0.5 g/ℓ sodium sulphide in lactate medium (1.75 mℓ 60% sodium lactate, 1 g MgSO4·7H2O, 0.5g yeast extract, 0.25g K2HPO4, 0.05 g CaCl2·6H2O, 0.5 g NH4Cl; made up in 250 mℓ with ddd H2O and sterilised). After the sulphide plug had set, an overlay of the same lactate medium, but without sodium sulphide, was prepared, to which the biofilm sample was added and thoroughly mixed; the biofilm inoculum was added while the medium was still liquid but as cool as possible. Then 10 mℓ of the mixture was pipetted aseptically onto the surface of the solid agarose sulphide plug while avoiding the introduction of air bubbles. The tubes were open capped (agarose surface having access to air) and incubated in the dark at 20oC for 7 days (Fig. 3).
After incubation had been completed, tubes were swabbed with ethanol, etched with a diamond glass cutter and then broken cleanly at the bottom. The agarose plug was then extruded onto an aseptic surface in a laminar flow hood. The plug was sliced into 5 mm lengths and each sample placed into a separate sterile Eppendorf tube that contained 1 ml sterile Tris-EDTA buffer (0.01 M Tris, 0.05M EDTA). Samples were heated to 50oC, vortexed, and (with the exception of those to be used in sulphide analyses) were stored at 4oC overnight to facilitate diffusion. They were then analysed to measure the levels of sulphate, sulphur and total organic carbon (TOC). Samples for molecular phylogenetic analysis (results not reported here) were obtained prior to the heating step.
For the sulphide analysis, 20 µℓ samples were taken immediately from each of the 0.5 g sections and added to 100 µℓ of zinc acetate and made up to 5 mℓ with ddd H2O. The assay was performed as follows: the samples were vortexed briefly and 500 µℓ of ferric chloride solution (8 g FeCl3 in 500 mℓ 6 M HCL) and 500 µℓ amide-sulphuric acid solution (2g N-N dimethyl-p-phenylene diamine dihydrochloride in 500 ml 6 M H2SO4) were added. The samples were allowed to stand at room temperature for 1 h and then the absorbance was read on a Shimadzu UV-160A UV-visible recording spectrophotometer at 670 nm.
For sulphur analysis 200 µℓ of each 0.5 g sample was placed in an Eppendorf tube and microfuged at 13 000 r/min for 10 min. The supernatant was discarded and the pellet re-suspended in 100 µℓ of high performance liquid chromatography (HPLC) grade acetone. The sample was allowed to stand for 1 h and then filtered through a 0.45 um nylon membrane to remove any particulate matter. The samples were analysed by HPLC using a Phenomenex LUNA 5µ C18 (2) size 150 x 4.6 mm column, mobile phase 95:5 methanol:water, run at a flow rate of 2 mℓ/min and using a Waters 484 Absorbance Detector.
Sulphate analysis was performed by HPLC. Samples were diluted 1 in 10 and then 1 ml of this sample was filtered through a 0.45 µm nylon filter followed by a Waters C18 solid-phase extraction cartridge. A Hamilton PRP-X100 10 um 150 x 4.1 mm column with a para-hydroxybenzoic acid/methanol (5.52 g:250 mℓ) mobile phase was used at a flow rate of 2 mℓ/ min with a Waters 430 conductivity detector.
For total organic carbon (TOC) analysis, a ROSEMOUNT Dohrmann Total Organic Carbon Analyzer DC-180 was used. All reagents were supplied by Merck.
RESULTS AND DISCUSSSION
Figure 3 illustrates the principle of the gradient tube method whereby apposing gradients, in reducing concentrations, are established, and where sulphide migrates from the bottom plug upwards and oxygen migrates from the top of the tube downwards. This is designed to replicate conditions at the oxic/ anoxic interface of the water surface in the sulphidic aquatic environments being investigated, where oxygen migrating from the air into the water column meets the underlying sulphide layer. It is in the presence of this type of gradient that the appearance of the floating sulphur biofilm structures is observed. In the tube method, gradients of high sulphide/low oxygen and low sulphide/high oxygen are established over a 10 cm length of the agarose plug; this provides a range of niches for the growth of any physiologically distinct microbial populations that are present in the original biofilm. These would possibly grow and be discernible as separate zones of population dominance within the tube, which has now been expanded across the 10 cm length of the agarose column, rather than the 50 µm to 500 µm of the original biofilm.

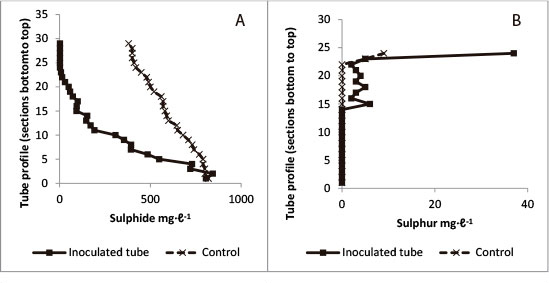

The results detailed in Fig. 4 report analyses for sulphide, sulphur, sulphate and TOC for the 5 mm agarose column cut sections, and compare various biofilm inoculated samples with uninoculated controls. These results are plotted as depth profiles on the y-axis and report the results within the agarose column from the bottom of the tube upwards, which occurs against a background of increasing oxygen and decreasing sulphide concentrations.
Comparison of controls against experimental results reported in Fig. 4 shows that a sulphide gradient is established along the length of the agarose column as anticipated. In the biofilminoculated sample sulphide removal was found to be active across about 80% of the column length. Figures 4B and 4C report the sulphur and sulphate concentration profiles, respectively. These results indicate the presence of incomplete oxidation of sulphide with a predominant conversion to sulphur, rather than complete oxidation to sulphate. These findings indicate a careful poising of the redox environment (Rein 2002) which, if unregulated in some way, would expect to show the complete oxidation of sulphide in the upper oxic zones of the tubes. If a metabolic energy input is required to maintain the redox poising of the system, some TOC would be expected to be consumed in the process, and this is what was found in Fig. 4D, where up to 30% of TOC was removed in the upper layer of the tubes.
Figures 5B and 5C show the appearance of sulphur bands in the tubes after 1 day and 7 days of growth, respectively. Figure 6 shows scanning electron micrographs of samples from the top, middle and bottom of the gradient tubes and indicates differentiation of the microbial populations within separate bands. The upper layers consist mainly of cocci, while mainly bacilli and filamentous microorganisms occur in the middle and lower layers. Molecular phylogenetic analyses of the actual population structures established by this method were undertaken and are to be reported elsewhere.
This method can be used successfully to investigate many aspects of the complex population structure of floating sulphur biofilms. However, there are limitations that need to be taken into account. The most important relates to a long-standing problem in microbial ecology studies, highlighted by Amann et al. (1995) and others, that only those groups present in the biofilm that are able to grow under the conditions established in the gradient tube experimental system will be easily identified and therefore studied. These are the organisms used to present any descriptive account of the system. Other organisms present in the biofilm that are unable to grown in the medium present in the gradient tube will go unnoticed and this may bias any conclusions drawn.
The gradient tube method is a novel application that enables the study of microbial population structure and function in thin biofilm layers and does this by expanding the size of sample over which experimental investigation is possible.
The results show that gradients are effectively established in this system with respect to sulphide, sulphur and TOC and to a lesser extent also sulphate.
Organisms of different morphological types were observed at different points within the gradients that were established along the tube length.
Follow-up molecular phylogenetic studies of the microbial populations in floating sulphur biofilms, and correlation of these results with biofilm structure, as determined by microprobe measurements, have been undertaken and are to be reported elsewhere.
The gradient tube method provides an instrument that may be used in conjunction with other methodological approaches to throw light on the microbial ecology of floating sulphur biofilm systems. A better understanding of these structures may facilitate their development in bioprocess applications including acid mine drainage wastewater treatment.
